Hot Air Drying Mode smt cleaning equipment , Stencil Cleaner Machine with 7-15 Cycle Time

China Hot Air Drying Mode smt cleaning equipment , Stencil Cleaner Machine with 7-15 Cycle Time supplier
Hot Air Drying Mode smt cleaning equipment , Stencil Cleaner Machine with 7-15 Cycle Time supplier Hot Air Drying Mode smt cleaning equipment , Stencil Cleaner Machine with 7-15 Cycle Time supplier Hot Air Drying Mode smt cleaning equipment , Stencil Cleaner Machine with 7-15 Cycle Time supplier

Large Image :  Hot Air Drying Mode smt cleaning equipment , Stencil Cleaner Machine with 7-15 Cycle Time

Product Details:

Place of Origin: China
Brand Name: ChuangWei
Certification: CE
Model Number: CW-800

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 10 days
Supply Ability: 100 sets/month
Contact Now
Detailed Product Description
Max Stencil Size: 800*750*40mm Liquid: 20-40L
Air Consumption: 200-600L/min Name: Pneumatic Stencil Cleaner

Hot Air Drying Mode SMT Stencil Cleaner Machine with 7-15 Cycle Time



Machine description:

CW-800 is a high quality electric stencil cleaning machine which is used to clean solder paste/red glue stencil, misprint PCB and squeegee. By using water-based chemicals, the stencial can be clean, resin and dry by just pushing one button.



Machine Feature:

  1. High quality electrical pump. High pressure wash, resin, dry process.
  2. Total SUS 304 structure, resist acid and alkali corrosion, strong, more than 10 years life time.
  3. One key operation, wash, resin and dry process complete automatically according to pre-setting procedure.
  4. Can clean SMT stencil, sikkscreen, print jig, squeegee, big PCBA, misprint PCB
  5. Completey closed spray developing process, make cleaning workshop clean and dry
  6. Super electrical and pneumatic parts from Germany, USA and Japan to ensure stability and high quality of machine.
  7. Modular design, easy maintenance
  8. Touch panel interface, quick cleaning parameters setting: chemical temperature/wash time, resin time/temperature, and dry time/temperature etc.



Machine Specification:

Item Parameter
Max stencial size 800*750*40(mm)
Chemical tank 50*2pcs
Wash time 2-5min
Resin time 2-5min
Dry time 3-5min
Resin cycle 1-99
Clean Chemical Water-based chemicals
Resin DI water Open lope DI water or close loop chemial spray
Dry mode Hot air dry
Liquid heat temp. 0-60℃
Dry temp. 0-90℃
Wash heat power 9KW
Resin heat power 9KW
Hot air power 6KW
Clean/resin filter 0.45um
Power Suppy 380V, 33KW
Machine size 1580*1180*1860mm

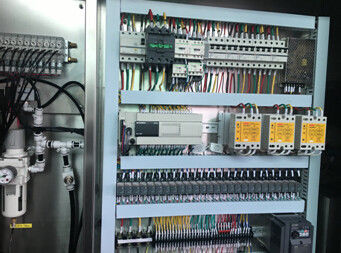

Machine Details:

Hot Air Drying Mode smt cleaning equipment , Stencil Cleaner Machine with 7-15 Cycle Time
