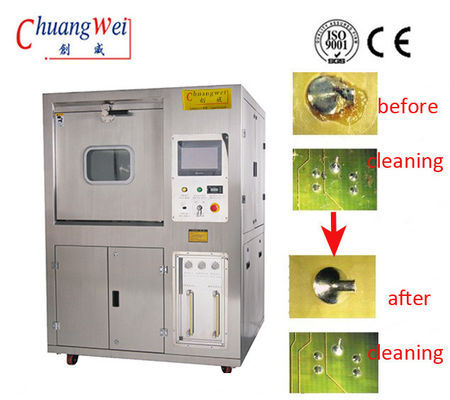

Circuit Board PCBA Washing Machine PCBA Cleaning Equipment 380V Power Supply

Circuit Board PCBA Washing Machine PCBA Cleaning Equipment 380V Power Supply
Circuit Board PCBA Washing Machine PCBA Cleaning Equipment 380V Power Supply Circuit Board PCBA Washing Machine PCBA Cleaning Equipment 380V Power Supply

Large Image :  Circuit Board PCBA Washing Machine PCBA Cleaning Equipment 380V Power Supply

Product Details:

Place of Origin: China
Brand Name: Chuangwei
Certification: CE
Model Number: CW-5600

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 10 days
Supply Ability: 100 sets/month
Detailed Product Description
Max Stencil Size: 420*420*200(mm) Clean Time: 3-6 Minutes
Dry Time: 4-6 Minutes Name: PCBA Washing Machine
High Light:

pallet washer machines

,

pcb cleaning system

Circuit Board PCBA Washing Machine PCBA Cleaning Equipment 380V Power Supply​ Description:



This machine is an integration of high-end cleaning machine,with energy-saving environmental protection, bulk cleaning, it can complete the cleaning, rinsing, drying function automatically .

Mainly used for aviation, aerospace, medical, new energy, automotive electronics and other industries high-end products, multi-species, small and medium-sized PCBA board cleaning ,it can effectively clean the SMT/THT PCBA after welding the surface of the residual rosin flux, water-soluble flux, no-clean flux / solder paste and other organic and inorganic pollutants.

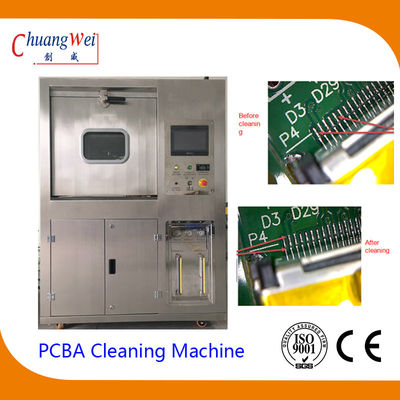

Circuit Board PCBA Washing Machine PCBA Cleaning Equipment 380V Power Supply 0



Machine Feature:

  1. Total SUS304 stainless steel sructure, strong acid and alkaline resistance, durable
  2. 2-layers cleaning baskets: big 2 layers: 645(L)*560(W)*200(H)*2
  3. Easy Chinese/English operation interface, quick and easy cleaning process parameters setting, precedures can be sored and called out, different password can be set according to different management authorization.
  4. Standard cleaning chemicals can be added into machine manually or using dosing pump to add pure chemicals and DI water autmatically according to different ratio(5%-20%)
  5. Cleaning chemicals heat system, can heat to the suitable temperature, make cleaning efficient
  6. Cleaning all kinds of clux and solder paste
  7. Real time electrical conductivity monitor system to monitor cleaning result, can be set to 10-400us.
  8. High standard cleanness, ion contamination is fully consistent with IPC-610D I level standard
  9. Cleaning chemicals repeated use in the machine, it can reduce 50% chemical cost
  10. Built-in resin pipe out filtration system to effective filtrate all kinds of impurity substance likke COD, BOD, PH…etc



Machine Specification:



Item Parameter
Cleaning basket size(mm) 645(L)*560(W)*100(H)*2layers
Liquid tank(L) 17
Pure chemicals tank(L) 32
Dilute chemicals tank(L) 60
Clean time(min) 5-20
Dry time(min) 20-40
Chemical heat temp.(Mpa) 0.5-0.7
PCB hot air temp.(L/min) 400-600
Electrical conductivity range(us) 10-400
Auto ratio range 5-20%
Chemical filter 1um or 0.45um
Rinse the discharge filter system 0.45um
Hot air filter 10um/5um
DI water supply(L/min) 30-65
DI water pressure(Mpa) ≤0.4
Vent size(mm) ¢125*50(H)
Power/Air supply 380V, 30KW
Machine weight(KGS) 450
Machine size(mm) 1300*1000*1720



Application:



Mainly used for aviation, aerospace, medical, new energy, automotive electronics and other industries high-end products, multi-species, small and medium-sized PCBA board cleaning ,it can effectively clean the SMT/THT PCBA after welding the surface of the residual rosin flux, water-soluble flux, no-clean flux / solder paste and other organic and inorganic pollutants



Cleaning Basket:

Circuit Board PCBA Washing Machine PCBA Cleaning Equipment 380V Power Supply 1



Cleaning Flow



Circuit Board PCBA Washing Machine PCBA Cleaning Equipment 380V Power Supply 2



Cleaning Process

Circuit Board PCBA Washing Machine PCBA Cleaning Equipment 380V Power Supply 3

Comparison of Cleaning



Circuit Board PCBA Washing Machine PCBA Cleaning Equipment 380V Power Supply 4
