PCB Cleaning Equipment 360°Rotate Jet Clean and Compressed Air Blow Dry Mode

PCB Cleaning Equipment 360°Rotate Jet Clean and Compressed Air Blow Dry Mode
PCB Cleaning Equipment 360°Rotate Jet Clean and Compressed Air Blow Dry Mode PCB Cleaning Equipment 360°Rotate Jet Clean and Compressed Air Blow Dry Mode PCB Cleaning Equipment 360°Rotate Jet Clean and Compressed Air Blow Dry Mode

Large Image :  PCB Cleaning Equipment 360°Rotate Jet Clean and Compressed Air Blow Dry Mode

Product Details:

Place of Origin: China
Brand Name: Chuangwei
Certification: CE
Model Number: CW-210

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 10 days
Supply Ability: 100 sets/month
Detailed Product Description
Max Stencil Size: 420*420*200(mm) Clean Time: 3-6 Minutes
Dry Time: 4-6 Minutes Name: PCB Cleaning Machine
High Light:

pcb cleaning system

,

smt stencil cleaner

PCB Cleaning Equipment 360°Rotate Jet Clean and Compressed Air Blow Dry Mode

Machine description:



CW-210 pneumatic PCB auto cleaning machine is designed to clean misprint solder paste, squeegee, feeder partgs, a small amount of PCBA. Driven by compressed air, the machine clean PCB from upper and lower side, by “one button” wasy operation, the machine complete “clean+dry” process automatically; Special pump and paten designed rotation pod guarantee stable jet pressure to make sure efficient and high qualit cleaning result.



Machine Feature:



1) Safety : Completely using compressed air as a driving force, do not use electricity, without any spark caused by security risks.
2) structure : All stainless steel structure, anti-acid corrosion, solid and durable, small size, reasonable structure, the appearance of fine.
3) Automated cleaning : According to the program set, automatically complete the cleaning, air all the processes. Small size, compact structure.
4) Spray cleaning design : The nozzle is used to increase the size of the nozzles, and the nozzle area is calculated by calculating the cleaning area.
5) operating : One-touch operation, easy to learn.
6) filter : The use of large-capacity filters, jet pressure greater, better cleaning, cleaning time less.
7) Spray room : Mirror stainless steel liner, liquid reflow with the rapid.
8)PCB dimension : maximum 450mm(L)*450mm(W)*180mm(H) . Non-calibrated control to meet the larger product size and higher cleaning capacity.
9) Applicable cleaning object :1. Misprint plate PCB surface residue ;

2.PCBA Solder on solder joints ;

3. Small batch fixture ;

4. Printing press scraper and so on.
10) Special requirements can be customized.



Machine Specification:



Item Parameter
Max stencial size 420*420*200(mm)
Liquid tank Max:50L, Min:20L
Clean time 3-6min
Dry time 4-6min
Air supply 0.5-0.7Mpa
Air consumption 200-600L/min
Clean type 360°rotate jet clean+compressed air blow dry
Filter system 20/5/1um(3 levels)
Machine weight 205kgs
Machine size 1060*800*1600mm



Machine Details:

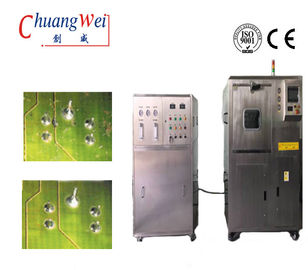

PCB Cleaning Equipment 360°Rotate Jet Clean and Compressed Air Blow Dry Mode 0



Cleaning Flow Chart

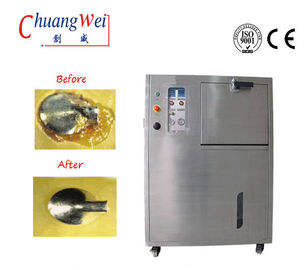

PCB Cleaning Equipment 360°Rotate Jet Clean and Compressed Air Blow Dry Mode 1



Operational Flow Chart

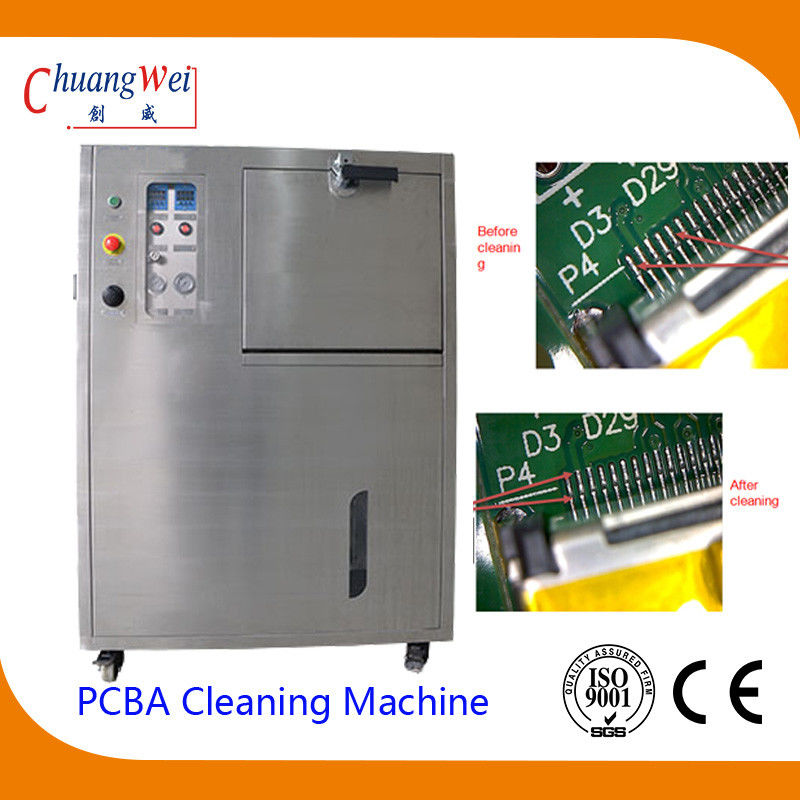

PCB Cleaning Equipment 360°Rotate Jet Clean and Compressed Air Blow Dry Mode 2
