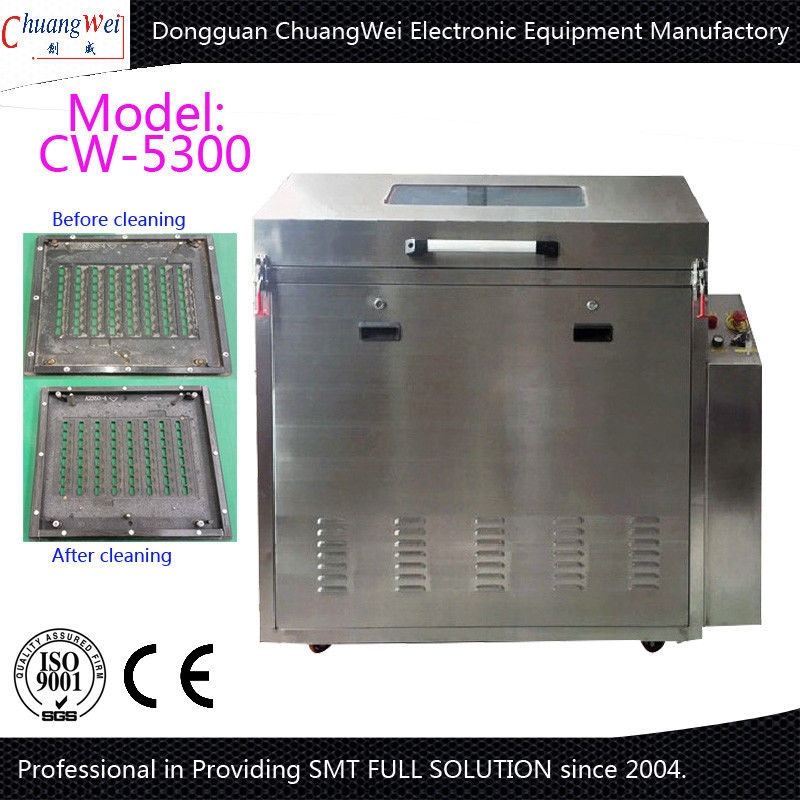

Stainles Steel Washing Room And Frame Pallet Washer Machines 80l Liquid Tank

China Stainles Steel Washing Room And Frame Pallet Washer Machines 80l Liquid Tank supplier

Large Image :  Stainles Steel Washing Room And Frame Pallet Washer Machines 80l Liquid Tank

Product Details:

Place of Origin: China
Brand Name: ChuangWei
Certification: CE
Model Number: CW-5300

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 10 days
Supply Ability: 100 sets/month
Contact Now
Detailed Product Description
Max Pallet Size: ¢1000*H400(mm) Liquid Tank: 80L
Filter System: 3 Levels Name: Pallet Cleaner Machine



Stainles Steel Washing Room and Frame Pallet Cleaner Machine



Machine description:



CW-5300 rotate high pressure pallet cleaning machine is one of our popular rotating cleaning machines. It widely used to clean oil or grease on all kinds of hardware processing parts, car parts and machine parts, etc.

CW-5300 consists of wash system, resin system, rotary cleaning basket, dry system and control system. Put the parts on to the cleaning basket, setting the cleaning parameters, the machine wash, resin and dry them automatically by pushing start key.





Machine Feature:

1. PLC procedure control, touch panel operation, world class reliable electric parts.
2. SUS 304 machine wash room and frame, resit Acid and Alkali corrosion, 10 years life time.
3. One-button mode of operation, high pressure clean + rinse + hot air dry, all process complete in one time automatically.
4. Closed-loop clean and rinse, clean solvent and rinse solvent is filtered in the machine.
5. Solvent recycled to use and cost down.
6. The parts are clean and dry after cleaning. Standby and ready for use at any time.
7. Standard equipped with auto fill-in and drain-out function.
8. Labor cost save, clean efficiency raise

9. Clean solution heat and keep temperature function.



Machine Specification:

Item Parameter
Max fixture size ¢1000*H400(mm)
Spray system All round rotate spray clean and rinse
Filter system 50/20/1um filter(3 levels)
Clean tank capacity 80L
Rinse tank capacity 80L
Spray pressure 3-6kg
Air supply 0.5-0.7Mpa
Machine weight 580kgs
Machine size 2080mm(L) x 1400mm(W) x 1450mm(H)



Cleaning Effect:

Stainles Steel Washing Room And Frame Pallet Washer Machines 80l Liquid TankAfter cleaning
