Nozzle smt cleaning equipment with Movable Fixture to Clean 36 Nozzles Per Time

China Nozzle smt cleaning equipment with Movable Fixture to Clean 36 Nozzles Per Time supplier

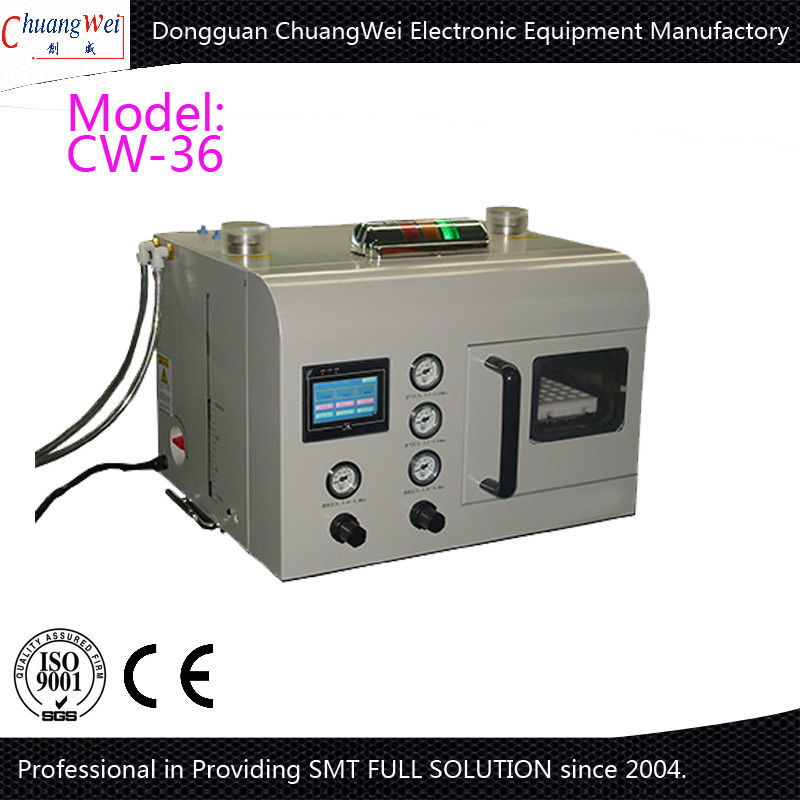

Large Image :  Nozzle smt cleaning equipment with Movable Fixture to Clean 36 Nozzles Per Time

Product Details:

Place of Origin: China
Brand Name: ChuangWei
Certification: CE
Model Number: CW-36

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 10 days
Supply Ability: 100 sets/month
Contact Now
Detailed Product Description
Capacity: 36 Nozzles Per Time Liquid: DI Water Or Purified Water
Nozzle Range: Min 01005-Max Inner Diameter ¢2.0mm Name: Nozzle Cleaner

Nozzle Cleaning Machine with Movable Fixture to Clean 36 Nozzles Per Time



Machine description:

The latest intelligent nozzle cleaning machine CW-36 with a moving fixture, dry at the same time while cleaning. Clean 36 nozzle per time, breaking the traditional cleaning machine cleaning methods and the number of restrictions. It uses pure water or DI water to clean, cleaning effect is good, cleaning rate of 99% or more, after this upgrade to join the intelligent detection of water storage device, whether the lack of water or too much water affect the cleaning effect function, no need to worry about water lacking or more water, so cleaning more peace of mind, more intelligent. Standard equipped with a special nozzle detection device for the nozzle after cleaning detection.



Machine Feature:

  1. Clean 36 nozzles per time, quicker and more efficient
  2. Automatic cleaning, avoid troubles caused by ultrasonic cleaner, reduce rejection rate.
  3. To clean the dirt completely which ultrasonic cleaner can not deal with
  4. Cleaning result will not affect by the smaller and smaller nozzle
  5. Thoroughly clean 99% dirty nozzle, extend the lifespan of nozzle
  6. Protect the coating surface of nozzle and its reflection panel.
  7. Never use solvent, only environmentally friendly DI water is enough
  8. Easy operation
  9. Applicable to all kinds of mouter nozzles, especially on corss, I-shape, odd shape nozzles



Machine Specification:

Item Parameter
Air supply 0.5-0.7Mpa
Power supply AC 220V, 1A
Liquid DI water or purified water
Jet Pressure ≤0.55Mpa
Liquid consumption ≤150cc/hour
Nozzle range

Min 01005-Max inner diameter ¢2.0mm

Jig spec 36 holes
Machine size 660*560*480mm
Machine weight 80kgs
