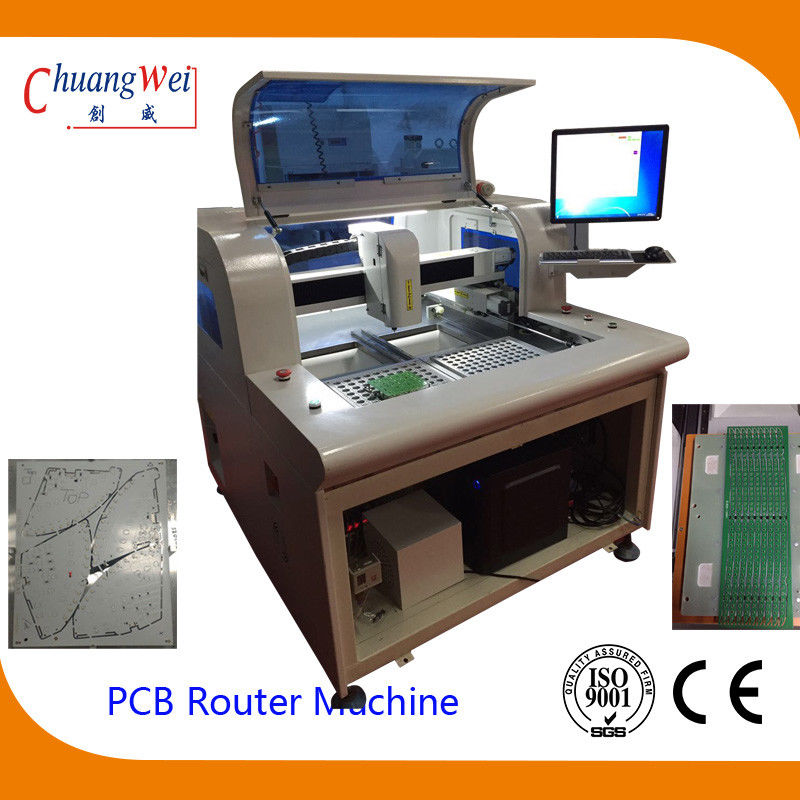

Tab-routed Depaneling PCB Router Equipment with 650*500mm Working Area





It is a stand alone router machine specially designed to route (depanelize) printed circuit board assemblies (PCBA) into individual assemblies. The machine can accomodate larger PCBs in its two table configuration with maximum panel size of 650mm x 500mm. Its advanced control software provides user friendly "visual" programming for rapid and accurate online programming.



Performance Parameters





Overall

Dimensions(W*D*H) 1220mm*1450mm*1420mm
Weight 550KG
Height offset 60~110mm



Manipulator

Motor type JiaBao series
Positioning repeatability 0.001mm
Axis working area(max) 680mm*360mm*50mm



Work station

Work station standard,specialization
PCB loading/unloading manual
PCB size (max) 322mm*322mm
PCB thick (max) 5mm



Fixturing

Rigidity fixturing standard
Fixturing fixation machinery



Spindle Motor

Power 400W
Spindle 50000rpm/min
Protect self/wind cooling
Change cutter Specialization



Routing capability

Cutting speed(max.) 100mm/s
Driving speed(max.) 3000mm/s
Precision of cutting 0.01mm



Vacuum System

Vacuum power 2.2KW AC 380V



Vacuum plumb



Utilities

Power 2.2KW AC380V

Air supply 2~5KG/cm2



CW-F01 Software:



Control system Windows 7
Operation GUI English Windows 7
Program edit Inline
Vision system CCD AOTU offset
Control system F 1.0.2 version

Key Features

  • Solution for stress free depanelization
  • Fixture-based highly efficient dust vacuum system
  • Clean and precise depanelization for densely populated PCBs
  • Advanced image-processing software offers point-and-click operation for programming router paths
  • Automatic alignment compensation by CCD camera
  • User-friendly operation
  • Extended bit life by automatic router bit depth adjustment
  • Improved tact time
  • Low maintenance required
  • Reasonable price
  • Calibration free linear robot
