High Efficient PCB Router Machine PCB Singulation Dual workstation

Certification
Good quality PCB Depaneling for sales
Good quality PCB Depaneling for sales
The router works fine. I would like to special thanks to you one more time for your support!

—— Ahmet

I was set up your machine one week ago. İt’s good working. Thank you for all.

—— Erdem

The machine operates well, we will purchase it again

—— Jon

The machine works very well, now we train all workers.

—— Michal

I'm Online Chat Now

High Efficient PCB Router Machine PCB Singulation Dual workstation

China High Efficient PCB Router Machine PCB Singulation Dual workstation supplier
High Efficient PCB Router Machine PCB Singulation Dual workstation supplier High Efficient PCB Router Machine PCB Singulation Dual workstation supplier

Large Image :  High Efficient PCB Router Machine PCB Singulation Dual workstation

Product Details:

Place of Origin: Dongguang China
Brand Name: chuangwei
Certification: CE ISO
Model Number: CW-F04

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: each set be packed in wooden case
Delivery Time: 7 days after payment confirm
Payment Terms: T/T, L/C,paypal
Supply Ability: 300 sets per month
Contact Now
Detailed Product Description
Color: White Vacuum Cleaner: Top Or Bottom(optional)
Routing Bit: 0.8/1.2/1.5/1.8/2.0mm PCB Size: 450*350mm
PCB Material: FR1, FR4, MCPCB Description: PCB Router

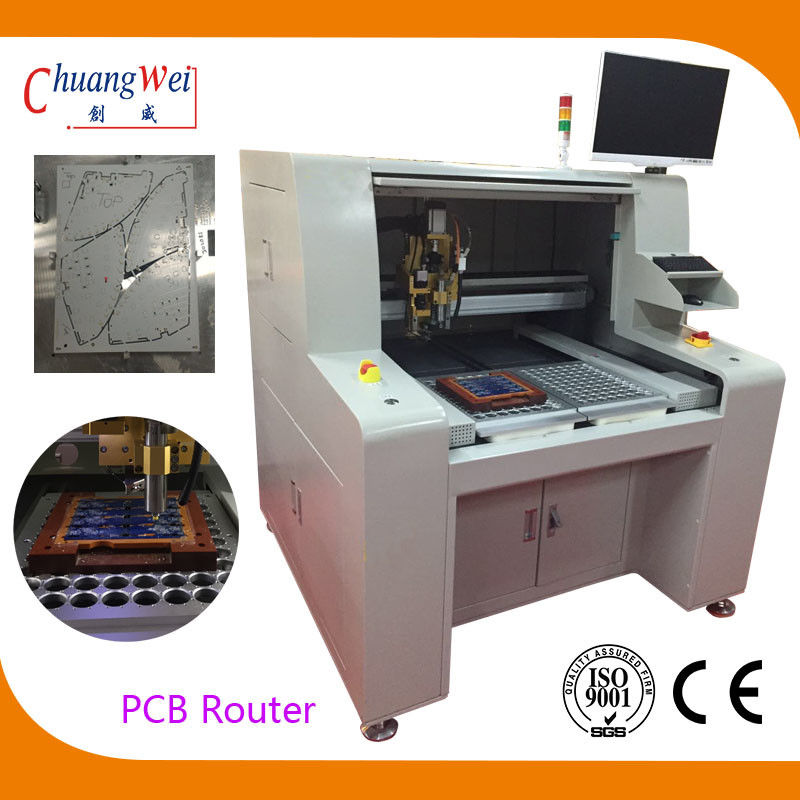

High Efficient PCB Router Machine PCB Singulation Dual workstation​ Quick and Efficient PCB Singulation



When considering the numerous methods available for PCB singulation, it is difficult to decide which might be the best. In China we propose that our PCB routers are the most efficient, and quickest way to singulate PCB's. For stress free depanelization we utilize a router bit which minimizes the stress on components, therefore keeping them intact and working proficiently. The router bit adjustment system will automatically shift up to 5 different depth levels, which will cut down on bit replacement. Router bit cutting speed has a maximum of 50mm per second, while the traveling speed is a maximum of 800mm per second. Our PCB routers also contain a high speed spindle which will sustain precision while speeding up the process. The frame is sure to hold up with precise ball screws employed on an X, Y, Z axis, and be speedy with a spindle motor that creates up to 60,000rpm spins.



Easy to Use



Not only are our PCB routers efficient and fast, they are very easy to operate as well. PCB singulation can be started on our machines with the simple touch of an external button. Image processing software makes it effortless to program specific cutting paths with point and click technology. The CCD camera incorporated allows for automatic alignment compensation, making depanelization even more unproblematic. Designed for easy access and repairs, our machines are low maintenance as well.



Specification



Model CW-F04
Standard working area 450*350mm
Power 220V, 4.2KW
Manipulator Repeatability ±0.02mm
Resolution ±0.01mm
Board Positioning Dual workstation with nest fixture or pin fixture
Panel Location Located by tooling holes or edges of PCB
Loading Manual
Unloading Manual
Panel Size 450*350mm
Panel Thickness 0.5-3.5mm
Spindle motor 0.5kW Morning Star Spindle
Tool Change Manual
Dust filtration system 3KW Vacuum Cleaner
Vision system High resolution CCD video camera
Programming Vision assisted point to point manual teaching
Editing Function Dry run vision assisted / test run mode
Machine weight 500kgs
Machine dimension 113*140*108cm



Application:



For milling joints connection PCB boards depaneling.

Used for all electronic industries covering power supply, computer, mobile phone, household appliance, automotive electronics, wires & connector...



High Efficient PCB Router Machine PCB Singulation Dual workstation  High Efficient PCB Router Machine PCB Singulation Dual workstation



Features:

  • Solution for stress free depanelization
  • Fixture-based highly efficient dust vacuum system
  • Clean and precise depanelization for densely populated PCBs
  • User-friendly operation
  • Extended bit life by manual router bit depth adjustment
  • Improved tact time
  • Low maintenance required
  • Reasonable price
  • Calibration free linear robot

Contact Details
Dongguan Chuangwei Electronic Equipment Manufactory

Contact Person: Alan Cao

Tel: +8613922521978

Send your inquiry directly to us (0 / 3000)
