Stand Alone CNC PCB Router Machine With 0.01mm Positioning Repeatability

Certification
Good quality PCB Depaneling for sales
Good quality PCB Depaneling for sales
The router works fine. I would like to special thanks to you one more time for your support!

—— Ahmet

I was set up your machine one week ago. İt’s good working. Thank you for all.

—— Erdem

The machine operates well, we will purchase it again

—— Jon

The machine works very well, now we train all workers.

—— Michal

I'm Online Chat Now

Stand Alone CNC PCB Router Machine With 0.01mm Positioning Repeatability

China Stand Alone CNC PCB Router Machine With 0.01mm Positioning Repeatability supplier
Stand Alone CNC PCB Router Machine With 0.01mm Positioning Repeatability supplier Stand Alone CNC PCB Router Machine With 0.01mm Positioning Repeatability supplier

Large Image :  Stand Alone CNC PCB Router Machine With 0.01mm Positioning Repeatability

Product Details:

Place of Origin: Dongguang china
Brand Name: Chuangwei
Certification: CE ISO9001
Model Number: CW-F01-S

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 1-3 days after payment confirm
Payment Terms: T/T, L/C, Western Union,paypal
Supply Ability: 300 sets/month
Contact Now
Detailed Product Description
Warranty: 12 Month Free Of Charge Temp• PCB Thickness: 0.5-3.0mm
• Cutting Area: 450*350mm • Router Bit Diameter: 0.8 ~ 2.0 Mm
Bit Change: Manual Name: PCB Router Separator

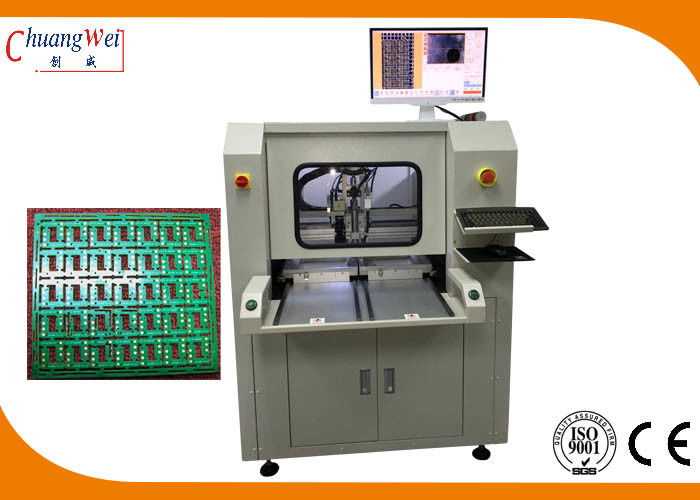

CNC PCB Router Separator with 0.01mm Positioning Repeatability



It is a stand alone router machine specially designed to route (depanelize) printed circuit board assemblies (PCBA) into individual assemblies. The machine can accomodate larger PCBs in its two table configuration with maximum panel size of 650mm x 500mm. Its advanced control software provides user friendly "visual" programming for rapid and accurate online programming.



Specification



Model CW-F01-S
Standard working area 320*320mm
Power 220V, 4.2KW
Manipulator Repeatability ±0.02mm
Resolution ±0.01mm
Board Positioning Dual workstation with nest fixture or pin fixture
Panel Location Located by tooling holes or edges of PCB
Loading Manual
Unloading Manual
Panel Size 320*320mm(standard)
Panel Thickness 0.5-3.5mm
Spindle motor KAVO Spindle
Tool Change Manual
Dust filtration system 3KW Vacuum Cleaner
Vision system High resolution CCD video camera
Programming Vision assisted point to point manual teaching
Editing Function Dry run vision assisted / test run mode
Machine weight 500kgs
Machine dimension 113*140*108cm



Features:



1. Manual loading/unloading processing

2. 2-way sliding working exchanger to limit the idle time and simultaneously loading and unloading to reaches the utmost output value.

3. Friendly touch panel with 10X CCD camera to minimize the time of programming

4. Auto fiducial mark point check and cutting route auto compensation to ensure the cutting accuracy

5. Auto router bit check to prevent the bit break incomplete cutting.
