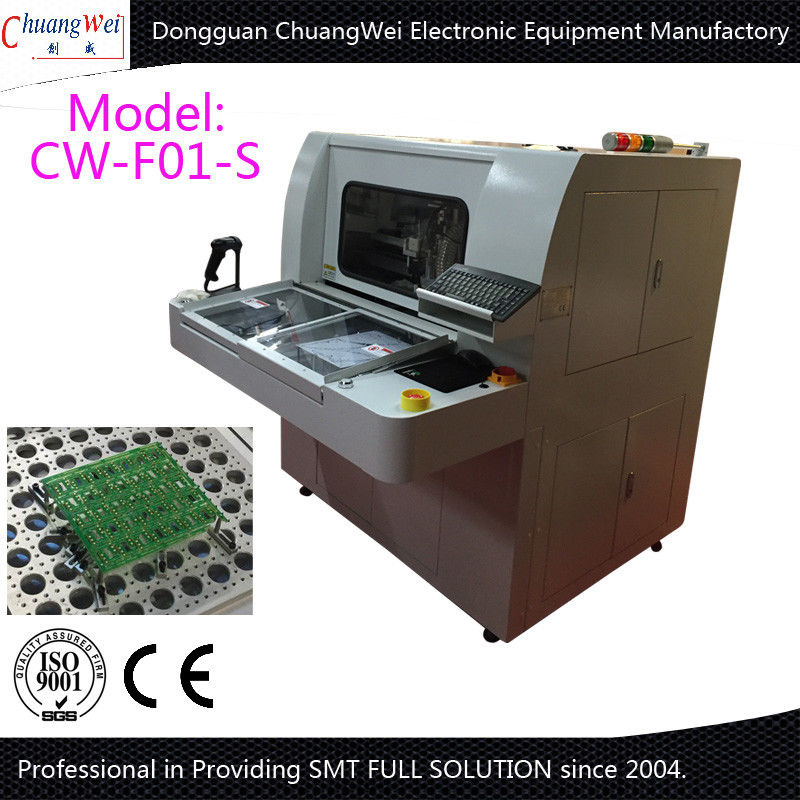

Inline PCB Router Machine / PCB Depaneling Router With KAVO Spindle

China Inline PCB Router Machine / PCB Depaneling Router With KAVO Spindle supplier
Inline PCB Router Machine / PCB Depaneling Router With KAVO Spindle supplier Inline PCB Router Machine / PCB Depaneling Router With KAVO Spindle supplier

Large Image :  Inline PCB Router Machine / PCB Depaneling Router With KAVO Spindle

Product Details:

Place of Origin: Dongguang China
Brand Name: chuangwei
Certification: CE ISO
Model Number: CW-F01-S

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 7 days after payment confirm
Payment Terms: T/T, L/C,paypal
Supply Ability: 300 sets per month
Contact Now
Detailed Product Description
Warranty: 1 Year MOQ: 1 Set
PCB Thickness: 0.6-3.5mm Motor Power: 250W
Max PCB Size: 650*400mm Name: PCB Depanelizer Router



Inline PCB Router Machine / PCB Depaneling Router With KAVO Spindle



1. PCB Depanelizer Router Parts List

I. Hardware
SPINDLE KAVO spindle
CCD Sony 520 line industrial cameras
LENS Computar EX2C
Screw TBI Precision ground ball screw imports
Guide HIWIN widening Imported linear guide rail
MOTOR JiaBao LCF Series
I/O CONTRONL CARD HFC PCI-9074
DRIVER CONTRONL CARD HFC PCI-9074
I/O CARD PCI-9074-64pcs/-38pcs
Static cleanup STATIC-ST401A Series
Computer (RMC-8401/6113LP4/300ATX/8651VNA/P4 2.8G 2CPU(S)/1G DDR/80G)
Machine interface AOC LCD17",Logitech mouse
2. software
Control system Windows XP Professional (Service3,v.3244)
Operation GUI English Windows XP
Program edit Inline
Vision system CCD AOTU offset
Control system F 1.2.88 version


2. PCB Depanelizer Router Parameters

Overall
Dimensions(W*D*H) 1370mm*1650mm*1450mm
Weight 650KG
Height offset 60~110mm
Manipulator
Motor type JiaBao series
Positioning repeatability 0.001mm
Axis working area(max) 830mm*580mm*50mm
Work station
PCB fixation standard,specialization
PCB loading/unloading manual
PCB size (max) 320*320mm
PCB thick (max) 5mm
Fixturing
Rigidity fixturing Use client fixture
Fixturing fixation machinery
Spindle Motor
Power 150W
Spindle 60000rpm/min
Protect self/wind cooling
Change cutter Specialization
Routing capability
Cutting speed(max.) 80mm/s
Driving speed(max.) 2500mm/s
Precision of cutting 0.01mm
Vacuum System
Vacuum power 3.5KW AC 380V
Vacuum plumb
Utilities
Power 2.0KW AC380V
Air supply 4-6KG/cm2
Programming
Program edit Inline
Function edit Line,arc,circula,U-curve
Program storage HDD
Vision system SONE colour CCD
milling cutter offset AUTO
Vacuum setup AUTO
Operation Monitors
Iindicator Iindicator Machine state
tool check Automatic detection tool life, the use of time testing
Motor protect Have overheating, overload, low voltage protection function
motor over loading check Have Overload, the line is normal, low voltage protection function
Tool usable time Automatic detection tool life,
Data statistic Separate board model, separating count, diverse counting methods
Error record Software automatically records all alarms memory of machines
III. Accuracy
Axis precision 0.001mm
Cutting precision 0.1mm
IV. Safety
Working area protect With four sealed protection
Door sensor Front and rear safety door micro-switch sensor (optional)
Exigency stop button



3. PCB Depanelizer Router KAVO Spindle

Inline PCB Router Machine / PCB Depaneling Router With KAVO Spindle



4. PCB Depanelizer Router Vacuum Cleaner

Inline PCB Router Machine / PCB Depaneling Router With KAVO Spindle



5. Quick and Efficient PCB Singulation

When considering the numerous methods available for PCB singulation, it is difficult to decide which might be the best. At ChuangWei we propose that our PCB routers are the most efficient, and quickest way to singulate PCB's. For stress free depanelization we utilize a router bit which minimizes the stress on components, therefore keeping them intact and working proficiently. The router bit adjustment system will automatically shift up to 5 different depth levels, which will cut down on bit replacement. Router bit cutting speed has a maximum of 50mm per second, while the traveling speed is a maximum of 800mm per second. Our PCB routers also contain a high speed spindle which will sustain precision while speeding up the process. The frame is sure to hold up with precise ball screws employed on an X, Y, Z axis, and be speedy with a spindle motor that creates up to 60,000rpm spins.
