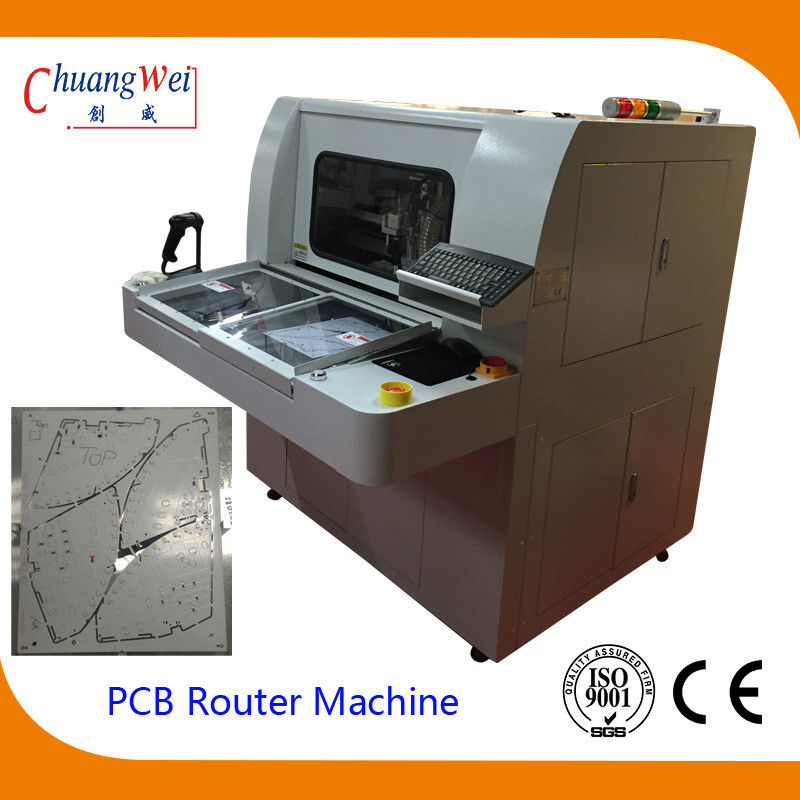

Tab Routed Board PCB Depaneling Router with 6000rpm KAVO Spindle

Tab Routed Board PCB Depaneling Router with 6000rpm KAVO Spindle
Tab Routed Board PCB Depaneling Router with 6000rpm KAVO Spindle Tab Routed Board PCB Depaneling Router with 6000rpm KAVO Spindle

Large Image :  Tab Routed Board PCB Depaneling Router with 6000rpm KAVO Spindle

Product Details:

Place of Origin: China
Brand Name: Chuangwei solder pot
Certification: CE
Model Number: CW-F01-S

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 7 days
Payment Terms: Western Union, T/T, L/C
Supply Ability: 1500 sets / year
Detailed Product Description
MOQ: 1 Set Warranty: 1 Year
PCB Size: 320*320mm(standard) Name: PCB Router Machine
High Light:

automatic router machine

,

printed circuit board router



Tab-Routed Boards PCB Router Machine with 6000rpm KAVO Spindle



Quick and Efficient PCB Singulation

When considering the numerous methods available for PCB singulation, it is difficult to decide which might be the best. At ChuangWei we propose that our PCB routers are the most efficient, and quickest way to singulate PCB's. For stress free depanelization we utilize a router bit which minimizes the stress on components, therefore keeping them intact and working proficiently. The router bit adjustment system will automatically shift up to 5 different depth levels, which will cut down on bit replacement. Router bit cutting speed has a maximum of 50mm per second, while the traveling speed is a maximum of 800mm per second. Our PCB routers also contain a high speed spindle which will sustain precision while speeding up the process. The frame is sure to hold up with precise ball screws employed on an X, Y, Z axis, and be speedy with a spindle motor that creates up to 60,000rpm spins.

Flexible panel designs are easy to deal with through the various cutting patterns available on the routers. A fixture-based dust vacuum removal system utilized from the bottom side assures that there will be no shift or warp during PCB singulation.

Easy to Use

Not only are our PCB routers efficient and fast, they are very easy to operate as well. PCB singulation can be started on our machines with the simple touch of an external button. Image processing software makes it effortless to program specific cutting paths with point and click technology. The CCD camera incorporated allows for automatic alignment compensation, making depanelization even more unproblematic. Designed for easy access and repairs, our machines are low maintenance as well.

Value for a Low Cost

The effectiveness of our routers can not be disputed. Quick, efficient, easy to use, and very low maintenance, it's not hard to see that our routers are a valuable asset for the low cost it comes at.



Specification

Model CW-F01
Standard working area 320*320mm
Power 220V, 4.2KW
Manipulator Repeatability ±0.02mm
Resolution ±0.01mm
Board Positioning Dual workstation with nest fixture or pin fixture
Panel Location Located by tooling holes or edges of PCB
Loading Manual
Unloading Manual
Panel Size 320*320mm(standard)
Panel Thickness 0.5-3.5mm
Spindle motor Germany KAVO
Tool Change Manual
Dust filtration system 3KW Vacuum Cleaner
Vision system High resolution CCD video camera
Programming Vision assisted point to point manual teaching
Editing Function Dry run vision assisted / test run mode
Machine weight 550kgs
