Customized Double Table PCB Router Equipment With 450*450mm Working Area

China Customized Double Table PCB Router Equipment With 450*450mm Working Area supplier

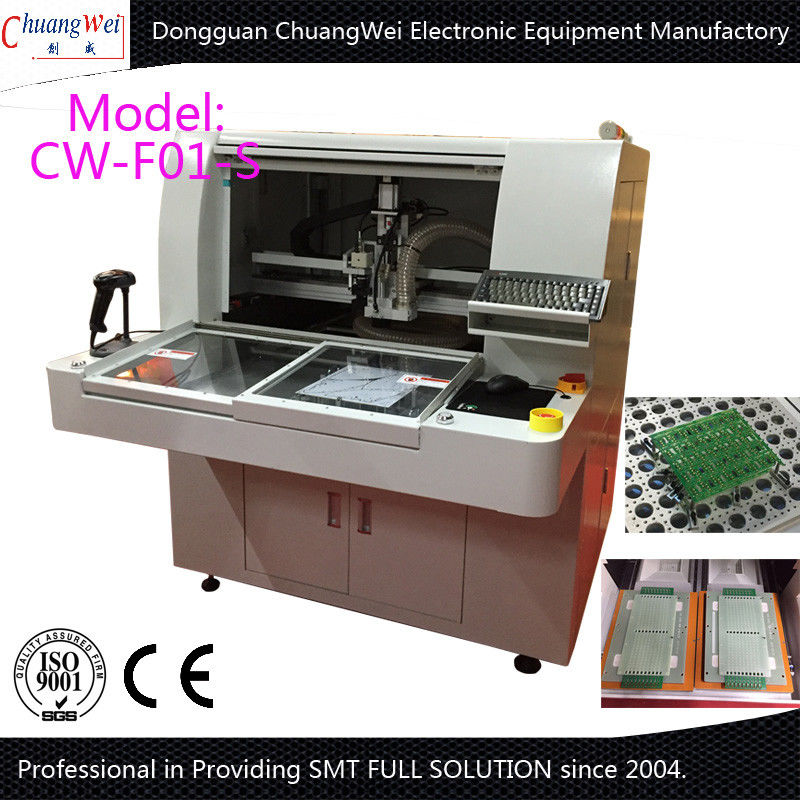

Large Image :  Customized Double Table PCB Router Equipment With 450*450mm Working Area

Product Details:

Place of Origin: Dongguang China
Brand Name: chuangwei
Certification: CE ISO
Model Number: CW-F01-S

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: each set be packed in carton boxes
Delivery Time: 1-3 days after payment confirm
Payment Terms: T/T, L/C,paypal
Supply Ability: 300 sets per month
Contact Now
Detailed Product Description
Voltage:: AC 220V± 10% 50Hz Spindle: KAVO
Power(W):: 4.2KW Routing Speed: 2s Per Point
PCB Size: 450*450mm(could Be Customized Made) Description: PCB Router Equipment

Customized Double Table PCB Router Equipment with 450*450mm Working Area





The best sulotion for PCB depaneling

  1. Avoids problems such as the tin break and damage to the compnent caused by manually bending a plate
  2. Avoids the stress produced mechanically by using punch or bending
  3. Suitable for cutting of a circle, arc and line of a finished plate



Rotational speeds adjustable

  1. The spindle head consists pf a high-speed motor and the main shaft, which can be replaced separately to reduce the cost of maintenance
  2. The high-speed spindle uses air radiation to reduce volume
  3. The head of the main shaft is suitable for the milling cutter specially designed for a PCB
  4. The rotational speeds of the main shaft can be adjusted from 2K-60K RPM according to the thickness of PCB



The screen is friendly and can be switches between Chinese and English

  1. Equipped with a build-in image capture, workpiece image and operation on the same screen, easy operation
  2. The function selection, manual function selection and instruction for shift are selected by mouse

      3.Mechanical parameters and function setting can be locked up with a password to avoid operation the equipment accidentally.



Value matching is accurate and instruction is conveniently

  1. During instructing, there are three kinds of speed optional
  2. Cooperating with the monitor, the diameter of a milling cutter, a circle and square frame can be setCustomized Fixture for Better Routing Effect



Customized Fixture for better routing effect

Customized Double Table PCB Router Equipment With 450*450mm Working Area

.





Routing bits specification

(Upper Vacuum Cleaner)Righ-hand specification: ¢0.8, ¢1.0, ¢1.2, ¢1.5, ¢1.8, ¢2.0

(Lower Vacuum Cleaner)Left-hand specification: ¢0.8, ¢1.0, ¢1.2, ¢1.5, ¢1.8, ¢2.0

Customized Double Table PCB Router Equipment With 450*450mm Working Area
