Windows 7 System Depanelizer PCB Router Machine Morning Star Spindle

Certification
Good quality PCB Depaneling for sales
Good quality PCB Depaneling for sales
The router works fine. I would like to special thanks to you one more time for your support!

—— Ahmet

I was set up your machine one week ago. İt’s good working. Thank you for all.

—— Erdem

The machine operates well, we will purchase it again

—— Jon

The machine works very well, now we train all workers.

—— Michal

I'm Online Chat Now

Windows 7 System Depanelizer PCB Router Machine Morning Star Spindle

China Windows 7 System Depanelizer PCB Router Machine Morning Star Spindle supplier
Windows 7 System Depanelizer PCB Router Machine Morning Star Spindle supplier Windows 7 System Depanelizer PCB Router Machine Morning Star Spindle supplier

Large Image :  Windows 7 System Depanelizer PCB Router Machine Morning Star Spindle

Product Details:

Place of Origin: Dongguang China
Brand Name: chuangwei
Certification: CE ISO
Model Number: CW-F01

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: each set be packed in plywood case
Delivery Time: 1-3 days after payment confirm
Payment Terms: T/T, L/C,paypal
Supply Ability: 300 sets per month
Contact Now
Detailed Product Description
Standard Working Area: 320*320mm PCB Thickness: 0.5-3.5mm
Warranty: One Year Frequency:: 50-60Hz
Table: 2 Description: PCB Depanelizer Router



PCB Depanelizer Router Morning Star Spindle with Reasonable Price



1. Manual loading/unloading processing

2. 2-way sliding working exchanger to limit the idle time and simultaneously loading and unloading to reaches the utmost output value.

3. Friendly touch panel with 10X CCD camera to minimize the time of programming

4. Auto fiducial mark point check and cutting route auto compensation to ensure the cutting accuracy

5. Auto router bit check to prevent the bit break incomplete cutting.



Specification

  • Setting Fixture : 2 stations
  • Working Area : X: 320mm, Y: 320mm, Z: 60mm
  • Cutting Area : Max: X: 320mm, Y: 320mm Min: X: 100mm, Y: 100mm Z: 15mm
  • PCB Component Height : Top side: 15mm Bottom side: 45mm(with specific jig)
  • PCB Thickness : 0.5 to 3.0 mm
  • Router Bit Diameter : 0.8 ~ 2.0 mm(Option: Over 2.0mm)
  • Precision of Cutting : ± 0.10 mm
  • Positioning Accuracy : ± 0.01mm
  • Positioning Repeatability : ± 0.02mm
  • Number of Axis in use : 7 Axis (X, YL, YR, Z, Carry, P/P, Conveyor).
  • Driving Speed (Max) : X, YL, YR : 1000mm/sec, Z: 750mm/sec
  • Cutting Speed (Max) : X, Y, Z: 100mm/sec (It's according to the specification of Bit for the best speed setting )
  • Spindle Motor : High speed variable frequency motor 150W (Max.50,000rpm)
  • Bit Change : Manual
  • Cutting Ability : Linear, Circular, U-curve, Arc, L-curve
  • Motor of Axis : 7 Axes (150W AC Servo motors)
  • Bit Shift Count : Max. 2
  • Route Planning : Direct coordinate input or manual guiding with × 10 CCD camera
  • Safety Area Sensor : n/a
  • Bit Break Detection : Standard
  • Program Storage : HDD
  • Program Backup : USB
  • Operating System : Windows 7
  • Man-Machine Interface : Touchscreen Industrial Monitor + Keyboard + Mouse
  • Conveyor Adjustment : Manual adjustment Max: Y: 350mm Min: Y: 100mm
  • Conveyor load capacity : Max: 2 Kg
  • PCB Loading/Unloading : Automatic
  • Power Supply : 3 Phase AC220V±3% 50Hz/ 60Hz, 3.5 kw
  • Air : 0.5Mpa
  • Dimensions : (W)2002mm x (D)1279mm x (H)1716mm + 578mm signal tower
  • Weight : approx. 500 Kg

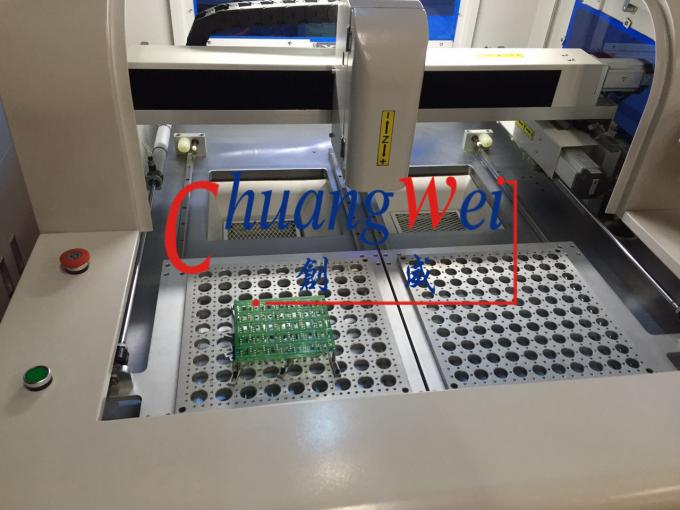

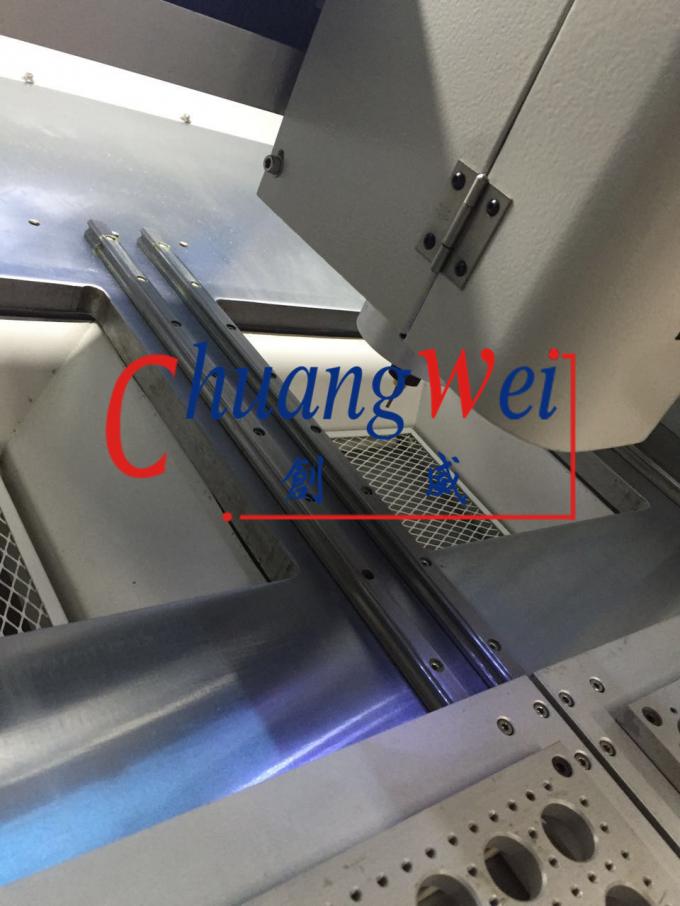

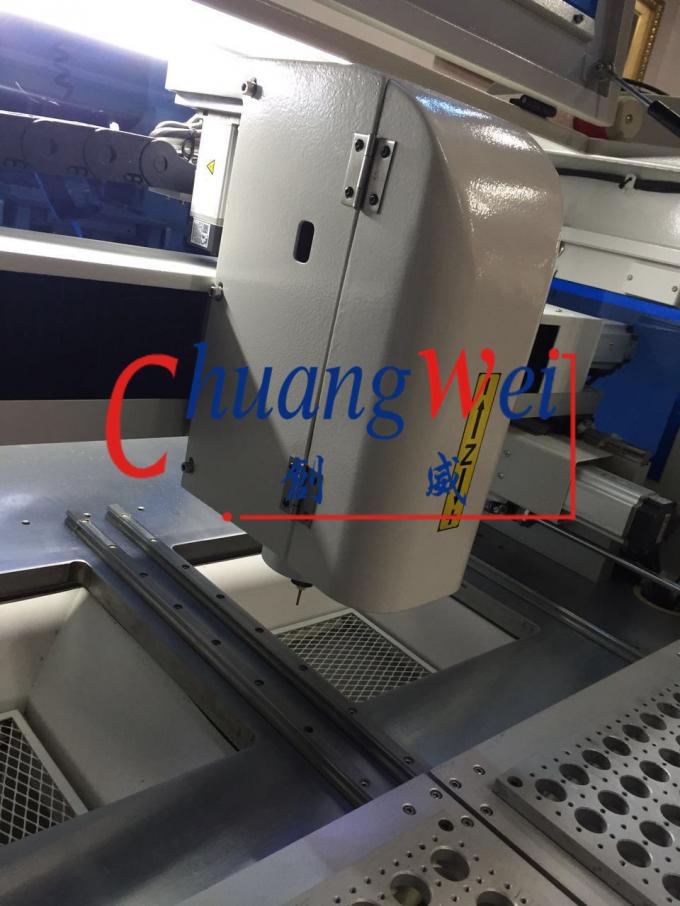

Machine details:
