Product Details:
Payment & Shipping Terms:
|
| Dust Filtration System: | 3KW Vacuum Cleaner | Vision System: | High Resolution CCD Video Camera |
|---|---|---|---|
| Resolution: | ±0.01mm | Power: | 220V, 4.2KW |
| Loading/Unloading: | Manual | Standard Working Area: | 320*320mm,450*350mm,etc. |
| Working Table: | 2 | PCB Material: | FR1, FR4, MCPCB,etc. |
| High Light: | PCB Depaneling Router for MCPCB,4.2KW PCB Depaneling Router |
||

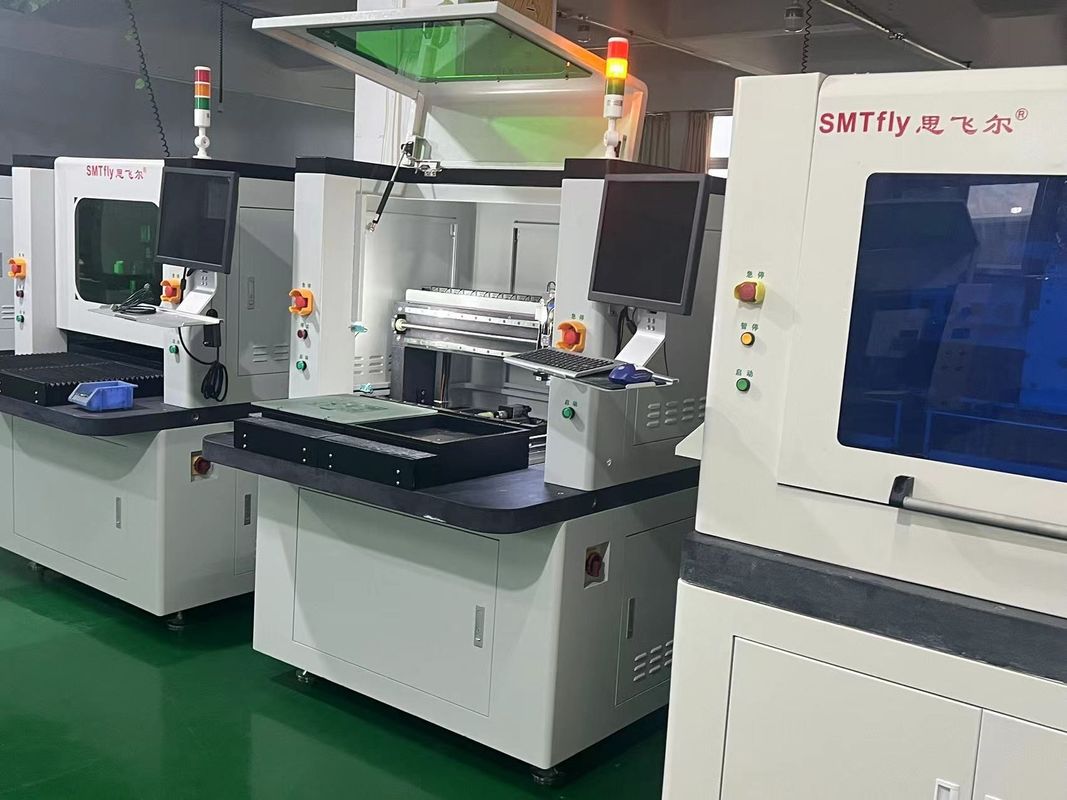

The PCB Router Machine is an online or offline PCB Router depaneling machine used for printed circuit board router production. It is equipped with a 3KW Vacuum Cleaner dust filtration system, a Vision Assisted Point To Point Manual Teaching for programming, and Dry Run Vision Assisted/Test Run Mode editing functions. Featuring high accuracy of ±0.01mm and a power requirement of 220V, 4.2KW, it offers reliable performance and great efficiency.
| Product features | Details |
|---|---|
| Warranty | One Year |
| Programming | Vision Assisted Point To Point Manual Teaching |
| Vision system | High Resolution CCD Video Camera |
| Power | 220V, 4.2KW |
| PCB Material | FR1, FR4, MCPCB,etc. |
| Routing Bit | 0.8/1.2/1.5/1.8/2.0mm |
| Spindle motor | KAVO Spindle |
| Tool Change | Manual |
| Standard working area | 320*320mm,450*350mm,etc. |
| Machine dimension | 113*140*108cm |
| Product type | Automatic router machine, Online or offline PCB Router depaneling machine, PCB CNC Router |
Chuangwei PCB Router Machine is a great choice for cutting, routing and depaneling PCBs. It is designed for precision and accuracy, with a resolution of ±0.01mm. It is capable of routing PCBs with a maximum size of 320*320mm, 450*350mm, etc. It is equipped with a dust filtration system with 3KW Vacuum Cleaner, and its working table can be changed manually. It is CE and ISO certified, and its minimum order quantity is 1 set. Moreover, its price is negotiable and it can be delivered within 7 days after payment is confirmed. It can accept payment via T/T, L/C, PayPal and can supply up to 100 sets per month. It is a perfect choice for automotive electronic PCB depaneling and router with CCD camera system.
Brand Name: Chuangwei
Place of Origin: Dongguan
Certification: CE ISO
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 7 days after payment confirm
Payment Terms: T/T, L/C,paypal
Supply Ability: 100 Sets/Month
Programming: Vision Assisted Point To Point Manual Teaching
Resolution: ±0.01mm
Machine weight: 500kgs
Working Table: 2
PCB Material: FR1, FR4, MCPCB,etc.
Chuangwei Stand Alone CNC PCB Router Machine is a printed circuit board router which is designed to route out PCBs with a Windows 7 system. With its vision assisted point to point manual teaching, this equipment can achieve a resolution of ±0.01mm with a machine weight of 500kgs. It comes with two working tables and supports a variety of PCB materials, such as FR1, FR4, and MCPCB.
When it comes to packaging and shipping of PCB Router Machine, we have set up rigorous procedures to ensure that the product is properly packaged and safely shipped to the destination.
The PCB router machine is packaged with anti-static bubble wrap and thick cardboard for extra protection. It also comes with an instruction guide for easy setup. All parts are checked before packing to make sure that they are in working order.
The PCB Router Machine is shipped using a reliable and secure courier service. We also offer tracking and insurance options to ensure that the product arrives safely at its destination. We take extra care to package the product properly and safely, so that it arrives in perfect condition.
