Product Details:
Payment & Shipping Terms:
|
| Editing Function: | Dry Run Vision Assisted / Test Run Mode | Standard Working Area: | 320*320mm,450*350mm,etc. |
|---|---|---|---|
| Working Table: | 2 | Panel Thickness: | 0.5-3.5mm |
| PCB Material: | FR1, FR4, MCPCB,etc. | Name: | PCB Router Machine/PCB Routing Equipment |
| Machine Weight: | 500kgs | Programming: | Vision Assisted Point To Point Manual Teaching |
| High Light: | Vacuum Cleaner PCB Router Machine,FR1 FR4 PCB Router Machine,FR4 PCB Router Machine OEM |
||

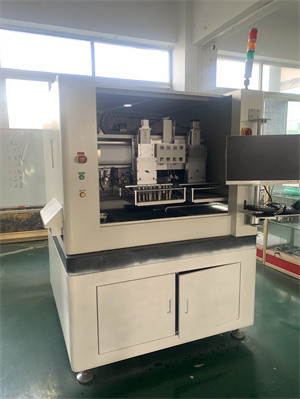

The PCB Router Machine is a stand-alone CNC router specifically designed for cutting printed circuit boards. It features a KAVO spindle, dual workstations with nest fixtures or pin fixtures, and a repeatability of ±0.02mm. This machine is capable of locating panels by tooling holes or edges of PCBs, and its power requirements are 220V, 4.2KW. The router offers a comprehensive solution for cutting, trimming, chamfering, countersinking, drilling, and routing of printed circuit boards. It is capable of working precisely and quickly, with a high degree of accuracy and repeatability.
The PCB Router Cutting Machine is ideal for industrial environments where precision and accuracy are paramount. It is designed to be easy to maintain and use, and is fully compatible with a wide range of CNC programming languages and software. It is also capable of producing highly complex shapes, and can be used for a variety of PCB routing operations. Its advanced features and functions make it reliable and efficient, and it is capable of delivering precise results with a minimum of effort.
The PCB Router Machine is a perfect choice for high-quality PCB fabrication. It is reliable, accurate and efficient, and is capable of producing precise results with minimal effort. This machine is a powerful tool for the production of high-quality printed circuit boards, and is suitable for a wide range of PCB routing applications.
| Parameters | Value |
|---|---|
| Loading/Unloading | Manual |
| Resolution | ±0.01mm |
| Panel Thickness | 0.5-3.5mm |
| Standard working area | 320*320mm,450*350mm,etc. |
| Dust filtration system | 3KW Vacuum Cleaner |
| Vision system | High Resolution CCD Video Camera |
| PCB Material | FR1, FR4, MCPCB,etc. |
| Board Positioning | Dual Workstation With Nest Fixture Or Pin Fixture |
| Tool Change | Manual |
| Programming | Vision Assisted Point To Point Manual Teaching |
Chuangwei's PCB Router Machine is the perfect solution for PCB depaneling. With its high resolution CCD video camera vision system and manual tool change, this machine can quickly and accurately locate the tooling holes or edges of PCBs, providing fast and accurate depaneling. With a weight of 500kgs and a minimum order quantity of 1 set, this machine is sure to meet your PCB depaneling needs.
This Stand Alone CNC PCB Router Machine is CE and ISO certified for the highest quality, and is available at a Negotiable price. It will be delivered within 7 days of payment confirmation, and up to 100 sets can be supplied each month. The machine is also well-protected during shipping, with plywood cases that ensure its safe arrival.
If you're looking for a PCD depaneling router with a CCD camera system, then Chuangwei's PCB Router Machine is the perfect choice. With its accurate depaneling, certifications, and competitive pricing, this machine is sure to meet your needs.
Chuangwei Stand Alone CNC PCB Router Machine is a printed circuit board router with Windows 7 System. It is used for routing and drilling of PCB material such as FR1, FR4, and MCPCB. It has a high resolution CCD video camera for vision system, and the accuracy of the machine is ±0.01mm. The machine dimension is 113*140*108cm. Minimum order quantity is 1 Set, and the price is negotiable. The packaging is plywood case. Delivery time is 7 days after payment confirm. Payment terms are T/T, L/C, or Paypal. The supply ability is 100 Sets/Month.
We are dedicated to providing the best technical support and service for all of our PCB Router Machine products. Our team of experienced technicians can help you troubleshoot any issues you may have with your machine, and we provide a wide range of services such as:
We also offer extended warranties and maintenance plans for our products, so you can be sure that your machine will be reliable and efficient for years to come. If you have any questions or need any assistance, please don't hesitate to contact us.
The PCB Router Machine is carefully packaged for transport in a customised box, with all the components and accessories securely held in place. It is vital that all the parts are kept safe and secure during transit.
The box is designed to be as lightweight as possible, while still providing the utmost protection of the product. All of the packaging materials used are certified for their environmental credentials, so you can be sure that your PCB Router Machine will be delivered in a sustainable and eco-friendly way.
The PCB Router Machine is shipped via a reliable and secure delivery service, with tracking available for customers to follow the progress of their order. Delivery times vary depending on the destination, but you can expect your product to arrive within a few days of placing your order.
