Product Details:
Payment & Shipping Terms:
|
| Routing Bit: | 0.8/1.2/1.5/1.8/2.0mm | Working Table: | 2 |
|---|---|---|---|
| Name: | PCB Router Machine/PCB Routing Equipment | Machine Weight: | 500kgs |
| Programming: | Vision Assisted Point To Point Manual Teaching | Standard Working Area: | 320*320mm,450*350mm,etc. |
| Resolution: | ±0.01mm | Editing Function: | Dry Run Vision Assisted / Test Run Mode |
| High Light: | Standalone CNC PCB Router Machine,Online CNC PCB Router Machine,Manua Loading CNC PCB Router Machine |
||

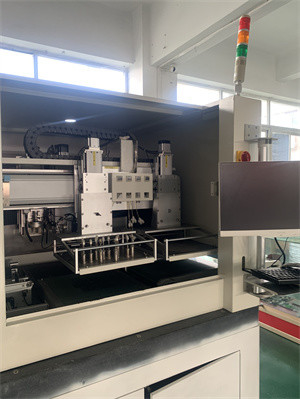

The PCB Router Machine is a high-performance online or offline depaneling machine specially designed for the production and routing of PCB materials such as FR1, FR4, MCPCB, etc. It is equipped with two working tables, and the loading/unloading is manual. With the help of our vision-assisted point-to-point manual teaching programming, the machine can quickly and accurately complete the complex routing of PCB materials. Meanwhile, the machine is also equipped with a one-year warranty, ensuring that the machine is always in good working condition.
| Parameter | Value |
|---|---|
| Manipulator Repeatability | ±0.02mm |
| Dust filtration system | 3KW Vacuum Cleaner |
| Board Positioning | Dual Workstation With Nest Fixture Or Pin Fixture |
| Resolution | ±0.01mm |
| Machine dimension | 113*140*108cm |
| Standard working area | 320*320mm, 450*350mm, etc. |
| Routing Bit | 0.8/1.2/1.5/1.8/2.0mm |
| Machine weight | 500kgs |
| Warranty | One Year |
| Vision system | High Resolution CCD Video Camera |
PCB Router Machine, manufactured by Chuangwei, is designed to meet the needs of modern printed circuit board router, pcb depaneling router and PCB Routing Equipment. It is made with Windows 7 System and comes with CE ISO certification. With a minimum order quantity of 1 Set, the price is negotiable. It is packaged in a plywood case for secure delivery, and it will be delivered within 7 days after payment confirmation is completed. Payment terms are T/T, L/C,paypal, and it has a supply ability of 100 Sets/Month. Its dimensions are 113*140*108cm, and its manipulator repeatability is ±0.02mm. Additionally, it has a dry run vision assisted or test run mode, manual tool change, and a panel thickness range of 0.5-3.5mm.
We provide technical support and service for PCB Router Machine. Our team of qualified technicians are available 24/7 to answer any questions you may have and help with troubleshooting and repairs.
We can provide assistance over the phone, via email, or in-person at our service centers. Our technicians are well-trained and knowledgeable about our products and can provide fast and efficient service.
We offer a number of services, including:
Our goal is to provide the best possible service and support for our customers. If you ever have any questions or concerns about your PCB Router Machine, please don't hesitate to contact us.
Packaging and Shipping for PCB Router Machine
The PCB Router Machine will be shipped in a double-wall corrugated box, secured with foam inserts. The box will be labeled with a shipping label indicating the contents of the package, the destination, and the proper handling instructions.
The box will also be marked with any applicable safety symbols and warnings. The package will include all necessary cables and instructions for setup and use of the PCB Router Machine.
The package will be shipped via a reliable carrier, such as UPS or FedEx, with insurance to cover the cost of the product in case of damage during shipping.
Q1:What is the Brand Name of the PCB Router Machine?
A1:The Brand Name of the PCB Router Machine is Chuangwei.
Q2:Where is the Place of Origin of the PCB Router Machine?
A2:The Place of Origin of the PCB Router Machine is Dongguan.
Q3:What is the Certification of the PCB Router Machine?
A3:The Certification of the PCB Router Machine is CE ISO.
Q4:What is the Minimum Order Quantity of the PCB Router Machine?
A4:The Minimum Order Quantity of the PCB Router Machine is 1 Set.
Q5:What is the Price of the PCB Router Machine?
A5:The Price of the PCB Router Machine is Negotiable.
