Product Details:
Payment & Shipping Terms:
|
| Resolution: | ±0.01mm | Manipulator Repeatability: | ±0.02mm |
|---|---|---|---|
| PCB Material: | FR1, FR4, MCPCB,etc. | Power: | 220V, 4.2KW |
| Panel Location: | Located By Tooling Holes Or Edges Of PCB | Machine Dimension: | 113*140*108cm |
| Programming: | Vision Assisted Point To Point Manual Teaching | Panel Thickness: | 0.5-3.5mm |
| High Light: | 2 Working Table PCB Depaneling Router,2.0mm Bits PCB Depaneling Router,CCD Camera PCB Routing Equipment |
||

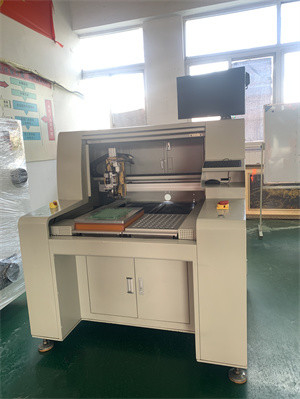

This PCB Router Cutting Machine is a professional-grade machine designed to provide high-precision cutting of printed circuit boards. The two working tables enable the online or offline PCB Router depaneling machine to perform efficient operations with excellent repeatability and accuracy. The manual tool change feature ensures easy and fast tool changes, while the one-year warranty provides peace of mind. The machine is capable of cutting panel thicknesses of 0.5-3.5 mm with an impressive ±0.02mm manipulator repeatability.
| Parameter | Detail |
|---|---|
| Standard working area | 320*320mm, 450*350mm, etc. |
| Machine weight | 500kgs |
| Panel Location | Located By Tooling Holes Or Edges Of PCB |
| Spindle motor | KAVO Spindle |
| Name | PCB Router Machine/PCB Routing Equipment |
| Working Table | 2 |
| Machine dimension | 113*140*108cm |
| Resolution | ±0.01mm |
| Vision system | High Resolution CCD Video Camera |
| Panel Thickness | 0.5-3.5mm |
PCB Router Machine, powered by Chuangwei, is the ideal online or offline solution for depaneling printed circuit boards(PCBs). It is widely used in electronics industry, such as in the manufacturing of mobile phones, computers, laptops, digital cameras, and other electronic products. This machine is made in Dongguan with quality assurance, certified with CE and ISO.
This machine is highly accurate with a resolution of ±0.01mm. It is equipped with a high resolution CCD video camera to monitor and optimize the cutting performance of the PCB. It also has a manual tool change and supports various routing bits of 0.8/1.2/1.5/1.8/2.0mm. The PCB material it can handle includes FR1, FR4, MCPCB,etc.
The minimum order quantity is 1 set, and the price is negotiable. It will be packaged in a plywood case and shipped within 7 days after payment is confirmed. The payment terms include T/T, L/C, and paypal. The supply ability of this machine is 100 sets per month.
Chuangwei is a professional manufacturer of PCB Router Machine with customized service. Our PCB Router Cutting Machine is certified with CE ISO and we offer the minimum order quantity of 1 Set.
The PCB Router Cutting Machine has a weight of 500kgs and adopts KAVO Spindle as its spindle motor. The standard working area for this PCB Router Machine is 320*320mm,450*350mm, etc. The manipulator repeatability is ±0.02mm and it features editing function of dry run vision assisted/test run mode.
The price of our PCB Depaneling Router with CCD Camera System is negotiable and the package is plywood case. We can deliver the product within 7 days after payment confirmation and we accept payment terms like T/T, L/C,paypal. Moreover, our PCB Depaneling Router with CCD Camera System has a supply ability of 100 Sets/Month.
We provide comprehensive technical support and services for our PCB Router Machine. Our team of experts is available to answer questions and provide assistance both before and after purchase. We offer:
We strive to provide the highest quality service and support, so you can get the most out of your PCB Router Machine. If you have any questions or need help, please don’t hesitate to contact us.
The PCB Router Machine is securely packaged in a custom box to ensure safe delivery. The box dimensions are 600mm (L) x 600mm (W) x 600mm (H). The box includes:
We ship the PCB Router Machine via a reliable courier. The delivery time depends on the destination and is usually 3-5 business days. We provide the tracking number for each shipment.
