Product Details:
Payment & Shipping Terms:
|
| Machine Weight: | 500kgs | PCB Material: | FR1, FR4, MCPCB,etc. |
|---|---|---|---|
| Panel Thickness: | 0.5-3.5mm | Loading/Unloading: | Manual |
| Panel Location: | Located By Tooling Holes Or Edges Of PCB | Programming: | Vision Assisted Point To Point Manual Teaching |
| Spindle Motor: | KAVO Spindle Motor | Routing Bit: | 0.8/1.2/1.5/1.8/2.0mm |
| High Light: | KAVO Spindle Motor PCB Router Machine,PCB Router Machine With CCD Camera,Video Camera PCB Router Machine |
||
The PCB Router Machine, also known as PCB Routing Equipment, is a powerful and efficient depaneling router with a CCD Camera System and Windows 7 operating system. It has a resolution of ±0.01mm and a routing bit size of 0.8/1.2/1.5/1.8/2.0mm, offering superior accuracy and repeatability of ±0.02mm. It supports dual workstation with nest fixture or pin fixture for board positioning. This machine is designed for high-speed and precise PCB processing, and is suitable for various industries like automotive, medical, electronics and telecom.
| Property | Value |
|---|---|
| Editing Function | Dry Run Vision Assisted / Test Run Mode |
| Manipulator Repeatability | ±0.02mm |
| Machine Dimension | 113*140*108cm |
| Dust Filtration System | 3KW Vacuum Cleaner |
| Spindle Motor | KAVO Spindle |
| Working Table | 2 |
| Routing Bit | 0.8/1.2/1.5/1.8/2.0mm |
| Tool Change | Manual |
| Programming | Vision Assisted Point To Point Manual Teaching |
| Power | 220V, 4.2KW |
| Product Name | PCB Depaneling Router with CCD Camera System Printed Circuit Board Router PCB Depaneling Router |

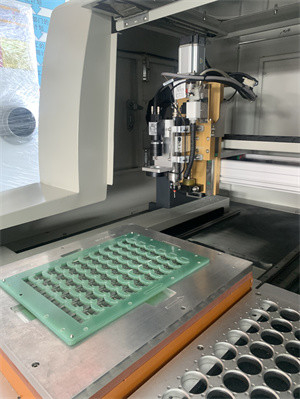

Chuangwei PCB Router Machine is a stand-alone CNC PCB router equipment with CCD camera system. It has high resolution CCD video camera to ensure accuracy and stability for the application. The working table of the PCB router is 2 and the machine weight is 500kgs. It comes with CE and ISO certification. The standard working area is 320*320mm,450*350mm,etc.
The minimum order quantity of Chuangwei PCB Router Machine is 1 set and the price is negotiable. The delivery time is 7 days after payment confirm and the payment terms are T/T, L/C, paypal. The packaging details is plywood case and the supply ability is 100 sets/month.
Chuangwei PCB Router Machine can be used for PCB depaneling application. It can router and depanel PCBs with smooth edges, sharp corners and precise dimension. The PCB Router is suitable for PCB depaneling process of cutting, engraving, drilling, de-burring and milling. It can be used to process various kinds of materials such as FR4, Aluminum Base, etc.
Chuangwei PCB Router Machine is a great choice for PCB depaneling router with CCD camera system, stand alone CNC PCB router machine and PCB router depaneling equipment.
Chuangwei is proud to present our world-leading PCB Router Machine/PCB Routing Equipment.
We offer the highest quality and the most reliable online or offline PCB Router depaneling machine, pcb depaneling router. It has a resolution of ±0.01mm and can be used with FR1, FR4, MCPCB, etc. This machine is equipped with multiple editing functions such as dry run vision assisted and test run mode, and it also comes with five different routing bits of 0.8/1.2/1.5/1.8/2.0mm.
Our PCB Router Machine/PCB Routing Equipment is CE and ISO certified and we accept a minimum order quantity of 1 set. Prices are negotiable and we can deliver our machines within 7 days after payment confirmation. Payment can be made through T/T, L/C, or Paypal. We offer a monthly supply of 100 sets.
Place of Origin: Dongguan
Certification: CE ISO
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Case
Delivery Time: 7 days after payment confirm
Payment Terms: T/T, L/C,paypal
Supply Ability: 100 Sets/Month
PCB Router Machine technical support and services include:
