Product Details:
Payment & Shipping Terms:
|
| Loading/Unloading: | Manual | Dust Filtration System: | 3KW Vacuum Cleaner |
|---|---|---|---|
| Panel Thickness: | 0.5-3.5mm | PCB Material: | FR1, FR4, MCPCB,etc. |
| Routing Bit: | 0.8/1.2/1.5/1.8/2.0mm | Editing Function: | Dry Run Vision Assisted / Test Run Mode |
| Spindle Motor: | KAVO Spindle | Tool Change: | Manual |
| High Light: | Manual PCB Router,2 Workstation PCB Router,Stand Alone PCB Router Machine |
||

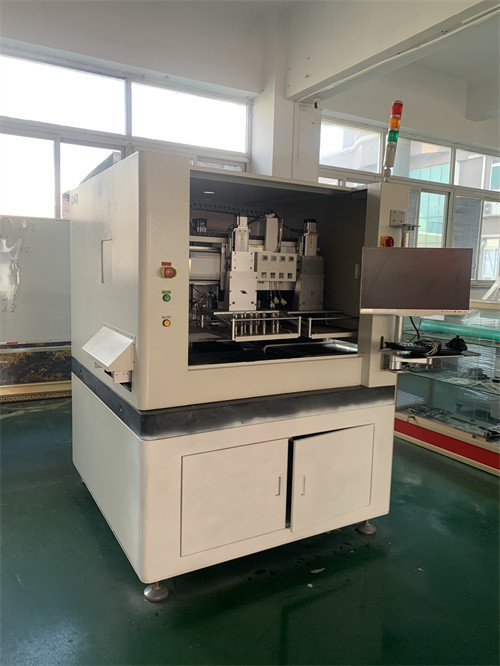

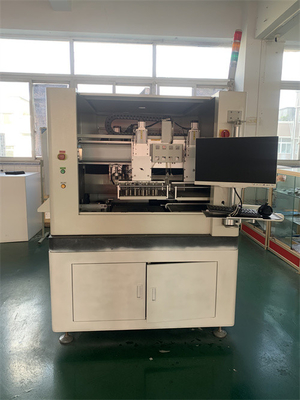

The PCB Router Machine, also known as PCB Routing Equipment, is a stand-alone CNC PCB Router Machine with a vision-assisted point-to-point manual teaching feature for precise and accurate routing of printed circuit boards. It is the perfect PCB depaneling router with a dry run vision-assisted test run mode and a wide range of routing bits from 0.8mm to 2.0mm. The PCB Router Machine is backed by a one-year warranty and is ideal for depaneling and routing of printed circuit boards.
| Parameter | Technical Details |
|---|---|
| Editing Function | Dry Run Vision Assisted / Test Run Mode |
| Board Positioning | Dual Workstation With Nest Fixture Or Pin Fixture |
| Panel Thickness | 0.5 - 3.5mm |
| Vision System | High Resolution CCD Video Camera |
| Power | 220V, 4.2KW |
| Routing Bit | 0.8/1.2/1.5/1.8/2.0mm |
| Resolution | ±0.01mm |
| Standard Working Area | 320*320mm,450*350mm,etc. |
| Dust Filtration System | 3KW Vacuum Cleaner |
| Loading/Unloading | Manual |
Chuangwei PCB Router Cutting Machine is a professional tool designed for the precise routing of printed circuit boards (PCBs). It is ideal for cutting FR1, FR4 and MCPCB materials. This router machine adopts manual tool change and dual workstation with nest fixture or pin fixture for board positioning. It is CE and ISO certified and comes with a minimum order quantity of 1 set. The price is negotiable. It is packaged in plywood cases and the delivery time is 7 days after payment confirmation. Payment terms include T/T, L/C and Paypal. It has a supply ability of 100 sets per month and a machine weight of 500kgs. Its standard working area is 320*320mm, 450*350mm, etc.
Chuangwei PCB Router Cutting Machine is suitable for different PCB depaneling purposes, such as cutting, routing, milling, drilling, trimming and engraving in the electronics industry. It can precisely process complex and hard-to-reach areas of a PCB without damaging the components on the board. With its high-precision routing capabilities, it can provide high-precision grooves with a smooth and burr-free surface. It is suitable for a variety of PCB materials and can be used for a variety of applications.
Chuangwei PCB Router Cutting Machine is an ideal choice for those looking for a reliable and efficient pcb cnc router or pcb depaneling router. It provides reliable performance, great accuracy and smooth operation. All of these features make it one of the most preferred machines in the electronics industry. It is a cost-effective solution for PCB routing and depaneling.
Brand Name: Chuangwei
Place of Origin: Dongguan
Certification: CE ISO
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 7 days after payment confirm
Payment Terms: T/T, L/C,paypal
Supply Ability: 100 Sets/Month
Panel Thickness: 0.5-3.5mm
Manipulator Repeatability: ±0.02mm
Power: 220V, 4.2KW
Tool Change: Manual
Panel Location: Located By Tooling Holes Or Edges Of PCB
PCB Depaneling Router with CCD Camera System: It can realize accurate and fast cutting, and also ensure man-machine safety.
PCB CNC Router: Cutting performance is excellent, which greatly improves the accuracy and finish of the product.
PCB Router Depaneling Equipment: The process is simple, fast and easy to operate.
We provide comprehensive technical support and services for our PCB Router Machine. Our team of experienced engineers and technicians are committed to providing you with the highest quality support and services to ensure your machine is running smoothly and efficiently, so you can get the most out of your investment.
We offer a variety of technical support options to meet the needs of our customers. Our team of experienced engineers and technicians are available to provide on-site repair and maintenance services. We also offer remote support via phone, email, and online chat.
We provide comprehensive training and education services to ensure that our customers are able to use their machines effectively. We offer a variety of courses and workshops designed to help users get the most out of their machines. Our experienced instructors provide hands-on instruction in the use and maintenance of the PCB Router Machine to ensure users are well-equipped to use the machine.
We are committed to providing the best customer service possible. Our customer service team is available to answer any questions or concerns you may have. We can also provide advice and assistance with selecting the right machine for your needs.
PCB Router Machine Packaging and Shipping:
All PCB Router Machine products are shipped in a secure and robust packaging, ensuring they arrive in perfect condition. The following items are included in every package:
We offer a variety of shipping options, including ground, air, and international shipping. All orders are processed in 1-2 business days and are shipped out as soon as possible. Tracking information will be emailed to you when the order is shipped.
