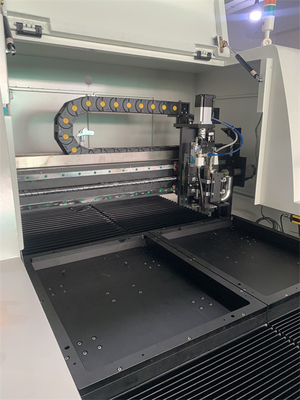

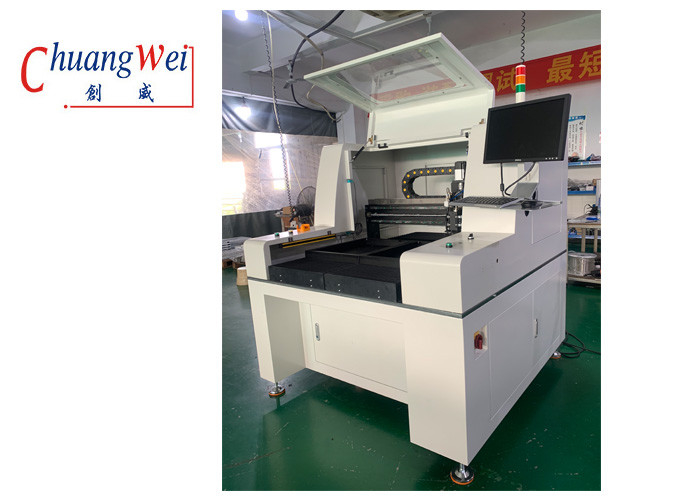

MCPCB Material CNC PCB Router Machine With Standard Working Area

Product Description:

The PCB Router Machine is an online or offline depaneling router designed for cutting and routing of printed circuit boards (PCBs). It features a standard working area of up to 320*320mm and 450*350mm, making it ideal for medium- to large-sized PCBs. It provides Vision Assisted Point To Point Manual Teaching programming, allowing for precise and accurate routing control. The panel thickness range is between 0.5-3.5mm, and a variety of routing bit sizes are available, including 0.8/1.2/1.5/1.8/2.0mm. The PCB Router Machine also offers panel locating by tooling holes or edges of the PCB. It is a reliable and efficient pcb depaneling router cutting machine for printed circuit board fabrication.

Features:

• Product Name: PCB Router Machine
• PCB Depaneling Router with CCD Camera System
• PCB Router Cutting Machine
• PCB Router Depaneling Equipment
• Machine dimension: 113*140*108cm
• Panel Thickness: 0.5-3.5mm
• Vision system: High Resolution CCD Video Camera
• Routing Bit: 0.8/1.2/1.5/1.8/2.0mm

Technical Parameters:

Applications:

Chuangwei PCB Router Machine is a professional routing equipment for printed circuit board production with high precision. It is designed for PCB depaneling, testing, drilling and cutting. With its high resolution CCD video camera system and vision assisted point to point manual teaching programming, the accuracy of the router machine can be guaranteed. Certified by CE ISO, the router machine is reliable and safe for users.

The PCB Router Machine is equipped with an editing function, allowing users to do dry run vision assisted or test run mode. The working area is flexible from 320*320mm to 450*350mm, and other customized sizes are available. The machine is made of superior materials and components, and its minimum order quantity is 1 set. The price is negotiable and the delivery time is 7 days after payment confirmation. The payment terms are T/T, L/C, Paypal and the supply ability is 100 sets per month.

Chuangwei PCB Router Machine is the ideal routing equipment for PCB depaneling, testing, drilling and cutting. It is perfect for users who are looking for a high-precision pcb cnc router, PCB Depaneling Router with CCD Camera System, printed circuit board router machine or a high-precision PCB router.

Customization:

Chuangwei, a brand name originated from Dongguan, provides excellent customized service for PCB Router Machine. It is certified with CE ISO and is available in minimum order quantity of 1 set. The price is negotiable and it is packed in plywood case. The delivery time is 7 days after payment confirm and payment terms are T/T, L/C, paypal. The supply ability is 100 Sets/Month and it consumes 220V, 4.2KW power. It is located by tooling holes or edges of PCB and tool change is manual. The manipulator repeatability is ±0.02mm and machine dimension is 113*140*108cm.

Chuangwei's automatic router machine for printed circuit board is the perfect choice for you. It can provide fast and accurate automatic routing and ensure the best performance on your PCBs. With our years of experience and expertise, we are able to deliver the highest quality of PCB router machines.

Support and Services:

We provide technical support and services for our PCB Router Machines. Our experienced team of engineers will help you with any of the following:

• Diagnosing any defects in the machine
• Provide troubleshooting and repair services
• Install and configure the machine
• Provide regular maintenance and tuning
• Provide technical advice on the machine

We strive to provide world-class support and services to ensure that our customers are always satisfied with their PCB Router Machine.

Packing and Shipping:

PCB Router Machine Packaging and Shipping

The PCB router machine is shipped in a compressed form in a strong box with a set of packing materials. The box is made of corrugated cardboard for extra strength and cushioning, and is resistant to water and dust. The box also includes several foam inserts to protect the machine and its components during transit. The box is also marked with a "Fragile" sticker and a unique serial number to ensure that it is handled correctly.

The PCB router machine is also shipped with a user manual, a warranty card, and other documents necessary for operation and maintenance of the machine. Additionally, the machine is shipped with all necessary accessories, such as drill bits, routers, and cutting tools.

The PCB router machine is shipped with a tracking number, so customers can easily track the shipment. The tracking number also allows customers to track the status of the delivery, such as arrival time and location.
