| Loading/Unloading: | Manual | Dust Filtration System: | 3KW Vacuum Cleaner |
|---|---|---|---|
| Panel Location: | Located By Tooling Holes Or Edges Of PCB | Tool Change: | Manual |
| Warranty: | One Year | Vision System: | High Resolution CCD Video Camera |
| Power: | 220V, 4.2KW | Working Table: | 2 |
| High Light: | 220V Power PCB Depaneling Router,2.0mm Bit PCB Depaneling Router,KAVO Spindle PCB Router Machine |
||

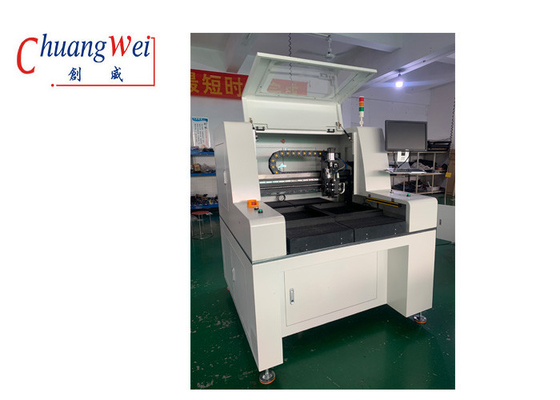

The PCB Router Machine is a stand-alone CNC router designed for the precise routing of printed circuit boards (PCBs). It is a dedicated PCB router depaneling equipment featuring a powerful KAVO spindle motor, a dust filtration system with 3KW vacuum cleaner, and an advanced manipulator with repeatability of ±0.02mm. This PCB router machine runs on 220V, 4.2KW of power and comes with a one-year warranty.
This PCB Router Machine has been designed to provide a reliable and accurate performance for the routing of printed circuit boards. It features a dust filtration system with a 3KW vacuum cleaner to ensure a clean working environment and minimize the risk of contamination. Moreover, its advanced manipulator with a repeatability of ±0.02mm ensures precise and consistent results. Furthermore, the KAVO spindle motor provides powerful and efficient performance.
The PCB Router Machine is the perfect solution for a variety of PCB routing applications. It is reliable, accurate, and easy to use, making it an ideal choice for any PCB routing project. It also comes with a one-year warranty, giving you the peace of mind that your investment is protected.
| Name | PCB Router Machine/PCB Routing Equipment |
|---|---|
| Standard working area | 320*320mm,450*350mm,etc. |
| Panel Location | Located By Tooling Holes Or Edges Of PCB |
| Loading/Unloading | Manual |
| PCB Material | FR1, FR4, MCPCB,etc. |
| Programming | Vision Assisted Point To Point Manual Teaching |
| Tool Change | Manual |

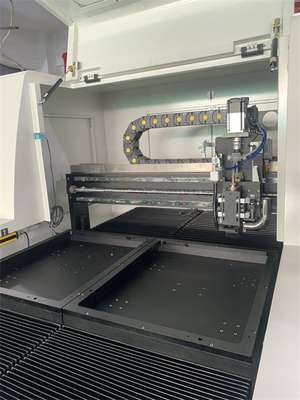

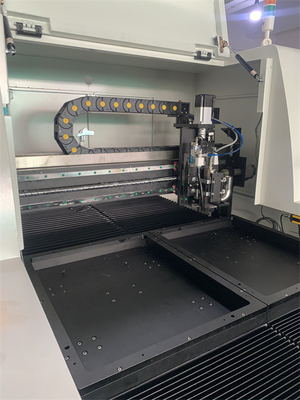

| Board Positioning | Dual Workstation With Nest Fixture Or Pin Fixture |
| Working Table | 2 |
| Manipulator Repeatability | ±0.02mm |
| Others | Printed Circuit Board Router, Automatic Router Machine, PCB Depaneling Router with CCD Camera System |
Chuangwei provides PCB Router Machine with high quality and reliable performance. With CE&ISO certification, the PCB Router Machine is produced in Dongguan, China, with minimum order quantity of 1 set and price negotiable. The package details is plywood case and delivery time is 7 days after payment confirm. Payment terms are T/T, L/C,paypal. The supply ability is 100 Sets/Month.
The PCB Router Machine accepts materials like FR1, FR4, MCPCB,etc. It has a weight of 500kgs and routing bit of 0.8/1.2/1.5/1.8/2.0mm. The standard working area is 320*320mm,450*350mm,etc. The manipulator repeatability is ±0.02mm.
It is widely used as PCB Router Depaneling Equipment, PCB Router Cutting Machine, PCB Depaneling Router with CCD Camera System.
Brand Name: Chuangwei
Place of Origin: Dongguan
Certification: CE ISO
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 7 days after payment confirm
Payment Terms: T/T, L/C,paypal
Supply Ability: 100 Sets/Month
Machine weight: 500kgs
Board Positioning: Dual Workstation With Nest Fixture Or Pin Fixture
Warranty: One Year
PCB Material: FR1, FR4, MCPCB,etc.
Dust filtration system: 3KW Vacuum Cleaner
We provide technical support and service for PCB Router Machine products. Our experienced technicians will diagnose and repair any technical issues you may encounter with your PCB Router Machine. We offer phone support as well as onsite service, to ensure that you get the best service possible. We also offer regular software updates, so that your machine is always running at peak performance.
In addition to technical support, we also offer customer service. Our customer service team is available to answer any questions you may have, and to help you troubleshoot any issues you may be having with your PCB Router Machine. We are committed to providing the best customer service experience possible.
If you ever have any problems with your PCB Router Machine, please do not hesitate to contact us. We are here to help you get the most out of your machine.
