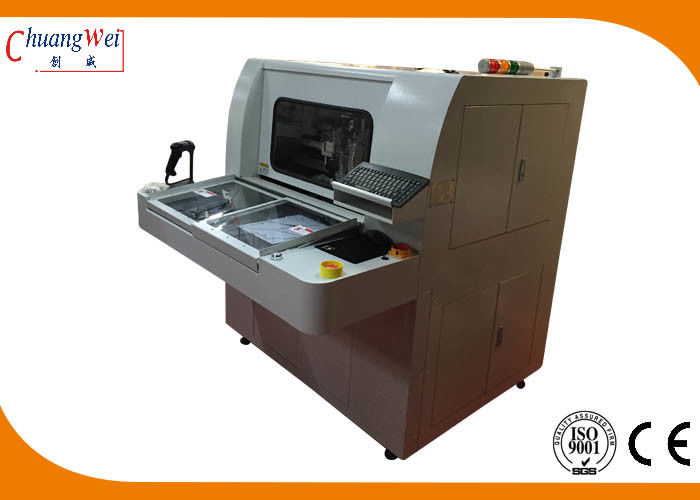

PCB Depaneling PCB Router Machine for Automotive Electronics Industry TAB Panels

PCB Depaneling PCB Router Machine for Automotive Electronics Industry TAB Panels
PCB Depaneling PCB Router Machine for Automotive Electronics Industry TAB Panels PCB Depaneling PCB Router Machine for Automotive Electronics Industry TAB Panels PCB Depaneling PCB Router Machine for Automotive Electronics Industry TAB Panels

Large Image :  PCB Depaneling PCB Router Machine for Automotive Electronics Industry TAB Panels

Product Details:

Place of Origin: China
Brand Name: ChuangWei
Certification: CE
Model Number: CW-F02

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 5-14 working days
Supply Ability: 100 sets/month
Detailed Product Description
Color: White Spindle: KAVO
Spindle Speed: 60000RPM PCB Material: FR4, CEM, MCPCB
PCB Thickness: 3.0mm Name: PCB Depaneling
High Light:

pcb depaneling router

,

printed circuit board router

PCB Depaneling PCB Routing Equipment for Automotive Electronics Industry TAB Panels



PCB Depaneling Advantages:



1. Using double slide into place device, reduce the cutting waiting times, increase production capacity.

2. Avoid artificial flap caused by the cracking of tin and part damage and other issues.

3. Avoid using blunt or fold, produced by mechanical stress.

4. Suitable for the finished plate arc and line cutting.

5. Suitable for small pieces of the final cutting, base plate of a mobile phone, PDA, PC interface card and so on.



PCB Depaneling Parts List



I. Hardware
SPINDLE KAVO spindle
CCD Sony 520 line industrial cameras
LENS Computar EX2C
Screw TBI Precision ground ball screw imports
Guide HIWIN widening Imported linear guide rail
MOTOR JiaBao LCF Series
I/O CONTRONL CARD HFC PCI-9074
DRIVER CONTRONL CARD HFC PCI-9074
I/O CARD PCI-9074-64pcs/-38pcs
Static cleanup STATIC-ST401A Series
Computer (RMC-8401/6113LP4/300ATX/8651VNA/P4 2.8G 2CPU(S)/1G DDR/80G)
Machine interface AOC LCD17",Logitech mouse
2. software
Control system Windows XP Professional (Service3,v.3244)
Operation GUI English Windows 7
Program edit Inline
Vision system CCD AOTU offset
Control system F 1.2.88 version


PCB Depaneling Parameters



Overall
Dimensions(W*D*H) 1170mm*1250mm*1150mm
Weight 450KG
Height offset 60~110mm
Manipulator
Motor type JiaBao series
Positioning repeatability 0.001mm
Work station
PCB fixation standard,specialization
PCB loading/unloading manual
PCB size (max) 300*280mm
PCB thick (max) 5mm
Fixturing
Rigidity fixturing Use client fixture
Fixturing fixation machinery
Spindle Motor
Power 150W
Spindle 60000rpm/min
Protect self/wind cooling
Change cutter Specialization
Routing capability
Cutting speed(max.) 80mm/s
Driving speed(max.) 2500mm/s
Precision of cutting 0.01mm
Vacuum System
Vacuum power 3.5KW AC 380V
Vacuum plumb
Utilities
Power 2.0KW AC380V
Air supply 4-6KG/cm2
Programming
Program edit Inline
Function edit Line,arc,circula,U-curve
Program storage HDD
Vision system SONE colour CCD
milling cutter offset AUTO
Vacuum setup AUTO
Operation Monitors
Iindicator Iindicator Machine state
tool check Automatic detection tool life, the use of time testing
Motor protect Have overheating, overload, low voltage protection function
motor over loading check Have Overload, the line is normal, low voltage protection function
Tool usable time Automatic detection tool life,
Data statistic Separate board model, separating count, diverse counting methods
Error record Software automatically records all alarms memory of machines
III. Accuracy
Axis precision 0.001mm
Cutting precision 0.1mm
IV. Safety
Working area protect With four sealed protection
Door sensor Front and rear safety door micro-switch sensor (optional)
Exigency stop button



PCB Depaneling Spindle Photo:


PCB Depaneling PCB Router Machine for Automotive Electronics Industry TAB Panels 0
