Germany KAVO Spindle PCB Separator PCB Router with Dual 300*280mm Working Tables

China Germany KAVO Spindle PCB Separator PCB Router with Dual 300*280mm Working Tables supplier
Germany KAVO Spindle PCB Separator PCB Router with Dual 300*280mm Working Tables supplier Germany KAVO Spindle PCB Separator PCB Router with Dual 300*280mm Working Tables supplier

Large Image :  Germany KAVO Spindle PCB Separator PCB Router with Dual 300*280mm Working Tables

Product Details:

Place of Origin: China
Brand Name: ChuangWei
Certification: CE
Model Number: CW-F01-S

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 5-14 working days
Supply Ability: 100 sets/month
Contact Now
Detailed Product Description
Color: White Spindle: KAVO
Spindle Speed: 60000RPM PCB Material: FR4, CEM, MCPCB
PCB Thickness: 3.0mm Name: PCB Separator

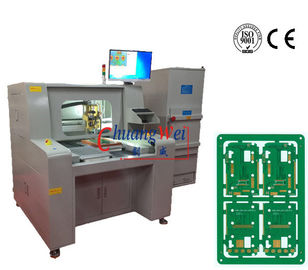

PCB Separator PCB Router with Twins 300*280mm Working Tables



This PCB separator is the answer for hassle-free PCB depaneling through the employment of a router bit that minimizes stress on components. The high speed spindle included in the machine speeds up cutting and maintains precision, while also allowing for flexible panel designs with various cutting patterns. Our PCB depaneler separator will also cut down on bit replacement with our router bit depth adjustment system, which automatically shifts up to 5 depth levels. The PCB router bit maximum cutting speed is 50mm per second, while the traveling speed is a maximum of 800mm per second. With a customize made fixture based dust vacuum system, the system is sure to be clean and efficient. This prevents warping, and takes full advantage of vacuum strength for the most effectual dust collection.



PCB Separator Specification



Model CW-F01-S
Standard working area 350*350mm
Power 220V, 4.2KW
Manipulator Repeatability ±0.02mm
Resolution ±0.01mm
Board Positioning Dual workstation with nest fixture or pin fixture
Panel Location Located by tooling holes or edges of PCB
Loading Manual
Unloading Manual
Panel Size 450*350mm
Panel Thickness 0.5-3.5mm
Spindle motor 0.5kW Morning Star Spindle
Tool Change Manual
Dust filtration system 3KW Vacuum Cleaner
Vision system High resolution CCD video camera
Programming Vision assisted point to point manual teaching
Editing Function Dry run vision assisted / test run mode
Machine weight 500kgs
Machine dimension 113*140*108cm






PCB Separator Features
1. X10 zoom-in image makes programming easier&increase the accuracy of point setting

2. Two sliding table provides simultaneously in-and-out movement to reduce the tack time for better

productivity.

3. AUTO MARK offset system.CCD image could check&simulate the path or routing to reduce
unnecessary mistake before cutting.

4. Has routing bit life time checking and alarm system to remind operator to change routing bits
when it finish 120M cutting. And routing bit first 2mm cut the first miling point, middle 2mm cut the second
milling point, the last 2mm cut the third milling point to increase its life time

5. CCD image could check&simulate the path or routing to reduce unnecessary mistake before cutting
