Color: | White | Weight: | 500kgs |
---|---|---|---|
Precision: | ±0.02mm | Control Mode: | IPC+control Card |
Repeat Accuracy: | 0.02mm | Rotation Angle: | ±180º |
Dimension: | 1010*1360*1675mm(L*W*H) | Coating Scope: | L580*W580mm |
Name: | Conformal Coating Machine |

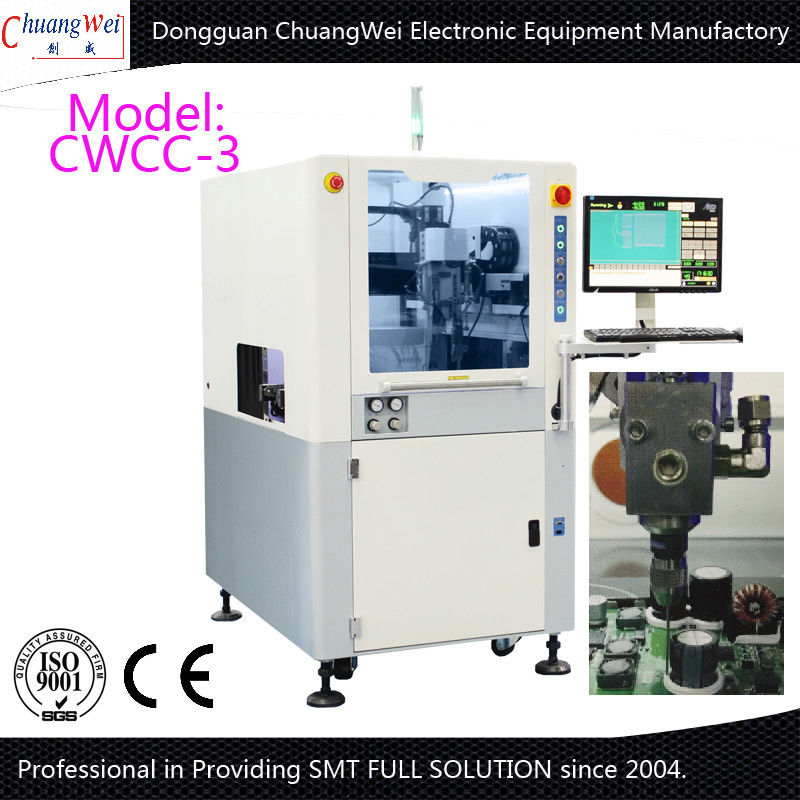

Nozzles Automatic Cleaning Device Conformal Coating Machine with Coating Scope L580*W580mm
Technical parameter
Model |
CWCC-3.3L |
External Size L*W *H |
1010*1360*1675mm(L*W*H) |
Weight |
500KG |
Control Mode |
IPC+control card |
Software |
CW software+Windows |
Programming |
Teaching box |
Axis |
X,Y,Z |
Drive |
Servo motor +ball screw |
Max. move speed |
800mm/s |
Coating scope |
L580*W580mm |
Max .PCB height |
up 90 down 90mm |
Rotation angle |
±180º |
Positioning accuracy |
0.02mm |
Repeat accuracy |
0.02mm |
Conveyor quantity |
1 |
Width adjusting mode |
auto |
Width adjust speed |
250mm/min |
Conveyor height |
900±20mm |
Conveyor speed |
2-5mm/min |
Conveyor direction |
L-R(R-L optional) |
PCB edge space |
≧5mm |
Conveyor motor power |
DC24V 69W |
Communication port |
SMEMA port |
Nozzle quantity |
2 sets |
Nozzle type |
pin type spray nozzle,film nozzle |
Tilt angle |
0~35º |
Single coating width |
2-30mm(According to the selected value) |
Material volume |
5L |
Draft capacity |
15 m3 /min |
Power supply |
AC220V 50/60Hz |
Total power |
2.2KW |
Pressure |
0.4Mpa |
Programming panel |
Standard |
Material Detection |
Standard |
Camera location |
Standard |
Clamp device |
Standard |
Bar code |
Standard |
UPS |
Standard |
Waste recycling |
Standard |
Features:
1.Motion controller use computer+,WINDOWS operating system, failure alarming menu
2.Available by manual teaching programming which is easy and quick
3.Integral steel moving platform, to ensure the smooth running
4.X, Y, Z three-axis motion
5.Servo motor+ball screw drive
6.Independent material container
7.Equip with gas collection, exhausting devices
8.SMEMA port to connect with other devices
9.Run precision of 0.02mm,automatically eliminate difference
10.Nozzles automatic cleaning device
11.Special aluminum alloy rail and stainless steel conveyor chain
Application:
PCBA surface coating, dam process, , DIP components fixing.
Nozzle option and function:
![]() |
![]() |
![]() |
Tilt for dispensing | Tilt for coating | |
![]() |
![]() |
|
Can equipped with 2 sets of nozzle. |
Big area coating |
Components fixing, |
![]() |
![]() |
|
Automatic purging |
Automatic solbent after purging |
Why us:
1. Engineers available to service machinery oversea.
Engineers are available to be sent to freign countries to do machinery training and offer technical support.
2. One year warranty for the machines except accessories.
Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge.
3..Effective customer service.
All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers
4. Mature technique & forerunner to process makes high quality machinery.
As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb router machine
Our R&D team continuously upgrade the existing machines to meet the market development trend
