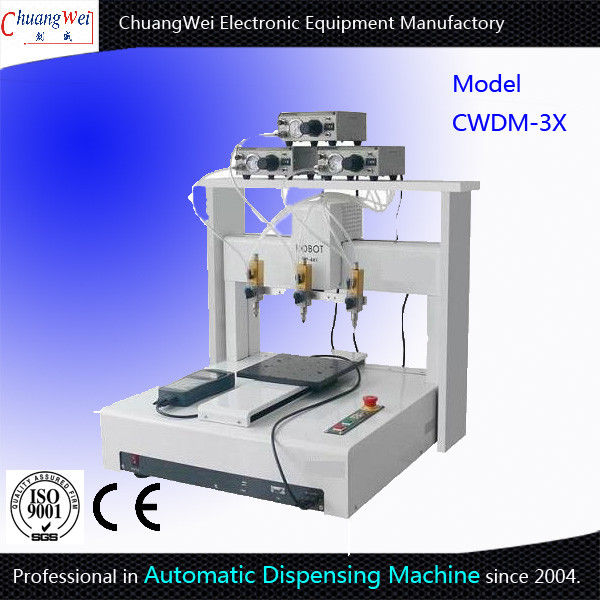

PCB Dispensing Head Automated Dispensing Machines 0.01 Mm / Axis Dispensing Systems
Port |
Shenzhen |
Minimum Order Quantity |
1 Set/Sets |
Supply Ability |
5000 Sets per Month |
Payment Terms |
T/T,Western Union,MoneyGram |
Product Details
Place of Orign |
Guangdong China (Mainland) |
Brand Name |
Chuangwei |
Model Number |
CWDM-3X |
Packaging |
1 Set/carton |
Delivery Detail |
10 days |
Product Synopsis:
may the simple addition automatic control part become I/O PORT which multi-purpose production equipment the radio station itself provides to be possible to let you install the automatic control part, for example: Air cylinder, gripping jaw, real suction mouth…And so on, satisfies the different state the production process demand. independently designs the production to provide you most specialized service the specialized soft hardware research and development team and the efficiency produces from the group, provides you the non-extra worries the components to prepare materials and the post-sale service, lets your machine not be able to become the orphan.not only the this product best-selling more than 40 countries, are subject to the customer to like receiving home most factories with CWDM Series the loves to use, penetrates the ODM manufacture for sale abroad to the world more than 40 countries, becomes the desk-top rubber equipment's world first brand. is suitable industry of for various types rubber demand the general common UV rubber, Silicon, EPOXY, the red rubber, the silver rubber, a.B rubber, the COB black rubber, leads the bakelite, the radiation aluminum paste, the instantaneous rubber…And so on a rubber, all may use in OP-E on the series equipment.
Models |
CWDM-X |
CWDM-X331 |
CWDM-X441 |
Working Range X/Y/Z(mm) |
200/200/50 |
300/300/100 |
400/400/100 |
Load Y-AXIS / Z-AXIS |
8 kg / 4 kg |
10 kg / 5 kg |
|
X&Y / Z (mm/sec) |
0.1-800/350 |
0.1-800/350 |
|
Resolution |
0.01 mm/Axis |
||
Repetitive Positioning Accuracy |
+/- 0.01 mm/ Axis |
||
Program Capacity |
At least 100 group, each group of 4000 points |
||
Data Storage Type |
CF Card |
||
Program Display |
Teach Pendant LCD |
||
Motor System |
Micro step advancement in grade precision motor |
||
Control Method |
PTP & CP |
||
Interpolation Function |
3 axis (3D three-dimensional space random way all may) |
||
Programming Method |
Teaches box/PC |
||
I/O Signals Port |
16 Inputs / 160 Outputs |
||
External Control Interface |
RS232 |
||
Power Supply |
AC110 ~ 220V 300W |
||
Working Temperature |
5 - 40 C |
||
Working Relative Humidity |
20 - 90% no condensation |
||
Dimensions (WxDxH mm) |
255 x 410x 485 |
455 x 480 x 560 |
555 x 580 x 560 |
Robot Weight (kg) |
45 kg |
55 kg |
70 kg |
Application
Chevrons, fridge magnets, key chains, power supply, cell phone, energy saving light, LED, DVD, DC, Switch, Connector, relay and other industries needing fluid glue solder.
Applicable objects: Mobile phones, computer case, CD-ROM driver, printer, ink folder, PCB board, LCD, LED, DVD, digital camera, switches, connectors, relays, radiators, semiconductors, clocks, toys and medical appparutus.
Glue type
Silica gel, EMI conductive adhesive, UV glue, AB glue, glue, epoxy adhesive, sealant, hot glue, grease,
glue, red glue, silver paste, thermal paste, solder paste, transparent paint,
Instructions
1, Keyboard control in Chinese and English version, easy operation and maintenance.
2, Major functions: Drawing point, line, surface ,arc, circle,ellipse,irregular curve continuous complement and triaxial linkage.
3, Be able to set size of gluing area, speed of gluing, dispensing time, stopping glue time. Stable glue exudation without glue leaking and dripping.
4, According to the production process, work platform can be installed with positioning PIN, glue guns, baseboard heating temperature controlling device.
5, This machine can set up quickly and easy to operate, can save more time and increase production.
6, The importing function supports AUTO CAD pattern, more accurate and reliable.
7, Handheld LCD teach pendant,easy to program and control.
8, High degree of automation, easy operation which the staff can master severl equipments, Reduce the labor intensity of works ,and leads to increased efficiency and develop a competitive advantage of company
Auto Glue Dispenser/dispensing Machine supplier applicable objects:
Mobile phones, computer case, CD-ROM driver, printer, ink folder, PCB board, LCD, LED, DVD, digital camera, switches, connectors, relays, radiators, semiconductors, clocks, toys and so on
Installation:
The automatic dispenser machine can satisfy various requirements for dispensing, only need to choose different fixtures and math with dispensing systems.
The following installation instruction is based on the 30CC needle cylinder clamp and simple type dispensing system as a model.
1. The standard accessories include the 30CC needle cylinder clamps, and they can be applied to 30CC or 55CC needle cylinder. If you want to use other needle cylinder, then you have to purchase other needle cylinder clamps appropriate.
2. Fix the needle cylinder clamps onto the Z axle. Put the hexagon socket flat head screws through the holes of the clamps and then lock on the Z ground side. The clamp has a couple of holes to select, according to the specific requirements .
3. Connect the signal port(three holes) of the dispenser machine on the backside to the signal port in the controller with dispenser signal line. The signal port in the dispenser machine is the same one that connecting with the foot-plate. Thus a problem may appear that the port can not be shared, if your dispenser machine is not purchased along with the matching machine. In such case, please contact the Extruder supplier for joint exchanging.
4. Connect the compressed air source to the dispenser controller, put the needle cylinder collet onto the needle cylinder and tighten it, and put the needle cylinder into the needle cylinder clamps and lock the screws which are used to fix the needle cylinder.( Please don’t over tighten, in case of deformation. And once it deforms, the piston then cannot fit with the inner side of the needle cylinder, and cause air leakage.)
5. Connect the handheld programmer to the machine.
6. Connect the dispenser machine and the controller to 220V power source.
7. Do make sure the pressure pipe of the needle cylinder collet and the power source will not influence the motion of each axles and working plate.
8. Congratulations for completing primary set of the dispenser machine, please learn teaching mode operation according to the following chapters.
