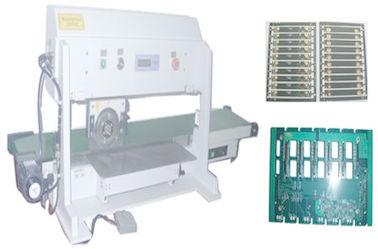

Automatic Pcb Depanelizer For Pcb Assembly, Pcb Depaneling Machine With Converoy

Automatic Pcb Depanelizer For Pcb Assembly, Pcb Depaneling Machine With Converoy

Large Image :  Automatic Pcb Depanelizer For Pcb Assembly, Pcb Depaneling Machine With Converoy

Product Details:

Place of Origin: China
Brand Name: Chuangwei
Certification: CE and certificate of registion
Model Number: CWV-2A

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 3 days after receive the payment
Payment Terms: T/T ,Paypal ,West Union ,L/C
Supply Ability: 300 sets/ month
Detailed Product Description
Cutting Length: 460mm Material For The Blades: High Speed Steel
Warranty: Free For One Year Name: Pcb Depanelizer Machine
MOQ: 1 Set
High Light:

pcb depaneling equipment

,

laser pcb depaneling machine

Automatic Pcb Depanelizer For Pcb Assembly, Pcb Depaneling Machine With Converoy



1. One touch programming of cut length with digital display

2.Separate pre-scored PCB assembly without stress on either PCB or component

3. Separating speed is adjusted by a rotary knob

4. Handle Intermittent scoring or cut-outs

5. Board with projected component can be cut precisely

6. Large stainless steel platform on both side of cutting blade prevents board wobble and table height and angle are adjustable

7. Optional PCB conveyor belt to remove finished board

8. Clearance between circular and linear blades are adjustable to fit different groove depth and compensates for blade wear out .





Specifications for pcb depanelizer machine:



Model:

CWV-2A

pcb depanelizer machine Size:

780 X 460X 560mm

The Longest Minimize:

460mm

Minimize Speed:

100/200/300/500mm/s

Minimize thickness:

0.6-3.5mm

pcb depanelizer Machine Weight:

55Kg





Competitive Advantage:



1. CWV-2A  Pcb depanelizer original manufacturers, price concessions

2. Day technical support services

3. Limit the handling of complaints, half an hour back to customers

4. Depanel Experts, the provision of professional PCB sub-programme

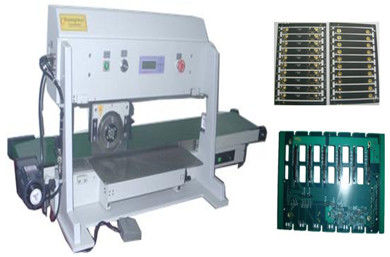

Automatic Pcb Depanelizer For Pcb Assembly, Pcb Depaneling Machine With Converoy 0
