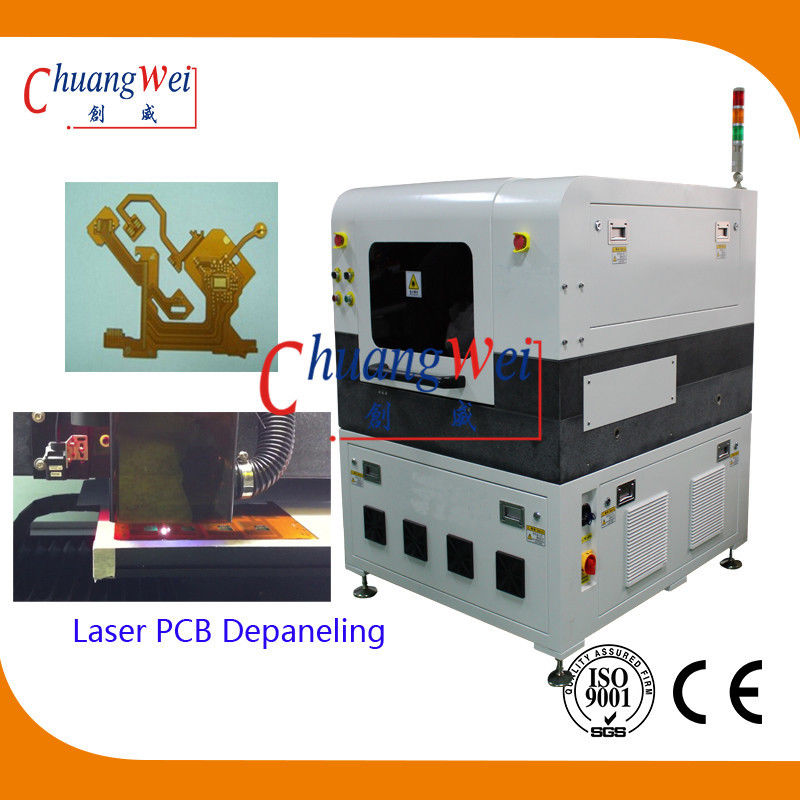

US UV Laser PCB Cutter Machine with High Cutting Precision ±20 μm

US UV Laser PCB Cutter Machine with High Cutting Precision ±20 μm
US UV Laser PCB Cutter Machine with High Cutting Precision ±20 μm US UV Laser PCB Cutter Machine with High Cutting Precision ±20 μm

Large Image :  US UV Laser PCB Cutter Machine with High Cutting Precision ±20 μm

Product Details:

Place of Origin: China
Brand Name: Chuangwei PCB Separator
Certification: CE
Model Number: CWVC-5L

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 5-7 days
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Color: White Laser Power: 12/15W(optional)
Type: UV Working Size: 460*460 Mm
Size: 1480mm*1360mm *1412 Mm Precision: ±20 μm
Laser Brand: USA Or Germany Laser Wavelength: 355nm
Laser Scanning Speed: 2500mm/s (max) Description: Laser Pcb Cutter
High Light:

pcb depaneling equipment

,

laser pcb depaneling machine



US UV Laser PCB Cutter Machine with High Cutting Precision ±20 μm



Laser PCB Cutter Machine Parameter



Parameter















Technical parameters

 Main body of laser 1480mm*1360mm*1412 mm
Weight of machine 1500Kg
Power AC220 V
Laser 355 nm
Laser



Optowave 10W(US)
Material ≤1.2 mm
Precisio ±20 μm
Platfor ±2 μm
Platform ±2 μm
Working area 600*450 mm
Maximum 3 KW
Vibrating CTI(US)
Power AC220 V
Diameter 20±5 μm
Ambient 20±2 ℃
Ambient ＜60 %
The Machine Marble



Laser PCB Cutter Machine Features



1. Neat and smooth edge, no burr or overflow

2. More quick and easy, shorten the delivery time

3. High quality ,no distortion,surface clean& uniformity;

4. Gathering the CNC tech,laser tech,software tech…High accuracy,High speed



Laser PCB Cutter Machine Detailed Photo



US UV Laser PCB Cutter Machine with High Cutting Precision ±20 μm 0



Laser PCB Cutter Machine Advantages



High precision CCD automatic positioning, automatic focusing. Fast and accurate positioning, save time and no worries.



Friendly interface,Simple operation, easy to use, free application; Small size, Save more space; rigorous security design;



Reduce energy consumption, Cost savings.

Cost-effective, fast cutting speed, stable performance



Laser PCB Cutter Machine Application

FPC and some relative materials;

  FPC/PCB/ Rigid-Flex PCB cutting, Camera module cutting;



US UV Laser PCB Cutter Machine with High Cutting Precision ±20 μm 1US UV Laser PCB Cutter Machine with High Cutting Precision ±20 μm 2



More  information welcome to contact us:



Email: s5@smtfly.com or sales@dgwill.com

Mobile/Wechat/WhatsApp: +86-136-8490-4990

Tag:

laser pcb depaneling machine,

pcb depaneling equipment,

pcb laser cutting machine
