Soldering Robot Hot Bar Soldering Machine Desktop soldering robot

Soldering Robot Hot Bar Soldering Machine Desktop soldering robot
Soldering Robot Hot Bar Soldering Machine Desktop soldering robot Soldering Robot Hot Bar Soldering Machine Desktop soldering robot Soldering Robot Hot Bar Soldering Machine Desktop soldering robot

Large Image :  Soldering Robot Hot Bar Soldering Machine Desktop soldering robot

Product Details:

Place of Origin: Dongguang
Brand Name: chuangwei
Certification: CE ISO
Model Number: CWDH-411

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: each set be packed in plywood case
Delivery Time: 1-3 working days
Payment Terms: T/T, Western Union
Supply Ability: 300 per month
Detailed Product Description
Operating Condition: 10-60℃, 40%-95% Working Size: 380*380*80mm
Welding Pressure: 1-10KG X Axis Moving Range: X=380mm
Z/R Axis Moving Range: Z=80mm R=360° Repeatability Precision(Z): ±0.02mm
High Light:

pcb welding machine

,

bonding machine

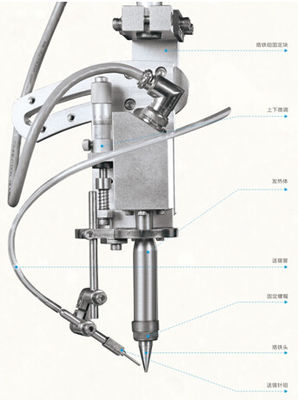

Soldering Robot Hot Bar Soldering Machine Desktop soldering robot



1. multi-axis robot, all using precision stepper motor drive and advanced motion control algorithms, effectively raising campaign end (tip) of the positioning accuracy and repeatability (automatic homing no cumulative error), to achieve the 3D space arbitrary solder accurate location


2.  The machine adopts embedded industrial computer control, you can select a single point/single/circulation solder job


3. simple and convenient way of programming, you can directly enter coordinates joints can teach reproduce solder joint position coordinates. Teach programming is simple to operate, without mechanical preparation areas of expertise hand program so beginners can quickly master the operation essentials. Simple teach pendant can guide the movement of the end (tip) to reach any spot position in 3D space, the operator is no special technical and professional requirements, the realization of human editing operations.


4. Various of welding way, support spot welding and drag welding, all parameters is setted up by user,
meet high difficult welding and micro soldering requirements. All soldering parameters could be read and saved together with welding point coordinates, achieve flexible soldering


5. Welding set arbitrary angle & direction is available, R axis controlled welding set,could be rotated 360
degrees freely.Setting feeding times, pre-heating time, and welding time according to different pads and parts,achieve complex soldering with a variety of soldering points


6. Realizes real-time peripheral devices by 1/0 USB, has error alarm and high speed motion program functions.Intelligent main control program realizes automation and intelligence



Feature:


1. Heating rate could be adjustable for different products


2. Long life time thermode made of titanium alloy, ensure even temperature, fast raising


3. Thermode designed to be horizontal adjustment, ensure even component compression


4. Numerical control temperature, clear and precise


5. Has digital manometes, preset pressure range


6. Controlled by precise PID, phasc-angle driving


7. Less vibration,less noise,voltage does not fluctuate


8. Welding head made of molybdenum alloys, good heat transfer coefficient, abrasion - resistant
