Detailed Product Description
Power Rating: Pulsed(4kw) PID(1.5kw) Working Pressure: 45~75psi
Temperature Control: Self-tuning Pid Control Warranty: Free For One Year
Remark: We Can Arrange To Shipping Machine According To Customers Requirement Item: FPC Hot Bar Soldering Machine
High Light:

bonding machine


pcb soldering machine

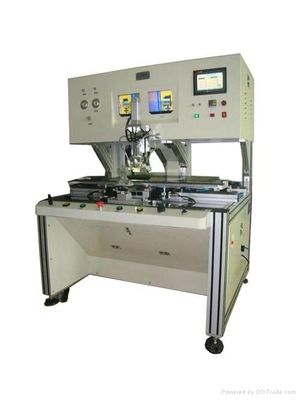

Tv Screen Repair Hot Bar Soldering Machine Pulse Heat Tab Bonding Machine


Single Head Manual platform Automatic Pressure

1) Equipment Model Number:

CW-280GD (Single Head)

2) Device Application :

This equipment is suitable for all kinds of FPC, COF package, the combined dependend TAB with LCD and PCB, is a professional for various size LCD screen ribbon cable damage or fall off naturally under the condition of the high precision equipment for repair.

Screen failure: black screen, white, flower screen, bright line, bright, black line, partial color, display is not complete, low brightness, normal after a period of time display screen or white flowers, weak problems such as the equipment for repair are available.



Technical Parameters


Power AC220v 50~60HZ Bond Head Size Standard 50mm×1.4mm
(can customize and choose)
Power Rating Pulsed(4kw)
alignment system Imports of coaxial optical camera hd counterpoint
Working pressure 45~75psi temperature control self-tuning pid control
Operate mode Touch screen control
(7 inch human-machine interface)
program control Panasonic PLC + servo control
Platform walk way Manual or servo walk
TAB Adjustment X - y - e micrometer three axis adjustment





Maintenance screen size range (inches) Head heating mode Production of precision(mm) capacity(pcs/h) Dimension(mm)
Unlimited size all can support impulse type
≦±0.03 25 1160×850×1500
(LCD platform can expand)


Tv Screen Repair Hot Bar Soldering Machine Pulse Heat Tab Bonding Machine 0




(1)  using imported circuit and pneumatic fittings, Japan's matsushita PLC controller is adopted in the core, by SMC pneumatic components of precision components.

(2)  cylinder part adopts horizontal bar higher precision guide rail combination plan, has the state set shift, the characteristics of the deviation.

(3)  provide a multi-position pulse current systems and control, to meet the different requirements of diversified products for heating power.

(4)  the high precision temperature control system, using PID self-tuning control scheme, can be a period of temperature heating and temperature compensation function in time, the temperature accuracy to + / - 1 ℃, meet the requirement of maintenance process precision of temperature.

(5)  7 inch human-machine interface touch screen control system, which can store multiple brand hot pressing parameters and display the actual temperature curve.

(6)  the built-in vacuum adsorption system, hot pressing head high precision level control device.

(7)  the X axis servo control LCD (step) mobile function, can set up multiple IC point coordinates, can also do Y axis moving, after completion of the FOG straight to FOB process.

(8)  equipped with Japanese high-definition coaxial optical registration system and bring the light system, effective guarantee product registration precision requirement.
