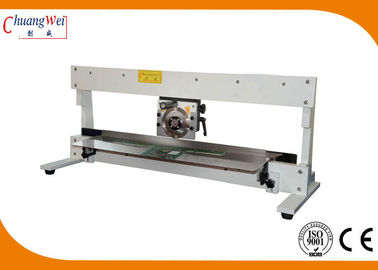

Manual PCB Depaneling Machine with 700mm/460mm Length Linear Blade

Manual PCB Depaneling Machine with 700mm/460mm Length Linear Blade
Manual PCB Depaneling Machine with 700mm/460mm Length Linear Blade Manual PCB Depaneling Machine with 700mm/460mm Length Linear Blade Manual PCB Depaneling Machine with 700mm/460mm Length Linear Blade Manual PCB Depaneling Machine with 700mm/460mm Length Linear Blade

Large Image :  Manual PCB Depaneling Machine with 700mm/460mm Length Linear Blade

Product Details:

Place of Origin: China
Brand Name: Chuangwei
Certification: CE
Model Number: CWV-1M700

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 5 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 1200 sets / year
Contact Now
Detailed Product Description
PCB Max Cutting Length: 460/700mm Material For The Blades: High Speed Steel
Type: Manual ,without Electronic Speed: Depends Of The Operator
Warranty: Free For One Year Name: Manual Pcb Depaneling Machine
Highlight:

pcb depaneling equipment

,

laser pcb depaneling machine

Manual PCB Depaneling Machine With 700mm Length Linear Blade

Manually Cutting PCB Separator (CWV-1M-700) Sepcification:

Size 1027x400x436mm
The separate size 700mm
Minimize Speed Manual
Minimize thickness 0.6-3.5mm
Machine Weight 45kg



Manually Cutting PCB Separator (CWV-1M-700) Features :

1, Round knife, manually cutting against lower linear knife,for reduced stress
2, Separate pre-scored PCB assembly without stress on either PCB or component
3, Separating speed is adjusted by handwheel
4, Handle Intermittent scoring or cut-outs
5, Board with projected component can be cut precisely
6, Large stainless steel platform on both side of cutting blade prevents board wobble and table height and angle are adjustable.
7, Clearance between circular and linear blades are adjustable to fit different groove depth and compensates for blade wear out .

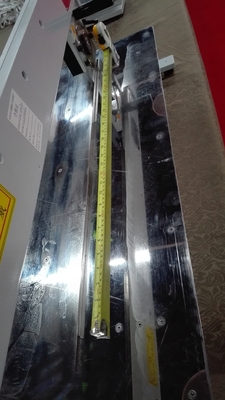

Manual PCB Depaneling Machine with 700mm/460mm Length Linear Blade 0
Manual PCB Depaneling Machine with 700mm/460mm Length Linear Blade 1

Manual PCB Depaneling Machine with 700mm/460mm Length Linear Blade 2
