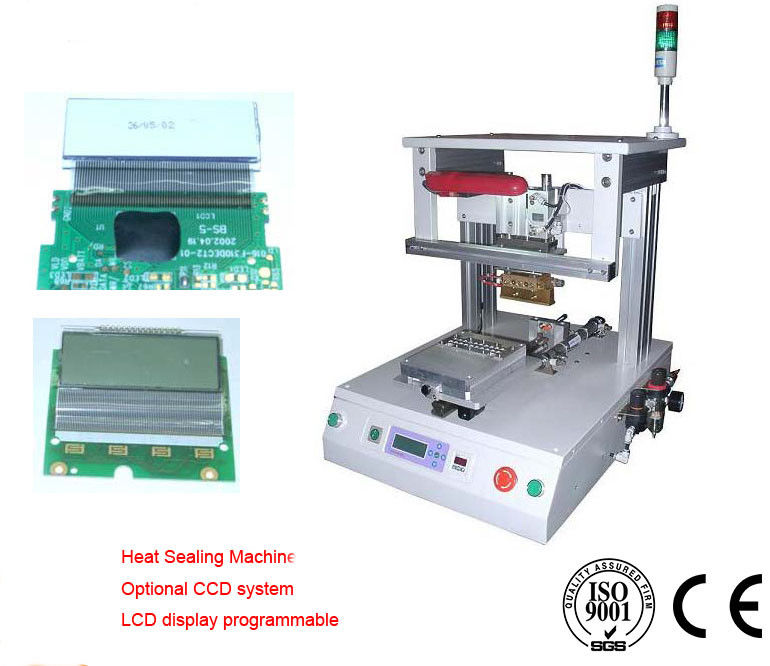

Pulse Heating Hot Bar Soldering Machine Thermode Soldering For PCB Assembly

Pulse Heating Hot Bar Soldering Machine Thermode Soldering For PCB Assembly
Pulse Heating Hot Bar Soldering Machine Thermode Soldering For PCB Assembly

Large Image :  Pulse Heating Hot Bar Soldering Machine Thermode Soldering For PCB Assembly

Product Details:

Place of Origin: Dongguang china
Brand Name: chuangwei
Certification: CE ISO9001
Model Number: CWPP-2

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: plywood case (fumigation can offer according to customer)
Delivery Time: 3-5 days after payment confirm
Payment Terms: L/C, T/T, Western Union,paypal
Supply Ability: 300 sets/month
Detailed Product Description
Work Table Type: Rotary Vaccum: 2 Set
Air Supply: 0.4 To 0.6 MPa Power Consumption: AC110V, 60Hz, 15 Amp Max.
Cooling Way: Air Cooling Warning Light: Ensure Operate Correctly
High Light:

pcb welding machine

,

pcb soldering machine



Pulse Heating Hot Bar Soldering Machine Thermode Soldering For PCB Assembly


Microprocessor-based controller provides precise and consistent temperature control.
Unique pulsed heat thermode offers uniform temperature distribution, fast heating and cool-down.
Flexible programmable profiles for targeted idle, preheat and reflow temperature.

Floating thermode and digital pressure control.
Manual shuttle of work; optional pneumatic shuttle.
NEW:  Bonder machine uses conductive adhesive film (ACF) for very fine pitch devices.
CW can supply fixtures and thermodes ,thermocouple
"Smarttherm" constant heat-type machine for heat seal applications
Optional CCD camera system and monitor




Features:

1. PLC control system, pulse heating, hot head with titanium to achieve rapid warming. Rapid cooling, temperature control and accurate.
2. Duplex rotation rotation feeding, enhance efficiency.
3. The on-bit dual camera system.
4. Optional touch screen control functions.



Technical parameters:

1 Power supply: AC220V ± 10%, 50Hz, 3500W
2 Work environment :10-60 ℃, 40% ~ 95%
3 Working pressure: 0.5 ~ 0.7Mpa
4 Welding pressure: 2.5 ~ 28Kgf
5 Temperature settings: three sections (including start / separation)
6 Temperature settings: RT ~ 450 ℃
7 Pressing time: 1 ~ 99 s
8 Hot Accuracy: pitch 0.14mm
9 Production capacity: 220pcs / h
10 Hot Head size: MAX 50 × 8mm
11 Dimensions: approx (L) 500mm × (W) 700mm × (H) 810mm
12 Weight: about 120KG


Thermode Specifications
Maximum Thermode Area    400 mm²
Maximum Thermode Length    100 mm (normal)
Force Range    30 N @ 0.09 MPa to 600 N @ 0.6 MPa
Thermode Stroke    50 mm
Force Accuracy    ±
Actuation Type    Pneumatic

Pulsed Heat Control Specifications

Temperature Range    1° C Interval
Idle    0 to 150° C
Preheat    0 to 500° C
Reflow    0 to 500° C
Time Periods    1 Second Interval
Preheat    0 to 200 Seconds
Reflow    0 to 200 Seconds
Heating Rate Control    Eight (8) Selections
Programmable Heat Profiles    Four (4) Internal Memory
Thermode Cooling    Air For Cooling Thermode

SmarTherm HSM
Compressed Air: 4 to 6 Bar
Vacuum Flow Rate: 24L/min Maximum
Electrical Power: 220 or 110 Vac (Factory Preset)
Weight: Net - 91Kg, Gross 159Kg




Uses: Suitable for all kinds of ordinary TAB, TCP crimping, and FPC, FFC and PCB solder crimp.
