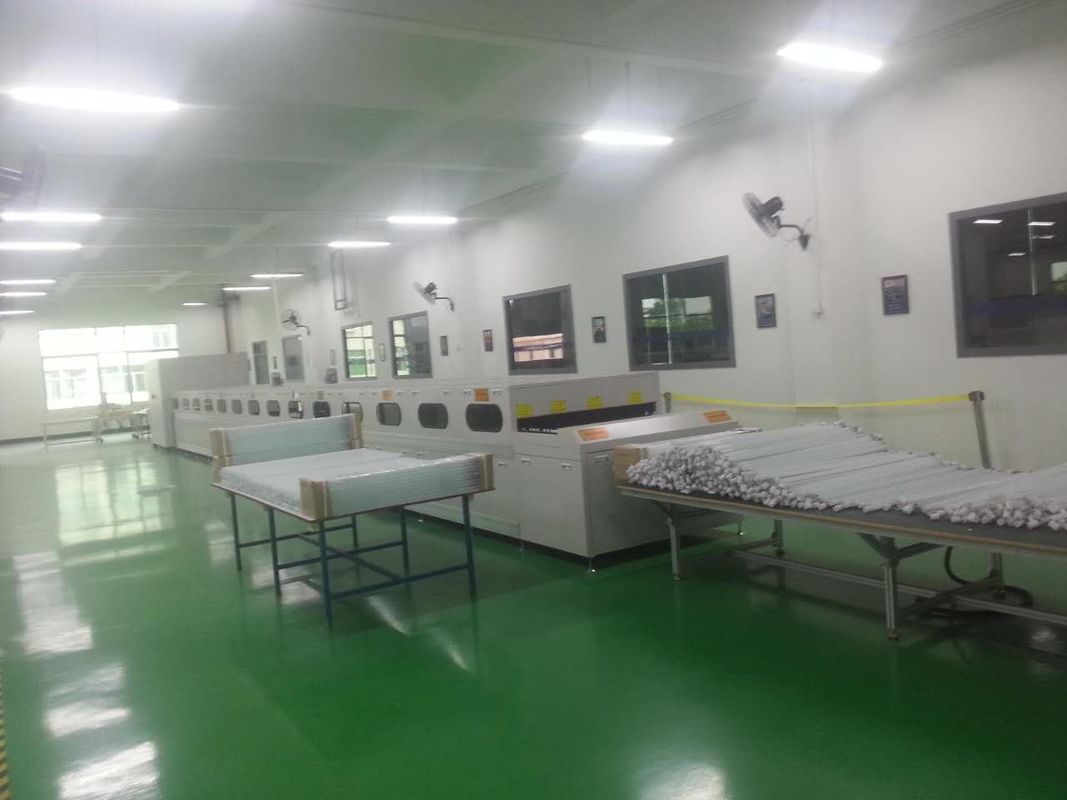

PCB Labeling Machine Customized LED Tube Bulb Assembly Packing Line

PCB Labeling Machine Customized LED Tube Bulb Assembly Packing Line
PCB Labeling Machine Customized LED Tube Bulb Assembly Packing Line PCB Labeling Machine Customized LED Tube Bulb Assembly Packing Line

Large Image :  PCB Labeling Machine Customized LED Tube Bulb Assembly Packing Line

Product Details:

Place of Origin: Dongguang china
Brand Name: Chuangwei
Certification: CE ISO9001
Model Number: CWLM

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: each set be packed in plywood case
Delivery Time: 1-3 days after payment confirm
Payment Terms: T/T, L/C,paypal
Supply Ability: 300 sets per month
Detailed Product Description
Warranty: Free One Year Controlling Axis: Three Axis(X,Y,Z,U)
Position Accuracy: ±0.05mm Stroke: Customized
Maximum Label: Can Be Customized Labelling Speed: <2second/PC(can Be Customized)
High Light:

automatic labeler machine

,

label maker machine

PCB Labeling Machine Customized LED Tube Bulb Assembly Packing Line

Specifications

1. full and semi automatic led light assembly line
2. belt conveyor line
3. used for led lamps assembly
4. automatic assembly



Full and semi automatic led light assembly line equipment



1. stand is made of 40*40*1.5mm painted Iron square tube
2. whole line's chain and conveying plated

3. automatic conveying system, the speed can be setted and adjustable

4. there's aluminum clasps for SOP papers, it is easy to see for the workers

5. ESD equipped for the assembly line

6. each worker's working station with a individual light and switch



other application can be custom designed by the coustomer



No

Name

Specifications

Quantity

1

Drive system

1.1HP Motor,reducer casing:70 tooth box;The nose and tail

made of steel,stabilize,the motor and is difficult loose;



2.Speed:0-0.6m/min,2HP inventer control the speed,frequency control.safe and low noise;



3.  Active roller 6 inch *350mm, Driven roller 3 inch*350mm;

1Set

2

The line body structure

1. stand is made of40*40 Iron FangTong, working face height :720+/-20mm;



2. Normal screwed connection,remove many move no damage.dismounting convenient,stable and no transformation;



3. both sides of the line is made of 0*60 aluminum,no pollution the product;



4. Greenδ2*400PVC convey belt is produced in Netherlands,seamless connection,the workbench adopt anti-static rubber,Grandseed brand can test in 2 years; design Static wire down of the workbench



5. Feed belt adopt galvanized plate support,φ25*400 galvanized support roller transportation belt every meter,no deformation,be sure the transport stable;



6. The power is adopt galvanized trunking the line is 2.5mm² ;every station fix 220V three holes a bar socket;



7.The standalone workbench normal:Total 12 Tables.platen 1200mm*600mm,the table adopt δ16mm board,green Anti-static rubber stuck in table-board, Half a log overlock ;stand is made of 30*30* Iron FangTong, working face   height :720+/-20mm;



8. The SOP holder standard:300/220mm,each station have a A4 process card;



9. The lamp holder fix 30*28 the wind group of aluminum



10. Instrument desk: wide 350mm,table-board is adopted

δ16mm board,the surface stick White fire prevention board,Half logs overlock.,the stand adopt 40*40 Iron FangTong

10m

3

Lighting design



1.28W/T5 energy saving lamp with cover,each lamp have a control switch.the testing luminance 368Lux.lined with each two sides  the lamp adopted 25*50mm Iron flat



PCB Labeling Machine Customized LED Tube Bulb Assembly Packing Line 0



LED semi-auto solder stencil printer-SMT conveyor-LED pick and place machine-LED conveyor-ETA LED reflow oven-PCB Separator-LED Assembly line



As management incompetence, One Company for  LED Lamp production face collapse ,They wanna to sold the machines .  All machines are nine into new , IF your are interested in it ,we can supply you video and pictures for the machine .


Welcome your contact for details.



1. Customer's requirements


We received customer’s RFQ on Alibaba.com as follow: Dear Sir, We are planning to send up one LED assmbling unit in India. We require all kinds of testing and printing machines for the same. If you have the same please send me all the details with pictures and price list at the earliest to Thanks and regards. Mak


2. We propose


Regular LED lamps assembling line are already exist in China, and they are variant as per different products, there is no one single line which can produce all LED lamps. We propose customer copy the line already exist, it is cost and time saving.



 3. Customer need supply:


Samples or pictures of the items the customer want to produce
 The output: pieces/year
The factory working area layout


4. Seller can supply:


Production line that already exist
 Customized service to solve the customer’s problem



5. Specification:


The specification is available.





6. Spare parts:

Vulnerable parts are provided as spare part. We can provide spare parts list.



7. Guarantee:
Guarantee will be 12 months after delivery.



8. Packing and transportation:
Standard packaging, express or shipping to the end customer.



9. Technical Document:
Users’ manual available, we use International System of Units (SI), English .PDF format available.



10. Service:
Overseas service available; Any problem, contact us, we will response within 24 hours.
