Name: | 0.05mm Online Visual And Intelligent SMT/FPC Automatic Label | Color: | White |
---|---|---|---|
Working Area: | 320*280mm | Precision: | 0.05mm |
Counting Spe: | 1.5-2.5sec/pcs | Max PCB Height: | Up 90 Down 90mm |
PCB Thickness: | 0.5-3.5mm | Repeat Accuracy: | 0.05mm |
Dimension: | L1130*W1096*H1426mm | Weight: | 800kgs |
Highlight: | label maker machine,automatic labeler machine |

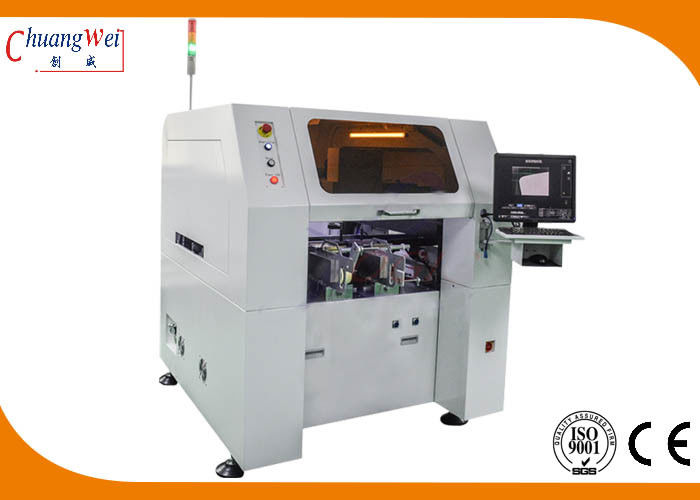

SMT / FPC Automatic Labeler Machine with Compact Struction Specifications:
Mount accuracy | ±0.05mm |
Positioning accuracy | ±0.025mm |
Repeat positioning accuracy | ±0.05mm |
Mounting Speed | 1.5-2.5sec/pcs |
Component Range | Min:L5*W5mm,Max:L80*W40mm |
PCB size | Max:L340*W280mm |
PCB Thickness | 0.5-6.5mm |
Feeder capacity | Standard: 2 feeders(80mm) |
Positioning method | MARK point & screen frame for visual positioning+parts visual compensation |
Mount head number | 2PCS |
Entry way | L-R R-L L-L R-R |
Machine Dimension | L1130*W1096*H1426mm |
Power Supply | 200-240V 50/60Hz single phase AC 200-240V 50/60Hz |
Power | 1.0KW |
Pressure | 0.4-0.6Mpa Dry air 0.4-0.6 bar |
Machine Weight | About 800KG |
Standard platform,Smart Accommodation:
Accommodates for electronic products like mobile,various PCB,SMT produce line and FPC,camera ,LED chip etc,which will replace labour for place pressure sensitive adhesive,conductive adhesive,double-face sticker , Thermal conductive silicone foam ,shield laminating ,label,protecting film and bar code ,QR code etc.
Configuration:
High precision vision system hardware is composed of two high resolution cameras, according to a specific stable and efficient positioning algorithm,with multi axis mount head to improve efficiency greatly.
5.
Machine Features:
