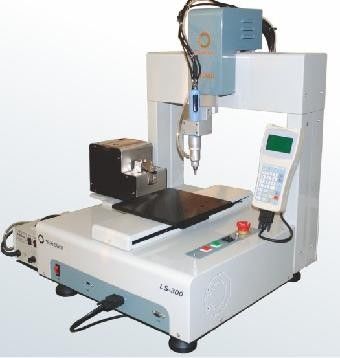

Single Station Desktop Screw Tightening Machine Adsorption DSP Ccontrol

Single Station Desktop Screw Tightening Machine Adsorption DSP Ccontrol
Single Station Desktop Screw Tightening Machine Adsorption DSP Ccontrol Single Station Desktop Screw Tightening Machine Adsorption DSP Ccontrol Single Station Desktop Screw Tightening Machine Adsorption DSP Ccontrol

Large Image :  Single Station Desktop Screw Tightening Machine Adsorption DSP Ccontrol

Product Details:

Place of Origin: Dongguang China
Brand Name: Chuangwei
Certification: CE ISO
Model Number: CWSM-6

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: each set be packed in plywood case
Delivery Time: 1-3 days after payment confirm
Payment Terms: T/T, L/C
Supply Ability: 300 sets per month
Detailed Product Description
Control Mode:: DSP Control Application Screw Hear: All Type
Speed:: 0.1~800/400(mm/sec) Screw Into The Way:: Adsorption Type
Air Pressure: 0.4Mpa Analytical Ability:: 0.001mm
High Light:

scrw driver machine

,

auto dispensing machine





Single Station Screw Fasten Desktop Automatic Screw Tightening Machine



Specifications

Automatic Screw Tightening Machine


1. DSP control
2. High precision
3. Convenient installation
4. Simple operation



Description:



Product name

Professional Desktop Automatic Screw Tightening Machine

Model

CWSM-6

Voltage

220v

Power

150w

Weight

50kg

Dimension

620*660*770mm

Machine travel X/Y/Z/R

500*500*80mm

Repeat accuracy

0.002mm

Analytical ability

0.001mm

Max torque

500

File storage capacity

At least 1000 groups, each of 9999 bytes

File storage

Memory store

Control mode

DSP control

Programming

Handheld teaching programmer

Working environment temperature

10-50℃

Screw bag volume

10000 PCS

Screw into way

Adsorption type

Custom processing

Yes



Features:



*Strong suction mouth, to ensure that suck up the screw;

*Operate dependently, convenient installation, simple operation;

*Quickly rule out the screw failure, continue to work directly in the original error point;

*High precision of electric screwdriver, can control the torque, stable and reliable;

*Replace the manual for specific operation, reduce labor intensity, improve production

efficiency;

*Screw lock manager with the display alarm function of screw unlock, machine idling

and torque error;



Application:



*Applied to mobile phone, digital products, small electronic equipment, small house

hold electrical appliances;

*Applicable to the vast majority of screw, especially stainless steel screws, strong

versatility, has no requirement on the screw length diameter ratio;




 Advantages:





1. High efficiency: multiple axis lock at the same time, 10 screws can be locked in one screw’s period, saving lots of artificial, suitable for mass production.



2. High fastening standard: all screws are locked in one torque at the same time, making sure of the sealing and balance of the product, greatly increase the qualified rate of products.



3. Deep hole locking: the fastening of deep hole screw has inconvenience in observing the hole site, so artificial locking has low efficiency, while multi-axis screw locking machine locates and fastens screws accurately.



Single Station Desktop Screw Tightening Machine Adsorption DSP Ccontrol 0



characteristic





1, Reduce cost:Locking two kinds of screws at the same time ,the staff can operate quickly ,improve the efficiency



2, efficiency: Fastening two kinds of screws at the same time,higher efficiency ,3600-4000pcs screw per hour. no waiting



3, More relax: single equipment for single worker, Just finished loading



4, Reliability:,Automatic alarm system, work 20 hours more



5, Generality: Touch screen display programmable achieve more operations,Through a simple programming, can be put into production, convenient for production and management





Applicable subject:



Mobile phones, car electronic products, household appliances, power supply, instrument equipment, LED, computer keyboards, PAD, toys and so on.



Why us



1. Engineers available to service machinery oversea.

Engineers are available to be sent to freign countries to do machinery training and offer technical support



2. Mature technique & forerunner to process makes high quality machinery.

As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb router

Our R&D team continuously upgrade the existing machines to meet the market development trend.



3. One year warranty for the machines except accessories.

Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge



4. Effective customer service.

All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers



Our mission

Ongoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success



Our Vision:

Ongoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success







Production flow



Single Station Desktop Screw Tightening Machine Adsorption DSP Ccontrol 1





CE approval



Single Station Desktop Screw Tightening Machine Adsorption DSP Ccontrol 2
