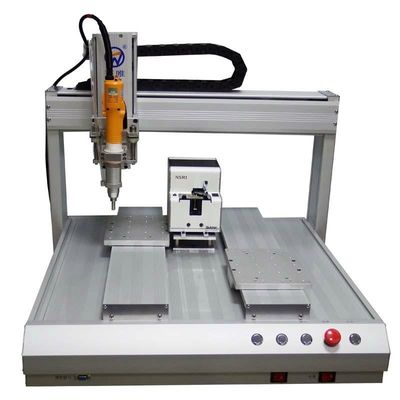

PCBA Screw Tightening Machine For Electronic Products Tow Work Tables

PCBA Screw Tightening Machine For Electronic Products Tow Work Tables
PCBA Screw Tightening Machine For Electronic Products Tow Work Tables PCBA Screw Tightening Machine For Electronic Products Tow Work Tables PCBA Screw Tightening Machine For Electronic Products Tow Work Tables

Large Image :  PCBA Screw Tightening Machine For Electronic Products Tow Work Tables

Product Details:

Place of Origin: Dongguang China
Brand Name: Chuangwei
Certification: CE ISO
Model Number: CWAS

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: each set be packed in plywood case
Delivery Time: 1-3 days after payment confirm
Payment Terms: T/T, L/C
Supply Ability: 300 sets per month
Detailed Product Description
Type: Precision Screwdriver Application Screw Hear: All Type
No-Load Speed: 500mm/sec Usage: Lock Screw ,Automatic Screw Feeding
Air Pressure: 0.4Mpa Power: 220V, 50HZ
High Light:

screw tightener machine

,

auto dispensing machine

,

PCBA Screw Tightening Machine



Electric Screw Tightening Machine For Iphone 6 Electronic ProductsTechnology Data:


Outline size:600*840*640mm  (L*W*H)                     170*255*70mm(X*Y*Z)
Driver:six axis step motor                                          Precision :±0.02mm
Slider:HIWIN                                                              Control sys:PLC + TP
 Feeding :Absorption type                                         Program  :Teaching Type
 Speed:Min<1.2S                                                       Program Value:14groups, 40steps/group
COM: USB                                                                 Voltage:220VAC,50HZ
Air pressure:0.4Mpa                                                 Weight:80kg



Technical parameters



Program recording mode 100 set,4000 points(USB support copy)
Display model Teaching pendant LCD(320*240) or touch screen
Motor system Japan precision micro-stepper motor
Drive mode timing belt + screw rod +guide rail
power AC110V/220V 300W(internal switch)
I/O signal 12 Inputs/12 Outputs
Control  RS232
Edit model Teach pendant
Working  environment Temperature 5-40℃
Working  environment Humidity: 20-90%
Suite model   M1.2-M3.0



PCBA Screw Tightening Machine For Electronic Products Tow Work Tables 0



Scope:


Used for all kinds of consumption electron products’ screwing in assembly, such as mobile phone /cordless telephone /calculator/navigator/ audio/camera/note book/ pad/teaching machine /small household appliances…etc.

Function:

- Have smart detection function, like missing screwing/screw stand out /screw loose…etc;
- Good flexibility, like universal fixture for different size mobile phone;
- Good generality: adapt for M1.0-M4 by change in the screw guider
- Perfect machine outline: small out line size is suit for different cell line configuration,
- Auto mode don’t need operator and no waiting time.



characteristic



1. Reduce cost:Locking two kinds of screws at the same time ,the staff can operate quickly ,improve the efficiency;

2. efficiency: Fastening two kinds of screws at the same time,higher efficiency ,3600-4000pcs screw per hour. no waiting;



3. More relax: single equipment for single worker, Just finished loading;

4. Reliability:,Automatic alarm system, work 20 hours more;

5. Generality: Touch screen display programmable achieve more operations,Through a simple programming, can be put into production, convenient for production and management.



Applicable subject:



Mobile phones, car electronic products, household appliances, power supply, instrument equipment, LED, computer keyboards, PAD, toys and so on.



Why us



1. Engineers available to service machinery oversea.

Engineers are available to be sent to freign countries to do machinery training and offer technical support



2. Mature technique & forerunner to process makes high quality machinery.

As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb router

Our R&D team continuously upgrade the existing machines to meet the market development trend.



3. One year warranty for the machines except accessories.

Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge



4. Effective customer service.

All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers



Our mission

Ongoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success



Our Vision:

Ongoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success





Production flow



PCBA Screw Tightening Machine For Electronic Products Tow Work Tables 1
