|Boding Head:||Customize According To Your Product||Working Air Pressure:||0.45~0.70Mpa|
|Fixture:||Sliding Fixture||Warranty:||1 Year|
pcb welding machine,

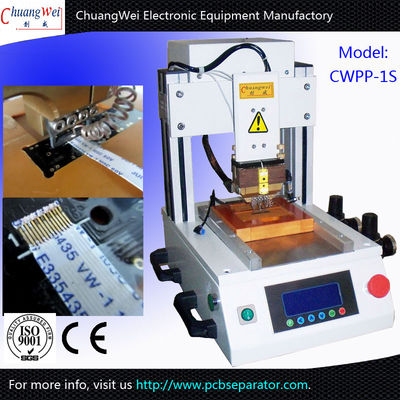

Advanced Tech Pulse Heat Hot Bar Soldering Machine With Flexible Fixture CWPP-1S
Data lines Link welding machine
1. Accurate Tin press,not drag
2. Accurate heat
3. Fine-pitch positioning
|Max. Working Area||200mm X 260mm|
|working air pressure||0.45-0.7Mpa|
|hot-pressing time||1-99 s|
|force head pressure||0.1-0.6 MPa|
|Size||620mm X 690mm X 570mm|
|momentary welding Power||2000W|
Detailed Product Description:
1. For electronics, cell phones, computers, PCB, FPC (flexible printed circuit board)
2. Mold make of SKD-11 Steel,Blade is SKD-9(From Japan),Rigorous Job!!!!
1. Structural precision, the load evenly, to eliminate internal stress
2. Safe, easy to operate
3. Electronic component won't short circuit
1. Closed Loop PID temperature control with visible LED display
2. LCD display programmable pressure switch for precise force control
3. Each heating cycle is triggered by a real time pressure sensor
4. Floating thermode ensures consistent pressure and heat transfer
between the thermode head and the parts to be joined
5. Silicon rubber can be fitted in bonding Heat Seal Connectors
between LCD and PCB
6. Standard workpiece holder is mounted on a linear guideway and
designed to allow for easy changeover and repeatable operation
7. Parts registration is adjusted by micrometer and secured by vacuum
8. Optional CCD system for fine pitch component
Our Advantage :
1. Engineer overseas tranning for customers
2. Promise day technical support services
3. Limit the handling of complaints, half an hour back to customers
4. Reliable machine maker,we get Experts--15,each one got over six years experience,equipment quality will be satisfying.
Why choose us:
1.Engineers available to service machinery oversea.
Engineers are available to be sent to freign countries to do machinery training and offer technical support.
2.Mature technique & forerunner to process makes high quality machinery.
As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb router machine
Our R&D team continuously upgrade the existing machines to meet the market development trend.
3.Effective customer service. pcb router machine
All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers.
4.One year warranty for the machines except accessories. b router machine
Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge.
Ongoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success
PCB industry to become the world's leading solution providers PCB separator. pcb router machine
