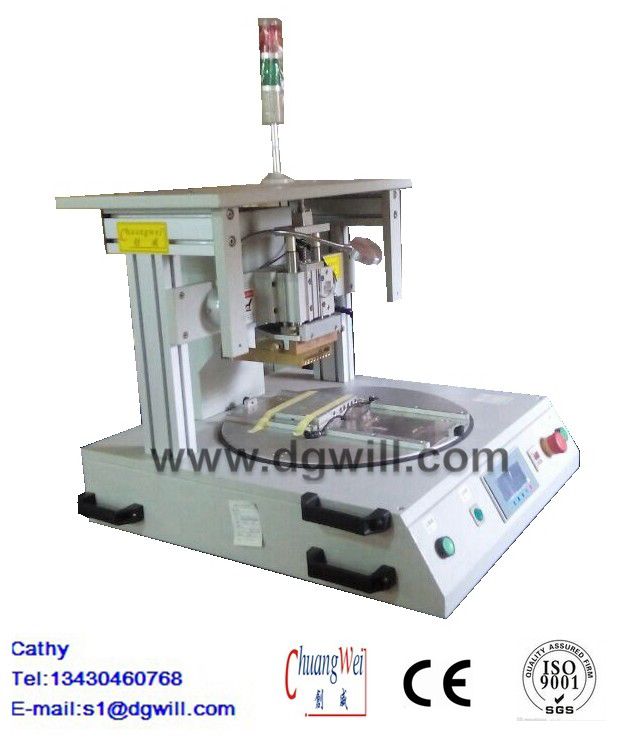

PCB Hot Bar Soldering Machine FPC to PCB Fast Speed Safety
Detailed Product Description :
1 . For electronics, cell phones , computers , PCB , FPC ( flexible printed circuit board )
2 . Mold make of SKD-11 Steel , Blade is SKD-9 ( From Japan ) , Rigorous Job!!!!
3 . Structural precision, the load evenly, to eliminate internal stress
4 . Safe, easy to operate
5 . Electronic component won't short circuit
Features for soldering machine :
1 . Extremely short cycle time with rotary table design . Product loading and unloading can be done during the heat sealing process
2 . High quality heat seal application up to 0.25mm pitch
3 . Pneumatic bonding head provide up to 3 , 900N force
4 . Digital programmable pressure control with LCD display
5 . Closed loop PID temperature control with visible LED display
6 . Bonding cycle is triggered by a real time pressure sensor
7 . Floating Thermode ensure consistent pressure and heat transfer along the flexfoil to LCD and/or PCB
8 . Precision product fixtures ( 2X ) , easy exchange , provided with micrometer alignment and vacuum to fix components
9 . Optional CCD alignment module with frame , camera , lens , monitor and illumination for fine pitch application
10 . Full microprocessor logic control
Specifications :
| Model |
CWPC-1A |
| Welding Machine SIze |
620mm X 690mm X 570mm |
| Max. Working Area |
200mm X 260mm |
| Air Pressing |
0.45-0.7Mpa |
| Welding Machine Weight |
95kg |
Our Advantage :
1 . CWPC-1A Pcb welding Machine original manufacturers, price concessions
2 . Promise day technical support services
3 . Limit the handling of complaints, half an hour back to customers
4 . Reliable machine maker , we get Experts--15 , each one got over six years experience,equipment quality will be satisfying .
