| Fixtures: | Two Rotary Table | Air Pressing (MPa): | 0.45~0.7 |
|---|---|---|---|
| Operation Butom: | Press Two Butoms At The Same Time | Warranty: | One Year |
| Cooling: | Air | Warning Light: | Ensure Operate Correctly |
| Highlight: | pcb welding machine,pcb soldering machine |
||

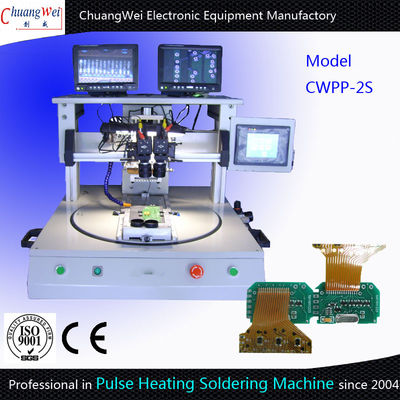

High Technical Rotary Table Type Pulse Heating Hot Bar Soldering Machine
Specifications
Microprocessor based controller provides precise and consistent temperature control.
Details:
Microprocessor based controller provides precise and consistent temperature control.
Unique pulsed heat thermos offers uniform temperature distribution, fast heating and cool-down.
Flexible programmable profiles for targeted idle, preheat and reflow heating.
Floating thermos and digital pressure switch ensure optimal pressure distribution across the joint
CCD camera system with magnification lens can be retrofitted for fine-pitch positing
Feature:
1. Extremely short cycle time with rotary table design
2. Product loading and unloading can be done during the heat sealing process
3. High quality heat seal application up to 0.25mm pitch
4. Pneumatic bonding head provide up to 3,900N force
5. Digital programmable pressure control with LCD display
6. Closed loop PID temperature control with visible LED display
7. Bonding cycle is triggered by a real time pressure sensor
8. Floating Thermode ensure consistent pressure and heat transfer along the flexfoil to LCD and/or PCB
9. Precision product fixtures (2X), easy exchange, provided with micrometer alignment and vacuum to fix components
10. Optional CCD alignment module with frame, camera, lens, monitor and illumination for fine pitch application
11. Full microprocessor logic control
Our Advantage :
1. Promise day technical support services
2. Limit the handling of complaints, half an hour back to customers
3. Reliable machine maker,we get Experts--15,each one got over six years experience,equipment quality will be satisfying
Our production
Why us
|
1.Engineers available to service machinery oversea. |
Engineers are available to be sent to freign countries to do machinery training and offer technical support. |
|
2.Mature technique & forerunner to process makes high quality machinery. |
As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb router machine Our R&D team continuously upgrade the existing machines to meet the market development trend. |
|
3.Effective customer service. pcb router machine |
All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers. |
|
4.One year warranty for the machines except accessories. b router machine |
Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge. |
|
Our mission: |
Ongoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success |
|
Our Vision: |
PCB industry to become the world's leading solution providers PCB separator. pcb router machine |
CE Approval
