Product Details:
Payment & Shipping Terms:
|
| Max.working Area: | 200×260mm | Working Air Pressure: | 0.45~0.70Mpa |
|---|---|---|---|
| Fixture: | 1 Set | Warranty: | 1 Year |
| Size: | 590×640×620mm | Weight: | 62 Kg |
| Name: | Hot Bar Soldering Equipment | Color: | White |
| High Light: | pcb welding machine,pcb soldering machine |
||

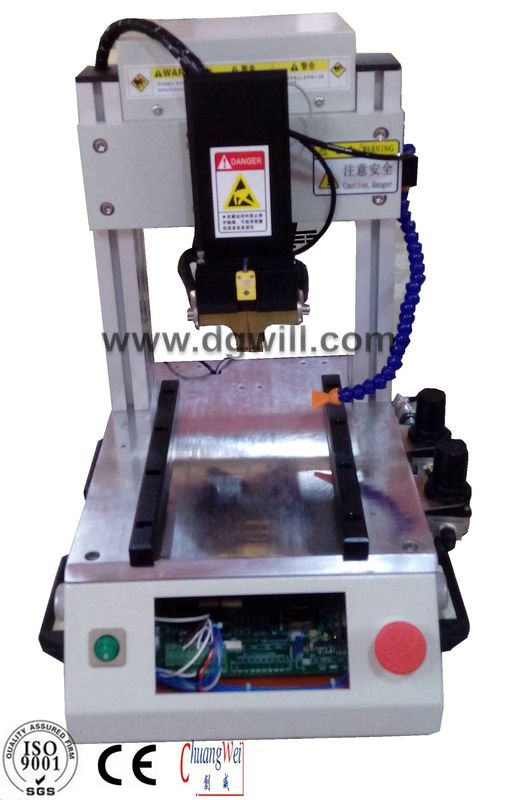

Hot Bar Soldering Equipment Pulse Heat Bonding Machine FFC to PCB Features:
1. Unique pulse heat technology provides fastest soldering head heating.
2. Programmable soldering temperature, heat-up rate and time duration for a wide range of products.
3. Thermocouple is fixed in close proximity to the working surface & the thermode, thus providing accurate temperature feedback control.
4. Closed Loop PID temperature control with clearly visible LED display.
5. Soldering time can be programmable and is triggered by temperature.
6. Floating thermode ensures consistent pressure and heat transfer between the thermode head and the parts to be joined.
7. Programmable pressure switch with LCD display for precise force control.
8. CCD camera system with magnification lens can be retrofitted for finepitch positioning.
Hot Bar Soldering Equipment Technical parameters :
| Size | 590×640×620mm |
| Max.working area | 200×260mm |
| Working air pressure | 0.45~0.70Mpa |
| Fixture | 1 set |
| Weight | 62 kg |

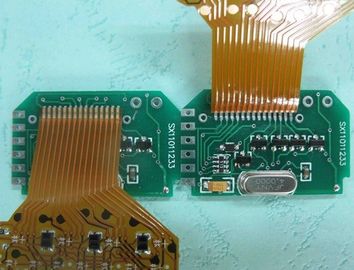

Hot Bar Soldering Equipment Application & Hot Bar Soldering Equipment Thermode Head
Why choose us:
|
1.Engineers available to service machinery oversea. |
Engineers are available to be sent to freign countries to do machinery training and offer technical support. |
|
2.Mature technique & forerunner to process makes high quality machinery. |
As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb router machine Our R&D team continuously upgrade the existing machines to meet the market development trend. |
|
3.Effective customer service. pcb router machine |
All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers. |
|
4.One year warranty for the machines except accessories. b router machine |
Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge. |
|
Our mission: |
Ongoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success |
|
Our Vision: |
PCB industry to become the world's leading solution providers PCB separator. pcb router machine |
CE CERTIFICATION
