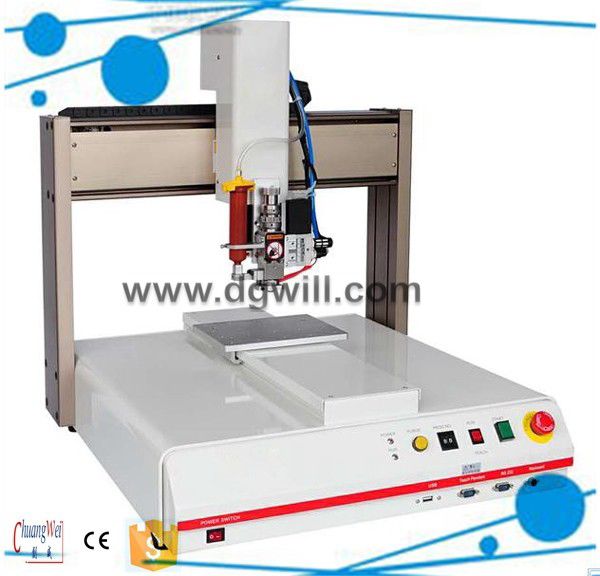

Desktop Automated Dispensing Machines Used PCB / FPC Soldering

Desktop Automated Dispensing Machines Used PCB / FPC Soldering
Desktop Automated Dispensing Machines Used PCB / FPC Soldering

Large Image :  Desktop Automated Dispensing Machines Used PCB / FPC Soldering

Product Details:

Place of Origin: China
Brand Name: Chuangwei Dispenser Machine
Certification: CE certificate
Model Number: CWDJ

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 5 work days
Supply Ability: 1000 set / year
Detailed Product Description
Warranty: Free For One Year MOQ: 1 Set
Moving SpeedXY/Z: 0.1-800/400(mm/sec) Repeatability: ±0.01mm/200mm
Power: AC 220V/350W Weight: 62.5kg
High Light:

Auto Dispensing Machine

,

pcb dispenser



Desktop Automated Dispensing Machines Used PCB / FPC Soldering





Features:  glue dispensing machine



1 , Could be a particular dispensing operations, mechanized production

2 . Simple and convenient to operate, high-speed precision   glue dispensing machine
3 . Program files can be uploaded/downloaded through U disk,easy to manage
4 . Has control buttons on the needle, no external teaching is more convenient than similar products debugging
5 , Used LCD 5-inch color screen display   glue dispensing machine
6 , Does not cause noise pollution to production sites
7 , Enabling 3D dispensing systems, regardless of any comple shape and dispensing path can be accurately completed
8 , Can be equipped with single-tube or pipe dispensing, improve efficiency in the realization of different glue or dispensing path
9 , Used for in all kinds of demand dispensing industry , such as:general common UV plastic , silicon , EPOXY, red gum , paste , AB glue ,
COB vinyl , conductive plastic , aluminum heat glue , instant glue , paste and other points glue , can be used on the D-series devices .





Applications :   glue dispensing machine



1 , LED package  glue dispensing machine
2 , Mobile phone plate coating or dispensing button   glue dispensing machine
3 , Speaker Dispensing
4 , Dispensing sealing the battery case
5 , The semiconductor package   glue dispensing machine
6 , Power component package
7 , chip binding
8 , Fixed and protected PCB electronic components
9 , LCD glass board package   glue dispensing machine





Sepcification :   glue dispensing machine



Travel RangeX/Y/Z 300/300/100(mm)
Table Max Load 10KG
Z Axis 4.5KG
Moving SpeedXY/Z 0.1-800/400(mm/sec)
Analytical Ability 0.01mm/Axis
Repeatability ±0.01mm/200mm
Program Recording Capacity 1000
Display 5 Inch LCD
Motor Japan micro-level precision stepper motor
Moving Mode Point to point, Continuous line
Transmission Japanese belt,Precision linear guide
Motion Makeup Function 3 Axis
Edit Mode Teach box or computer file input
I/O Signal 6In puts 6 Out puts
Power AC 220V/350W
Operating Temperature 5-40℃
Operating Humidity 20-90%(no condensation)
Size(mm) 522 x 560 x 565
Weight(kg) 62.5





Service processing :



Desktop Automated Dispensing Machines Used PCB / FPC Soldering 0





Working :



Desktop Automated Dispensing Machines Used PCB / FPC Soldering 1



Desktop Automated Dispensing Machines Used PCB / FPC Soldering 2





 Glue dispensing machine customer evaluation :



Desktop Automated Dispensing Machines Used PCB / FPC Soldering 3



Our business partners :



Desktop Automated Dispensing Machines Used PCB / FPC Soldering 4



The reason for choose us :





Desktop Automated Dispensing Machines Used PCB / FPC Soldering 5
