Feeder Label Printing Machines On PCB with Three Axis Workbench Automatic

Feeder Label Printing Machines On PCB with Three Axis Workbench Automatic
Feeder Label Printing Machines On PCB with Three Axis Workbench Automatic Feeder Label Printing Machines On PCB with Three Axis Workbench Automatic

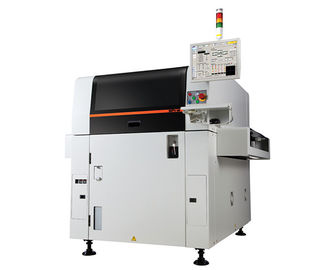

Large Image :  Feeder Label Printing Machines On PCB with Three Axis Workbench Automatic

Product Details:

Place of Origin: Dongguang china
Brand Name: Chuangwei
Certification: CE ISO9001

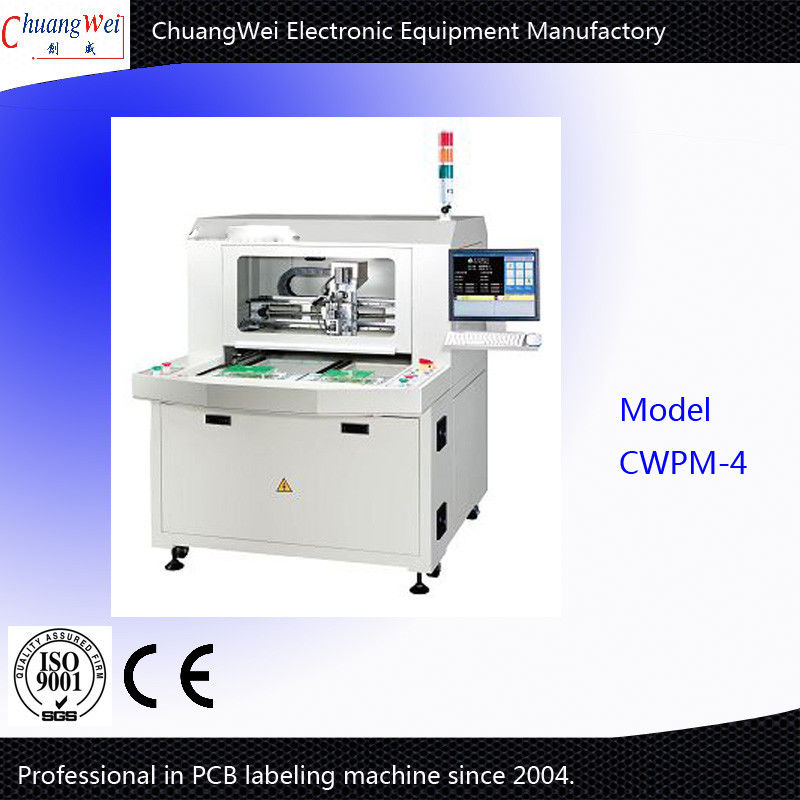

Model Number: CWPM-4

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: each set be packed in plywood case
Delivery Time: 1-3 days after payment confirm
Payment Terms: T/T, L/C,paypal
Supply Ability: 300 sets per month
Detailed Product Description
Warranty: Free One Year Controlling Axis: Three Axis(X,Y,Z,U)
Position Accuracy: ±0.05mm Stroke: Customized
Maximum Label: Can Be Customized Labelling Speed: <2second/PC(can Be Customized)
High Light:

label maker machine

,

automatic labeler machine



Feeder Label Printing Machines On PCB with Three Axis Workbench Automatic



Composition and parameters



CCD

F‐130F series industrial camera

lens

Computar EX2C

laser head

import from japan

guide rail

TBI import grinding leadscrew X,Y two each,X450mm,Y520mm

servo motor

A5 motor series

I/O control card

ADLINK PCI‐9074

motion control card

ADLINK PCI‐9074

adapter card

BOXIN‐BO1

Static Eliminator

STATIC‐ST401A series

Industrial control host

Industrial control host(RMC‐8404/6113LP4/300ATX/8651VNA/P4
2.8G 2CPU(S)/1G DDR/80G/CD‐ROM)

Display

DEL liquid crystal LCD17" displayer and Logitech mouse/Duble Swallow mouse

2.software



control system

WINdowsxp

operation interface

GUI

program

online

visual system

Pixel computational precision CCD visual orientation correction system(
Independent R&D)

control software

F1.0.2 official

Dimension

600mm*600mm*1180mm

weight

100kg

Foot adjustable height

60~110mm

Manipulator



motor type

Panasonic A5 motor series

control motor repeat accuracy

0.01mm

The axis maximum working range

400mm*400mm

Work station



transmitt

Workbench automatic feeder,leadscrew transmission

max size

400mm*400mm

edit mode

online programming

Program storage

select the storage location According to the need

collocate program CCD

computar Series high pixel color CCD

Operation Monitors



tri‐color light

High brightness trichromatic lamp monitoring machine of all kinds of
working condition

The motor overheat detection

Overheating, overload, low voltage protection function

Servo overload detection

With overload, circuit is normal and low voltage protection function



print counter

pcb type, print numbers,diverse counting way.

Machine error record

software automatic memory machine all alarm record

.Accuracy



Laser head position accuracy

0.01mm

print precision

0.01mm

.Safety



scope of work protector

Use all‐direction seal protection way

door interlock protection sensors

Before and after the safety door safety switch induction(optional)



Features:


1. Configuring high‐pixel CCD zoom lens, an auxiliary program Teach‐camera editing function, higher precision and more accurate,
clearer images. Easy to edit & modify block programs and single‐step program.
2. Intelligent control, automatic correction MARK point positioning systems, mobile real‐time display and analog path trace route,
display a glance, automatic alignment correction, higher labeling accuracy.
3. Simple adjustment, adjust label position freely for 10 setting positions. It is simple to change different PCBs to save time.
4. Flexible application can pick off the production or assembly line production, production site layout is simple.
5. Powerful, has fault alarm function, production counting function, parameter setting protection function, convenient production
and management.
6. Transparent cover design, emergency button could avoid accident to ensure safe operating.


operating principle:


Core principle: sensors detect the product after, back to the signal to the labeling control system, the signal after the PLC processing, at the appropriate time to send out the tag attached to the product set position, product flows through the device,
tags coating is firm, a label attached


operating process:
Operation: put a PCB (could connect production line) ‐‐> PCB feeding(automatically) ‐‐> product correction (automatically) ‐‐>
product testing (automatically) ‐ >Labeling (automatically) ‐‐> finish PCBs collection



Our prodution flow
