Cutter Adjust Range: | 0.01-3.5mm | ACF Attachment Length: | 3-100mm |
---|---|---|---|
ACF Style: | 2 Or 3 Layers | Time Settings: | 1-99sec |
Pressure Range: | 2-40kg F | Head Flatness: | 0.005mm |
Highlight: | pcb welding machine,bonding machine |

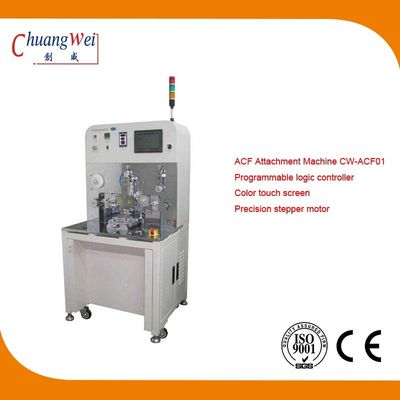

Automatic 2 Sets Waste Receipt Acf Attachment Machine Hot Bar Soldering Machine CW-ACF01
Technical parameters:
Project Components |
Constituent units |
Specifications / parameter |
Explanation |
Remark |
Structure Part |
Frame |
Square steel through welding, sheet metal |
|
|
Upload feeding platform |
Feed and out of style |
1 set |
|
|
Heating |
Thermostatic heating |
1 set |
|
|
Fixture |
No backup, X,Y is adjustable |
1 set(Choose one option) |
|
|
Has backup, X,Y is not adjustable |
||||
Cutting device |
Half-cut |
1 set |
|
|
ACF Strip |
Cylinder drive |
1 set |
|
|
Waste Receipt |
Automatic |
2 sets |
|
|
Silicone sheet reeling |
Width:10mm |
1 set |
|
|
Electric Part |
Control Systems |
PLC |
Siemens |
|
HMI |
7” color LCD |
Weinview |
|
|
Thermostatic temperature control |
Thermostat |
Omron |
|
|
ACF feeding control |
Stepper motor |
|
|
|
Tension Control |
Torque motor |
|
|
|
Thermode driving |
Cylinder |
SMC |
|
|
Platform out driving |
Cylinder |
SMC |
|
|
Pressure display |
Digital barometer |
Panasonic |
|
|
Pressure regulator |
Precision control valve |
SMC |
|
|
Alarm lights |
Tri-color LEDs |
Red, yellow, green |
|
Software Part |
Parameter Setting |
Time, attachment length |
Touch screen operation |
|
Parameter storage capacity |
20 groups |
|
|
|
Operation Security |
Dual Start button |
|
|
|
Operation Mode |
Manual/Auto |
Manual mode: individually controlled Action element Auto Mode: Auto Run |
|
|
Password protection |
Two password protection |
Parameters Password / System Password |
|
|
Alarm |
The current alarm information and reason tips |
|
|
|
Production count |
Number of Production Planning |
Message after reaching plan |
|
|
Working platform |
Feeding mode |
Out of style |
|
|
Size |
Max:12”(16:9) |
|
|
|
Material |
Aluminum alloy |
|
|
|
ACF System |
ACF width |
1.5-6mm |
|
|
ACF Style |
2 or 3 layers |
|
|
|
ACF attachment length |
3-100mm |
Single section |
|
|
ACF cutting |
Half-cut |
|
|
|
Cutter adjust range |
0.01-3.5mm |
Micrometer tuning |
|
|
ACF separation |
Stripping around sports bar |
|
|
Heating& attachment Parameters |
Thermode |
≤70mm |
|
|
Temperature settings |
RT-450℃ |
Minimum setting unit: 1 ℃ |
|
|
Time settings |
1-99sec |
Minimum setting unit: 1sec |
|
|
Pressure range |
2-40kg f |
|
|
|
Precision temperature difference |
±3℃ |
|
|
|
Head flatness |
0.005mm |
Using pressure-sensitive paper test |
|
|
ACF Attachment Precision |
X: ±0.1mm Y: ±0.1mm |
|
|
|
Performance Parameters |
Equipment running time |
About 6s |
Heating time:1s, attachment length:30mm |
|
Theoretical air consumption |
About 100L/min |
|
|
|
Tune-up time |
About 30min |
|
|
|
operator |
1 person |
|
|
|
Operation Height |
750 ± 50mm |
|
|
|
Security Configuration |
Structure Security Configuration |
Falling head suddenly breathe |
|
|
Electrical Safety Configuration |
Emergency stop button |
With protective cover |
|
|
Software Security Configuration |
Interlock Program |
|
|
|
Identifies security configuration |
Anti-scald, anti-pressure warning stickers |
|
|
Machine Parameters |
Input gas source |
0.5-0.7Mpa |
¢ 10 trachea outside the machine, 3 meters long, comes with adapter |
|
Facility vacuum |
No need |
Comes with vacuum generator |
|
|
Input Power |
AC 220V ±10%, 50Hz, 5A |
Remain outside the machine power cord, long 3 Meters, comes with plug |
|
|
Size |
700*710*1400 |
L*W*H(mm) |
|
|
Weight |
About 200kgs |
|
|
|
Use Environment |
Production environment |
1000 following the clean room |
|
|
Ambient temperature |
15-35℃ |
|
|
|
Anti-static Electricity and Earthing |
The operator interface electrostatic |
Electrostatic socket holes |
1PC |
|
Machine chassis |
The left side of the ground |
1PC |
|
|
ground |
connection screw |
|
|
|
Others |
Tools |
Allen wrench |
1 Set |
|
Instruction manual |
Chinese/English |
1 |
|
|
Schematic |
|
1 |
|
|
Gas road map |
|
1 |
|
CE approval;
