Product Details:
Payment & Shipping Terms:
|
Warranty: | One Year Without Charge | Size: | 620*690*570mm |
---|---|---|---|
Max.working Area: | 200mm 260mm | Air Pressing: | 0.45-0.7Mpa |
Weight: | 95KG | Trade Term: | EXW/FOB/CIF |
Highlight: | pcb welding machine,bonding machine |

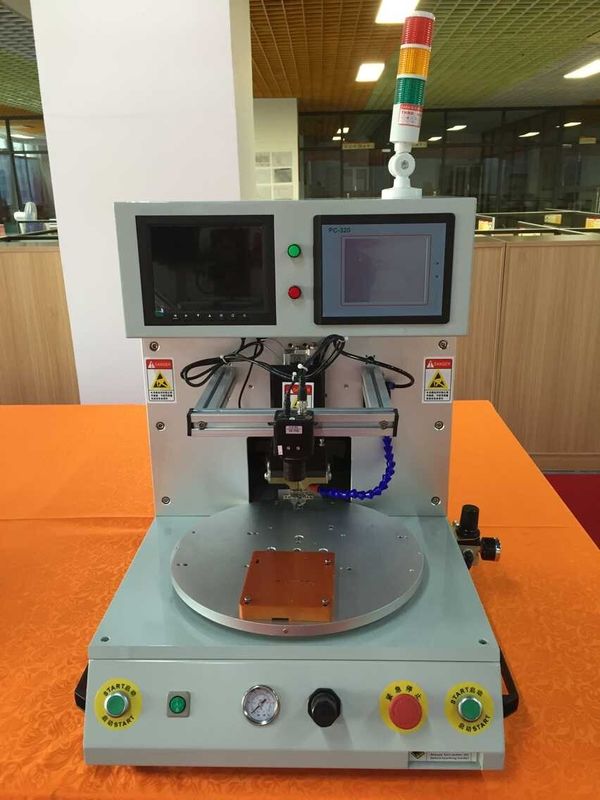

Pneumatic Hot Bar Automatic Soldering Machine Large Lcd Digital Display
Feature:
1. Extremely short cycle time with rotary table design
2. Product loading and unloading can be done during the heat
sealing process
3. High quality heat seal application up to 0.25mm pitch
4. Pneumatic bonding head provide up to 3,900N force
5. Digital programmable pressure control with LCD display
6. Closed loop PID temperature control with visible LED display
7. Bonding cycle is triggered by a real time pressure sensor
8. Floating Thermode ensure consistent pressure and heat transfer
along the flexfoil to LCD and/or PCB
9. Precision product fixtures (2X), easy exchange, provided with
micrometer alignment and vacuum to fix components
10. Optional CCD alignment module with frame, camera, lens,
monitor and illumination for fine pitch application
11. Full microprocessor logic control
Our service:
1. Engineers available to service machinery oversea
Engineers are available to be sent to freign countries to do machinery training and offer technical support.
2. Mature technique & forerunner to process makes high quality machinery
As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines.Our R&D team continuously upgrade the existing machines to meet the market development trend.
3. Effective customer service
All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers.
4. One year warranty for the machines except accessories
Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge.
Other hot sell soldering manchine
Our mission:
Ongoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success
Our Vision:
PCB industry to become the world's leading solution providers PCB separator
