Product Details:
Payment & Shipping Terms:
|
| Feature: | Has Routing Bit Life Time Checking And Alarm System To Remind Operator To Change Routing Bits When It Finish 120M Cutting. And Routing Bit First 2mm Cut The First Miling Point, Middle 2mm Cut The Second Milling Point, The Last 2mm Cut The Third Milling Poi | Overall Height Offset: | 60~110mm |
|---|---|---|---|
| Power: | 2.0KW AC380V | Overall Dimensions(W*D*H): | 1370mm*1650mm*1450mm |
| Workstation PCB Loading/unloading: | Manual | Manipulator Positioning Repeatability: | 0.001mm |
| Cutting Speed(max.): | 80mm/s | Spindle: | KAVO |
| High Light: | Customized Offline PCB Depaneling Machine,Single Platform PCB Depaneling Router Machine,Customized PCB Depaneling Router Machine |
||

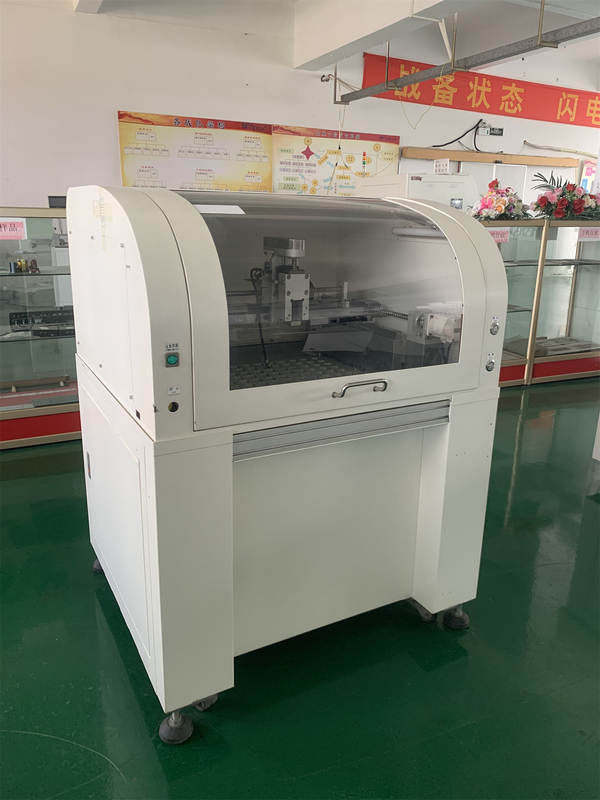

PCB Depaneling Machine is a special-purpose machine for cutting and separating printed circuit boards (PCB). With a maximum workstation size of 320*320mm, it is equipped with a routing bit that has a life time checking and alarm system to remind the operator to change the routing bit when it finishes 120M cutting. It also features a first 2mm cut the first milling point, middle 2mm cut the second milling point, and last 2mm cut the third milling point to increase its life time. Additionally, the machine offers line, arc, circular, and U-curve editing functions. It is powered by a KAVO spindle and a JiaBao series manipulator motor. PCB Depaneling Machine is also known as a printed circuit board router, a PCB milling cutter machine, and a PCB routing machine.
| Keywords | Parameters |
|---|---|
| Overall Height offset: | 60~110mm |
| Cutting Precision: | 0.1mm |
| Program edit: | Inline,offline |
| Overall Dimensions(W*D*H): | 1370mm*1650mm*1450mm |
| Feature: | Has Routing Bit Life Time Checking And Alarm System To Remind Operator To Change Routing Bits When It Finish 120M Cutting. And Routing Bit First 2mm Cut The First Miling Point, Middle 2mm Cut The Second Milling Point, The Last 2mm Cut The Third Milling Point To Increase Its Life Time. |
| Workstation PCB loading/unloading: | Manual |
| Positioning Accuracy: | 0.01mm |
| Name: | PCB Depaneling Machine,PCB Depaneling Router,PCB Depaneling Router Machine,PCB Router,PCB CNC Router |
| Function edit: | Line,arc,circula,U-curve |
| Manipulator Positioning repeatability: | 0.001mm |
ChuangWei's PCB Depaneling Router Machine is a valuable solution for your PCB depaneling and milling cutter needs. With its CE certification, it is guaranteed to provide reliable performance for a minimum order quantity of 1 set. It is available at a negotiable price and can be shipped in a plywood case within 7 days upon payment via T/T. It has a supply capacity of 20 sets per month. With a manipulator axis working area of 830mm*580mm*50mm, it is equipped with a KAVO spindle for a longer service life. It is designed with a routing bit life time checking and alarm system to remind the operator to change the routing bit when it finishes 120m cutting. The routing bit first 2mm cut the first milling point, middle 2mm cut the second milling point, and the last 2mm cut the third milling point to increase its life time. It is capable of handling PCBs with a thickness of 0.3-3.5mm and can be used to cut lines, arcs, circles, and U-curves.
Brand Name: ChuangWei
Place of Origin: China
Certification: CE
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood case
Delivery Time: 7 days
Payment Terms: T/T
Supply Ability: 20 sets per month
Function: Line, Arc, Circula, U-curve
Cutting Precision: 0.1mm
Overall Dimensions(W*D*H): 1370mm*1650mm*1450mm
Program: Inline, Offline
Power: 2.0KW AC380V
ChuangWei CNC Router Machine is specialized for PCB Milling Cutter Machine and PCB Depaneling Machine. The cutting precision of this machine is up to 0.1mm. The overall dimensions of this machine is 1370mm*1650mm*1450mm, and it is powered by 2.0KW AC380V. This machine is with CE certification and able to be delivered within 7 days. It is also available for custom orders with a minimum order quantity of 1 set.
The PCB Depaneling Machine is packaged with the utmost care to ensure that it arrives to you in perfect condition. Each unit is placed in a custom-built box and sealed with packing foam to ensure that the machine is not shaken or damaged during shipping.
The box is labeled with the model number, serial number, and other important information. We use a variety of shipping methods, from standard ground shipping to more complex air freight services.
We take every measure to ensure that the PCB Depaneling Machine is delivered to you safely and securely. We use all the necessary precautions to make sure your machine arrives in perfect working condition.
