Product Details:
Payment & Shipping Terms:
|
| Overall Weight: | 650KG | PCB Thickness: | 0.3-3.5mm |
|---|---|---|---|
| Cutting Precision: | 0.1mm | Power: | 2.0KW AC380V |
| Overall Dimensions(W*D*H): | 1370mm*1650mm*1450mm | Workstation PCB Fixation: | Standard,specialization |
| Workstation PCB Loading/unloading: | Manual | Manipulator Positioning Repeatability: | 0.001mm |
| High Light: | Offline PCB Milling Cutter Machine,CE PCB Milling Cutter Machine,PCB Depaneling Machine With Routing Checking |
||

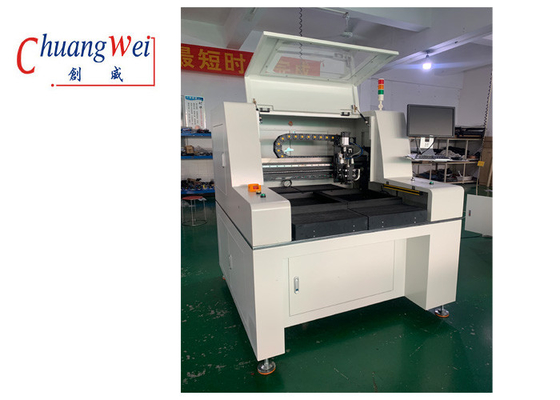

The PCB Depaneling Machine is an efficient and precise tool for routing and depaneling printed circuit boards (PCBs). This machine is equipped with a KAVO spindle that is capable of achieving a cutting precision of 0.1mm with a maximum workstation PCB thickness of 5mm. It also features an 830mm*580mm*50mm manipulator axis working area, delivering a powerful 2.0KW AC380V power for routing and depaneling PCBs. The PCB Depaneling Router Machine is ideal for both small and large scale PCB Router operations due to its unique features and precise cutting capabilities. It is an ideal solution for many PCB Milling Cutter Machine needs and can be easily adjusted to meet specific routing and depaneling requirements.
| Parameter | Specification |
|---|---|
| Cutting speed(max.) | 80mm/s |
| Positioning Accuracy | 0.01mm |
| Manipulator Axis working area(max.) | 830mm*580mm*50mm |
| Overall Height offset | 60~110mm |
| Manipulator Positioning repeatability | 0.001mm |
| Workstation PCB size (max.) | 320*320mm |
| Spindle | KAVO |
| Feature | Has Routing Bit Life Time Checking And Alarm System To Remind Operator To Change Routing Bits When It Finish 120M Cutting. And Routing Bit First 2mm Cut The First Miling Point, Middle 2mm Cut The Second Milling Point, The Last 2mm Cut The Third Milling Point To Increase Its Life Time. |
| Workstation PCB loading/unloading | Manual |
| Overall Weight | 650KG |
ChuangWei's PCB Depaneling Router Machine offers superior quality with its CE certification. It can be ordered in minimum quantity of 1 set, with the price being negotiable. The packaging details are also provided with plywood case for a secure delivery. The delivery time is only 7 days, and payment terms include T/T. With supply ability of 20 sets per month, it is an ideal machine for various needs. The program edit can be done both in inline and offline mode. The Manipulator Positioning repeatability is 0.001mm, and Manipulator Motor type is JiaBao Series. It can cut PCB thickness between 0.3-3.5mm. All in all, ChuangWei's PCB Depaneling Router Machine is the perfect choice for your PCB depaneling needs.
We are professional in providing PCB Depaneling Machine customized service. Our product brand name is ChuangWei, which is from China. All of our products have CE certification, and the minimum order quantity is 1 set. The price is negotiable and the packaging details is plywood case. The delivery time is 7 days, and we accept T/T payment terms. The supply ability is 20 sets per month. The workstation PCB thick (max) is 5mm, and the manipulator motor type is JiaBao Series. The overall height offset is 60~110mm, and the function edit is line, arc, circula, U-curve. This product has routing bit life time checking and alarm system to remind operator to change routing bits when it finish 120M cutting. And routing bit first 2mm cut the first miling point, middle 2mm cut the second milling point, the last 2mm cut the third milling point to increase its life time.
We focus on providing PCB Depaneling Machine, Printed Circuit Board Router, PCB Depaneling Router Machine, PCB Depaneling Saw Machine.
Packaging and Shipping of PCB Depaneling Machine:
The PCB Depaneling Machine is securely packed in a cardboard box, lined with Styrofoam and a plastic bag to protect it from moisture and dust. The box is sealed with adhesive tape. Extra care is taken to ensure that the product is safe during the delivery process.
The PCB Depaneling Machine is shipped using a reliable carrier service. The delivery time is usually within 3-5 working days. The package can be tracked online using the tracking number provided by the carrier.
