Product Details:
Payment & Shipping Terms:
|
| Manipulator Axis Working Area(max): | 830mm*580mm*50mm | Feature: | Has Routing Bit Life Time Checking And Alarm System To Remind Operator To Change Routing Bits When It Finish 120M Cutting. And Routing Bit First 2mm Cut The First Miling Point, Middle 2mm Cut The Second Milling Point, The Last 2mm Cut The Third Milling Poi |
|---|---|---|---|
| Manipulator Positioning Repeatability: | 0.001mm | Workstation PCB Thick (max): | 5mm |
| Manipulator Motor Type: | JiaBao Series | Overall Height Offset: | 60~110mm |
| Name: | PCB Depaneling Machine,PCB Depaneling Router,PCB Depaneling Router Machine,PCB Router,PCB CNC Router | Overall Dimensions(W*D*H): | 1370mm*1650mm*1450mm |
| High Light: | 0.1mm Precision PCB Depaneling Router,Alarm System PCB Depanelizer,5mm Thick PCB Depanelizer |
||

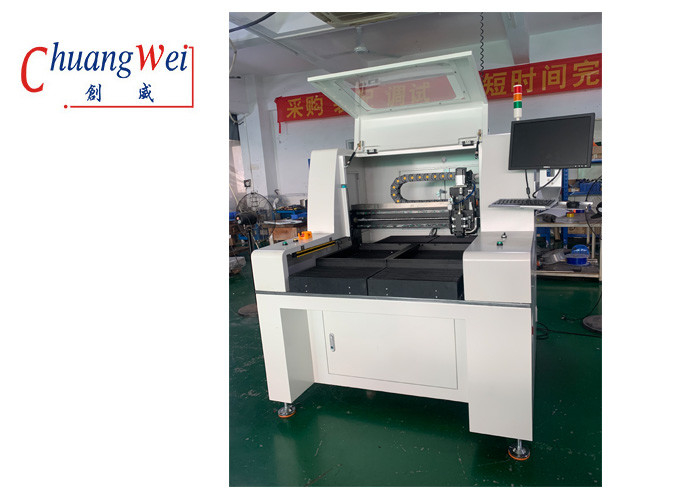

PCB Depaneling Machine is a high-performance Printed Circuit Board Router specially designed for the depaneling of PCBs. It can be used to cut PCBs with lines, arcs, circles and U-curves. With KAVO spindle, the cutting speed can reach up to 80mm/s and the positioning accuracy is within 0.01mm. The working area of the manipulator axis is 830mm*580mm*50mm, which can meet the needs of most PCB depaneling applications.
| Name | Parameter |
|---|---|
| Cutting speed(max.) | 80mm/s |
| Spindle | KAVO |
| Manipulator Positioning repeatability | 0.001mm |
| Overall Dimensions(W*D*H) | 1370mm*1650mm*1450mm |
| Name | PCB Depaneling Machine,PCB Depaneling Router,PCB Depaneling Router Machine,PCB Router,PCB CNC Router |
| Workstation PCB thick (max) | 5mm |
| Power | 2.0KW AC380V |
| Overall Weight | 650KG |
| Workstation PCB fixation | Standard,specialization |
| PCB Thickness | 0.3-3.5mm |
| Printed Circuit Board Router | Yes |
| PCB Milling Cutter Machine | Yes |
| Printed Circuit Board Router Machine | Yes |
The ChuangWei PCB Depaneling Machine is an essential part of any electronics assembly and manufacturing process, offering a reliable and precise way to depanelize printed circuit boards (PCBs). It is certified by CE and has a minimum order quantity of one set. The price is negotiable and it is packaged in a plywood case. The delivery time is seven days and payment terms are T/T. The supply ability is 20 sets per month. It is designed for maximum workstation PCB thickness of 5mm and cutting precision of 0.1mm. The workstation PCB loading and unloading is manual with cutting speed of up to 80mm/s. The overall height offset adjusts from 60 to 110mm. In addition, this PCB Depaneling Router Machine and PCB Milling Cutter Machine is ideal for quickly and accurately depanelizing PCBs.
ChuangWei PCB Depaneling Machine is a high-quality model that can provide precise and efficient PCB depaneling. It is certified by CE and has a minimum order quantity of 1 set. It comes with a routing bit life time checking and alarm system to remind the operator to change the routing bits when it finishes 120m cutting. It also has a special feature of routing bit first 2mm cutting the first milling point, middle 2mm cutting the second milling point, and the last 2mm cutting the third milling point to increase its life time. The workstation PCB loading/unloading is manual with overall dimensions (W*D*H) of 1370mm*1650mm*1450mm and power of 2.0KW AC380V. The manipulator motor type is JiaBao Series.
PCB Depaneling Machine is shipped in a cardboard box with a foam insert to keep the machine and its components safe during transport.
The box is then sealed with tape to ensure the safety of the machine during shipping. The box is then labeled with the product name, address, and shipping date.
Once the box is sealed, it is ready to be shipped to its destination.
