Product Details:
Payment & Shipping Terms:
|
| Manipulator Positioning Repeatability: | 0.001mm | Spindle: | KAVO |
|---|---|---|---|
| Overall Weight: | 650KG | Workstation PCB Size (max): | 320*320mm |
| Overall Height Offset: | 60~110mm | Manipulator Axis Working Area(max): | 830mm*580mm*50mm |
| Cutting Speed(max.): | 80mm/s | Manipulator Motor Type: | JiaBao Series |
| High Light: | Offline PCB Depaneling Machine,320*320mm Max PCB Depaneling Machine,PCB Depaneling Machine OEM |
||

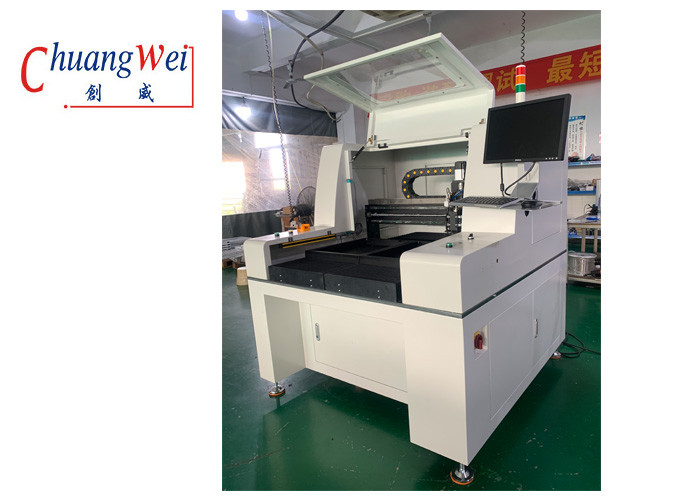

PCB Depaneling Machine is a kind of professional Printed Circuit Board Router used for PCB cutting and milling. It is designed with Overall Dimensions(W*D*H): 1370mm*1650mm*1450mm and provides high Positioning Accuracy of 0.01mm. The Manipulator Axis working area(max) is 830mm*580mm*50mm, and it can perform functions like line, arc, circula, U-curve cutting with a Precision of 0.1mm. This PCB Milling Cutter Machine is widely used in various industries, such as electronics, aerospace, automotive, communication, consumer products, etc.
| Parameter | Value |
|---|---|
| Workstation PCB loading/unloading | Manual |
| Positioning Accuracy | 0.01mm |
| Program edit | Inline,offline |
| Spindle | KAVO |
| Function edit | Line,arc,circula,U-curve |
| Name | PCB Depaneling Machine,PCB Depaneling Router,PCB Depaneling Router Machine,PCB Router,PCB CNC Router |
| Feature | Has Routing Bit Life Time Checking And Alarm System To Remind Operator To Change Routing Bits When It Finish 120M Cutting. And Routing Bit First 2mm Cut The First Miling Point, Middle 2mm Cut The Second Milling Point, The Last 2mm Cut The Third Milling Point To Increase Its Life Time. |
| Manipulator Motor type | JiaBao Series |
| Workstation PCB fixation | Standard,specialization |
| Overall Weight | 650KG |
ChuangWei's PCB Depaneling Router Machine is certified by CE and is known for its reliable performance. With a minimum order quantity of 1 Set and a price that is negotiable, this printed circuit board router machine is a great choice for those looking for a cost-effective and efficient way to depanel their boards. It comes with packaging details of a plywood case, and delivery time of 7 days. Payment terms are T/T, and the supply ability is 20 sets per month. This printed circuit board router machine has excellent positioning accuracy of 0.01mm and a maximum workstation PCB size of 320*320mm. It also offers customization in terms of workstation PCB fixation and a maximum workstation PCB thick of 5mm. The loading and unloading of the workstation PCB is manual.
The PCB Depaneling Router Machine from ChuangWei is a great choice for those looking for a reliable and cost-effective way to depanel their boards. With excellent positioning accuracy and a wide range of customization options, this printed circuit board router machine is a must-have for any PCB depaneling job. Give your PCB depaneling job the best possible outcome with ChuangWei's PCB Depaneling Router Machine!
PCB Depaneling Machine
ChuangWei PCB Depaneling Machine is a kind of PCB CNC Router Machine with Routing Bit, which has high-precision Positioning Accuracy and powerful Function edit to meet your needs. With Routing Bit Life Time Checking and Alarm System, it is durable and reliable. Don't hesitate to contact us for more details.
PCB Depaneling Machine Packaging and Shipping:
The PCB Depaneling Machine is packaged with hard cardboard boxes and secured with bubble wrap. The product is then shipped to the customer using a secure and reliable shipping service.
