Product Details:
Payment & Shipping Terms:
|
| Workstation PCB Thick (max): | 5mm | Function Edit: | Line,arc,circula,U-curve |
|---|---|---|---|
| Program Edit: | Inline,offline | Workstation PCB Size (max): | 320*320mm |
| Cutting Precision: | 0.1mm | Cutting Speed(max.): | 80mm/s |
| Power: | 2.0KW AC380V | Spindle: | KAVO |
| High Light: | AC380V PCB Depaneling Machine,320*320mm Workstation PCB Depaneling Machine,ODM PCB Depaneling Machine |
||

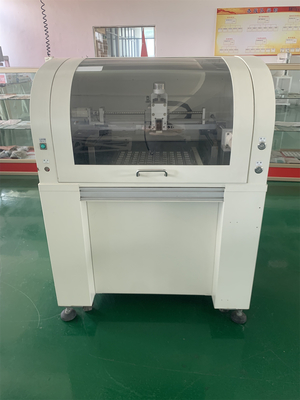

PCB Depaneling Machine is a kind of CNC router machine specially designed for Printed Circuit Board (PCB) routing. It is featured with 0.3-3.5mm PCB thickness, 830mm*580mm*50mm manipulator axis working area, 0.1mm cutting precision, line, arc, circular and U-curve function edit and 60~110mm overall height offset. It is an ideal solution for complex PCB routing requirements. With user-friendly operation interface, this PCB router machine features high accuracy and efficiency for routing PCBs. It is widely used in PCB manufacturing and prototyping. It is an indispensable piece of equipment for any Printed Circuit Board (PCB) routing job.
| Name | Feature |
|---|---|
| PCB Depaneling Machine,PCB Depaneling Router,PCB Depaneling Router Machine,PCB Router,PCB CNC Router | Has Routing Bit Life Time Checking And Alarm System To Remind Operator To Change Routing Bits When It Finish 120M Cutting. And Routing Bit First 2mm Cut The First Miling Point, Middle 2mm Cut The Second Milling Point, The Last 2mm Cut The Third Milling Point To Increase Its Life Time. |
| Spindle | Workstation PCB fixation |
| KAVO | Standard,specialization |
| Cutting speed(max.) | Workstation PCB thick (max) |
| 80mm/s | 5mm |
| Overall Dimensions(W*D*H) | Overall Weight |
| 1370mm*1650mm*1450mm | 650KG |
| Workstation PCB loading/unloading | Cutting Precision |
| Manual | 0.1mm |
ChuangWei is a professional manufacturer of PCB Depaneling Machine, which is certified by CE and comes from China. This machine features a manual PCB loading/unloading workstation, with the maximum PCB thick of 5mm, and the PCB fixation being either standard or specialized. It also has an alarm system to remind the operator to change the routing bits when it has finished 120m of cutting, and the first 2mm of the routing bit cutting the first milling point, the middle 2mm cutting the second milling point, and the last 2mm cutting the third milling point, in order to increase the lifetime of the bits. The overall dimensions of the machine is 1370mm*1650mm*1450mm, and the minimum order quantity is 1 set, with the price being negotiable. With the packaging details being plywood case and the delivery time being 7 days, as well as the payment terms being T/T and the supply ability being 20 sets per month, the ChuangWei PCB Depaneling Machine is a great choice for PCB milling cutter machine, PCB router machine and other PCB router machine applications.
Brand Name: ChuangWei
Place of Origin: China
Certification: CE
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 7 days
Payment Terms: T/T
Supply Ability: 20 sets per month
Cutting speed(max.): 80mm/s
Overall Height offset: 60~110mm
Function edit: Line,arc,circula,U-curve
Positioning Accuracy: 0.01mm
Workstation PCB fixation: Standard,specialization
ChuangWei PCB Depaneling Machine is a high-precision Printed Circuit Board Router which is designed to meet the needs of the market. It is featured with a cutting speed of up to 80mm/s, an overall height offset of 60~110mm, and positioning accuracy of 0.01mm. It supports line,arc,circular and U-curve function edit. The workstation PCB fixation can be customized as standard or specialization. The minimum order quantity is 1 set and the price is negotiable. It is certified by CE and the delivery time is 7 days. The packaging details are plywood case and the supply ability is 20 sets per month. The payment terms are T/T.
The PCB Depaneling Machine is securely packaged with foam, plastic wrap, and cardboard to ensure its safety during transit. A robust carton box is used for packaging the PCB Depaneling Machine. The carton box is sealed with adhesive tapes. It is labeled for easy identification of the product.
The PCB Depaneling Machine is shipped via a reliable courier service such as DHL, FedEx, or UPS. The tracking number is provided to the customer so that they can track the delivery status. The machine typically takes 1-2 weeks to be delivered to the customer.
