Product Details:
Payment & Shipping Terms:
|
| Overall Weight: | 650KG | Overall Height Offset: | 60~110mm |
|---|---|---|---|
| Cutting Speed(max.): | 80mm/s | Workstation PCB Fixation: | Standard,specialization |
| Positioning Accuracy: | 0.01mm | Power: | 2.0KW AC380V |
| Function Edit: | Line,arc,circula,U-curve | Name: | PCB Depaneling Machine,PCB Depaneling Router,PCB Depaneling Router Machine,PCB Router,PCB CNC Router |
| High Light: | 5mm Thick PCB Depaneling Machine,Standard Workstation PCB Depaneling Machine |
||

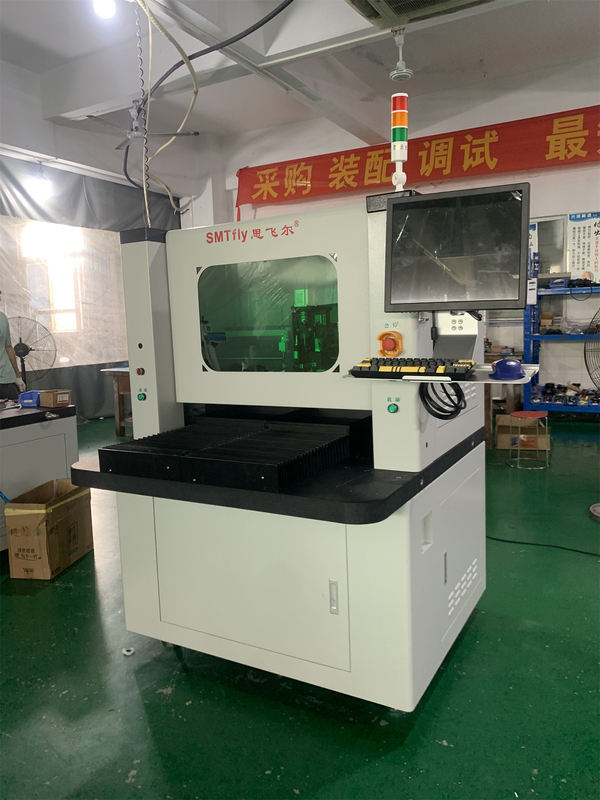

The PCB Depaneling Machine is a professional cutting solution for dividing PCB into individual boards. It is a precision machine with a Manipulator Axis working area of 830mm*580mm*50mm, Power of 2.0KW AC380V, Positioning Accuracy of 0.01mm, and a Workstation PCB size (max) of 320*320mm. The PCB Depaneling Machine is also known as a PCB Depaneling Router, PCB Depaneling Router Machine, PCB Router, or PCB CNC Router.
This machine is designed to quickly and accurately depanel pre-cut PCBs at an industry-leading speed. The PCB Depaneling Machine is equipped with a high-speed spindle motor that can easily cut through most PCB materials, providing a perfect edge finish to the PCB. It also offers a wide range of features, including adjustable feed rates, adjustable cutting depths, and a wide range of tooling options.
This machine is extremely reliable and user-friendly, making it ideal for PCB depaneling applications. The precise cutting and positioning accuracy of the PCB Depaneling Machine ensures that the cut will be perfect every time, and it is also a cost-effective solution for depaneling PCBs. With its robust construction and high-quality components, the PCB Depaneling Machine is the perfect choice for any PCB depaneling application.
| Name | Features |
|---|---|
| PCB Depaneling Machine | Power: 2.0KW AC380V Overall Height offset: 60~110mm Feature: Has Routing Bit Life Time Checking And Alarm System To Remind Operator To Change Routing Bits When It Finish 120M Cutting. And Routing Bit First 2mm Cut The First Miling Point, Middle 2mm Cut The Second Milling Point, The Last 2mm Cut The Third Milling Point To Increase Its Life Time. Function edit: Line,arc,circula,U-curve Spindle: KAVO Workstation PCB fixation: Standard,specialization cutting Precision: 0.1mm Workstation PCB loading/unloading: Manual Program edit: Inline,offline |
| PCB Router Machine | Power: 2.0KW AC380V Overall Height offset: 60~110mm Feature: Has Routing Bit Life Time Checking And Alarm System To Remind Operator To Change Routing Bits When It Finish 120M Cutting. And Routing Bit First 2mm Cut The First Miling Point, Middle 2mm Cut The Second Milling Point, The Last 2mm Cut The Third Milling Point To Increase Its Life Time. Function edit: Line,arc,circula,U-curve Spindle: KAVO Workstation PCB fixation: Standard,specialization cutting Precision: 0.1mm Workstation PCB loading/unloading: Manual Program edit: Inline,offline |
| PCB Depaneling Router Machine | Power: 2.0KW AC380V Overall Height offset: 60~110mm Feature: Has Routing Bit Life Time Checking And Alarm System To Remind Operator To Change Routing Bits When It Finish 120M Cutting. And Routing Bit First 2mm Cut The First Miling Point, Middle 2mm Cut The Second Milling Point, The Last 2mm Cut The Third Milling Point To Increase Its Life Time. Function edit: Line,arc,circula,U-curve Spindle: KAVO Workstation PCB fixation: Standard,specialization cutting Precision: 0.1mm Workstation PCB loading/unloading: Manual Program edit: Inline,offline |
| PCB Depaneling Router | Power: 2.0KW AC380V Overall Height offset: 60~110mm Feature: Has Routing Bit Life Time Checking And Alarm System To Remind Operator To Change Routing Bits When It Finish 120M Cutting. And Routing Bit First 2mm Cut The First Miling Point, Middle 2mm Cut The Second Milling Point, The Last 2mm Cut The Third Milling Point To Increase Its Life Time. Function edit: Line,arc,circula,U-curve Spindle: KAVO Workstation PCB fixation: Standard,specialization cutting Precision: 0.1mm Workstation PCB loading/unloading: Manual Program edit: Inline,offline |
| PCB CNC Router | Power: 2.0KW AC380V Overall Height offset: 60~110mm Feature: Has Routing Bit Life Time Checking And Alarm System To Remind Operator To Change Routing Bits When It Finish 120M Cutting. And Routing Bit First 2mm Cut The First Miling Point, Middle 2mm Cut The Second Milling Point, The Last 2mm Cut The Third Milling Point To Increase Its Life Time. Function edit: Line,arc,circula,U-curve Spindle: KAVO Workstation PCB fixation: Standard,specialization cutting Precision: 0.1mm Workstation PCB loading/unloading: Manual Program edit: Inline,offline |
ChuangWei PCB Depaneling Machine is a Chinese-made printed circuit board router, which is certified by CE and has a minimum order quantity of one set. It is equipped with a powerful JiaBao series motor manipulator, with a cutting speed of up to 4000mm/min and can cut up to 120m in one session. Its overall dimensions are 1370mm*1650mm*1450mm, and it comes with a plywood case for packaging.
The machine is designed with a routing bit life time checking and alarm system to remind the operator to change routing bits when it finishes cutting. It also has a unique milling point cutting system, with the first 2mm cutting the first milling point, middle 2mm cutting the second milling point, and the last 2mm cutting the third milling point, greatly increasing its life time. It has both standard and specialized PCB fixation workstations for loading and unloading.
The machine is perfect for milling and routing of PCBs. It is reliable, easy to operate and comes with a competitive price. With a supply ability of 20 sets per month and a delivery time of 7 days, ChuangWei PCB Depaneling Machine will be a great choice for your PCB milling and routing needs.
Brand Name: ChuangWei
Place of Origin: China
Certification: CE
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood case
Delivery Time: 7 days
Payment Terms: T/T
Supply Ability: 20 sets per month
Feature: Has Routing Bit Life Time Checking And Alarm System To Remind Operator To Change Routing Bits When It Finish 120M Cutting. And Routing Bit First 2mm Cut The First Miling Point, Middle 2mm Cut The Second Milling Point, The Last 2mm Cut The Third Milling Point To Increase Its Life Time.
Overall Height offset: 60~110mm
Workstation PCB fixation: Standard,specialization
Workstation PCB loading/unloading: Manual
Workstation PCB thick (max): 5mm
ChuangWei's PCB Depaneling Machine is a CNC Router that can be used for PCB Milling and Cutting. It has an alarm system to remind the operator to change the routing bits when it finishes 120m cutting as well as a routing bit that cuts the first milling point with 2mm, the second milling point with 2mm, and the third milling point with 2mm to increase its lifetime. The maximum workstation PCB thickness is 5mm.
The PCB Depaneling Machine is packaged in a robust box to ensure that the product remains safe during shipping. The box is large enough to fit the machine and any accessories that may accompany it. The box also includes foam padding to protect the machine and accessories from any impacts that may occur during shipping. The box is labeled with the product name and a shipping label with the destination and sender’s address.
The machine is then loaded on the shipping vehicle and is taken to its destination. The shipping company is responsible for ensuring that the product is delivered safely and on time.
