Product Details:
Payment & Shipping Terms:
|
| Cutting Speed(max.): | 80mm/s | Manipulator Axis Working Area(max): | 830mm*580mm*50mm |
|---|---|---|---|
| Manipulator Positioning Repeatability: | 0.001mm | Workstation PCB Size (max): | 320*320mm |
| Function Edit: | Line,arc,circula,U-curve | PCB Thickness: | 0.3-3.5mm |
| Program Edit: | Inline,offline | Overall Height Offset: | 60~110mm |
| High Light: | Manual Offline PCB Depaneling Machine,U-Curve Offline PCB Depaneling Machine,Arc Curve Offline PCB Depaneling Machine |
||

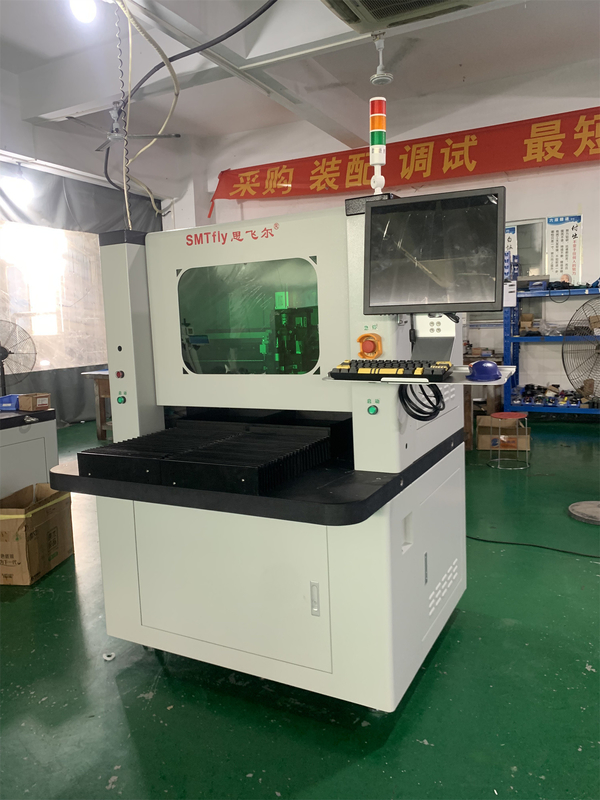

PCB Depaneling Machine is a reliable and cost-effective machine for precisely separating printed circuit boards (PCBs). It is equipped with a manipulator axis working area up to 830mm*580mm*50mm, and a workstation with a maximum PCB size of 320*320mm. PCB loading/unloading is manual, and the machine is powered by a 2.0KW AC380V motor with a positioning accuracy of 0.01mm. It is an ideal choice for PCB depaneling and routing applications, such as printed circuit board routers, PCB milling cutter machines, and more.
| Name | Parameters |
|---|---|
| PCB Depaneling Machine | Cutting speed(max.): 80mm/s |
| PCB Depaneling Router | Workstation PCB thick (max): 5mm |
| PCB Depaneling Router Machine | Workstation PCB size (max): 320*320mm |
| PCB Router | Function edit: Line,arc,circula,U-curve |
| PCB CNC Router | Overall Height offset: 60~110mm |
| PCB Milling Cutter Machine | Spindle: KAVO |
| PCB Depaneling Router Machine | Feature: Has Routing Bit Life Time Checking And Alarm System To Remind Operator To Change Routing Bits When It Finish 120M Cutting. And Routing Bit First 2mm Cut The First Miling Point, Middle 2mm Cut The Second Milling Point, The Last 2mm Cut The Third Milling Point To Increase Its Life Time. |
| PCB Depaneling Machine | Overall Weight: 650KG |
| PCB Router | cutting Precision: 0.1mm |
ChuangWei is a reliable and professional provider of PCB Depaneling Machines. Our PCB Depaneling Machine is CE certified, and has a minimum order quantity of one set. The price of the PCB Depaneling Machine is negotiable and packaging is provided in plywood cases. The delivery time of the PCB Depaneling Machine is 7 days, and payment terms are T/T. The supply ability of the PCB Depaneling Machine is 20 sets per month. The cutting precision of the PCB Depaneling Machine is 0.1mm, and the program edit of the PCB Depaneling Machine can be both inline and offline. The manipulator motor type of the PCB Depaneling Machine is JiaBao Series, and the manipulator axis working area (max) is 830mm*580mm*50mm. The overall dimension (W*D*H) of the PCB Depaneling Machine is 1370mm*1650mm*1450mm.
The PCB Depaneling Machine is ideal for those in the PCB CNC Router and PCB CNC Router Machine industry. The high precision cutting of the PCB Depaneling Machine ensures that the parts are cut accurately, while the offline and inline program edit of the PCB Depaneling Machine enables users to conveniently edit cutting patterns. The high speed of the PCB Depaneling Machine makes it a perfect choice for large scale production, while the robust and durable design of the PCB Depaneling Machine ensures that it can withstand tough work environments. Last but not least, the reasonable price of the PCB Depaneling Machine makes it cost effective for users.
In conclusion, ChuangWei’s PCB Depaneling Machine is an ideal choice for those in the PCB CNC Router and PCB CNC Router Machine industry. With its high precision cutting, offline and inline program edit, high speed, robust and durable design, as well as reasonable price, the PCB Depaneling Machine is an excellent choice for those who need to produce large scale products.
ChuangWei's PCB Depaneling Machine is a printed circuit board router machine that is suitable for depaneling of printed circuit boards. It has a cutting precision of 0.1mm and a maximum cutting speed of 80mm/s. This machine is CE certified and is available in a minimum order quantity of 1 set. The price is negotiable and the packaging is plywood case. Delivery time is 7 days with a supply ability of 20 sets per month. It has manual workstation PCB loading/unloading and function edit options like Line,arc,circula,U-curve. Payment terms are T/T.
The PCB Depaneling Machine will be securely packaged and shipped to the customer in a sturdy cardboard box. Inside the box, the PCB Depaneling Machine will be protected with foam and bubble wrap to ensure it arrives undamaged. The box will be labeled with the name of the product, the customer's address, and the shipping carrier's tracking number.
The PCB Depaneling Machine will be shipped via a reliable shipping carrier with delivery confirmation. The customer will receive a tracking number after the product has been shipped, which they can use to track the progress of their order.
