Product Details:
Payment & Shipping Terms:
|
| Workstation PCB Thick (max): | 5mm | Manipulator Axis Working Area(max): | 830mm*580mm*50mm |
|---|---|---|---|
| Cutting Precision: | 0.1mm | Overall Weight: | 650KG |
| Cutting Speed(max.): | 80mm/s | Power: | 2.0KW AC380V |
| Workstation PCB Loading/unloading: | Manual | Program Edit: | Inline,offline |
| High Light: | KAVO Spindle PCB Depaneling Machine,offline PCB Depaneling Machine with Manipulator,320*320mm offline PCB Depaneling Machine |
||

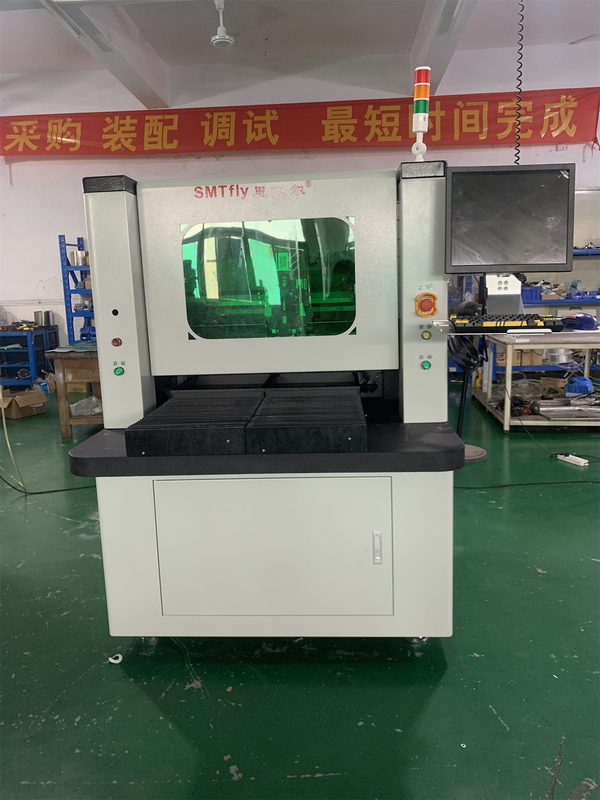

PCB Depaneling Machine, also known as PCB Depaneling Router, PCB Depaneling Router Machine, PCB Router, and PCB CNC Router, is a powerful machine that is capable of cutting and milling printed circuit boards (PCB) for various applications. With a power of 2.0KW AC380V and a Manipulator Motor type of JiaBao Series and a Spindle of KAVO, it is a versatile machine for any PCB production. It also has a special feature - a Routing Bit Life Time Checking and Alarm System - which reminds the operator to change the routing bits when it finishes 120M cutting. It also has a special cutting procedure - the first 2mm of the routing bit cuts the first milling point, the middle 2mm of the routing bit cuts the second milling point, and the last 2mm of the routing bit cuts the third milling point, lengthening its life time. This PCB Depaneling Machine is perfect for any PCB production process.
| Parameter | Value |
|---|---|
| Name | PCB Depaneling Machine, PCB Depaneling Router, PCB Depaneling Router Machine, PCB Router, PCB CNC Router |
| Positioning Accuracy | 0.01mm |
| Manipulator Motor Type | JiaBao Series |
| Manipulator Positioning Repeatability | 0.001mm |
| Overall Dimensions (W*D*H) | 1370mm*1650mm*1450mm |
| Cutting Precision | 0.1mm |
| Spindle | KAVO |
| Manipulator Axis Working Area (Max) | 830mm*580mm*50mm |
| Power | 2.0KW AC380V |
| PCB Thickness | 0.3-3.5mm |
ChuangWei's PCB Depaneling Machine is a great solution for PCB manufacturers, due to its high-precision cutting and routing capabilities. It has an automatic routing bit life time checking and alarm system that can remind operators to change routing bits when it finishes cutting 120M. Its routing bit is specifically designed to cut the first milling point with its first 2mm, the second milling point with its middle 2mm and its last 2mm to cut the third milling point, thus increasing its life time. With a cutting precision of 0.1mm and a maximum cutting speed of 80mm/s, it can handle PCB sizes up to 320*320mm. Its power is 2.0KW AC380V, and it is certified with CE.
ChuangWei's PCB Depaneling Machine is perfect for PCB manufacturers looking for an efficient and reliable CNC Router Machine. It is easy to install and use, and it has a minimum order quantity of 1 set. The packaging details are plywood case, and the delivery time is 7 days. Payment terms are T/T, and the supply ability is 20 sets per month. The price of this PCB Depaneling Router Machine is negotiable.
Packaging and Shipping of PCB Depaneling Machine
The PCB Depaneling Machine is securely packaged in a reusable container that is designed to protect the product during shipping. The container is constructed of strong, durable materials that can withstand the rigors of international shipping. The container is also designed to make it easy to unpack, store, and repack the product.
The packaging also includes foam inserts that are custom-cut to the shape of the product and provide additional protection. The foam inserts are also designed to protect the product from any shock or vibration during shipping.
The product is then shipped using reliable, secure methods. The package is tracked and monitored throughout the shipping process to ensure that the product arrives safely and in perfect condition.
